RED Digital Cinema LCD Monitor Specifications

  • Material

    Aluminum Alloy

  • Resolution

    1920 x 1200

  • Pixel Density

    323 pixels per inch (ppi)

  • Refresh Rate

    60Hz

  • Response Time

    30ms (black to white)

  • Contrast

    1200:1

  • Brightness

    2200 cd/m2

  • Color Depth

    8-bit RGB, 4:4:4 progressive scan (16.7 million colors)

  • Colors

    83% NTSC

  • Viewing Angle

    +/- 85 deg. all axes

  • Display Orientation

    Landscape, 180 deg. rotation

  • Touch

    Projected Capacitive (PCAP), multi-touch

  • Brain Connection

    Power and Communication via LCD/EVF cable

  • Mounting

    23x 1/4-20 mounting points
    2x 3/8-16 mounting points

  • Hood Mounting

    M3x0.5 x 5mm (max depth)

  • Buttons

    Up, Down, User 1, User 2

  • Power Consumption

    6.1W at full 2200 nits brightness

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Firmware Requirement

    Compatible with DSMC2 firmware v7.2.0 or later

  • Dimensions (HxWxD)

    5.70 x 7.70 x 1.40" (14.48 x 19.56 x 3.56cm)

  • Weight

    1.45 lbs (0.66kg)

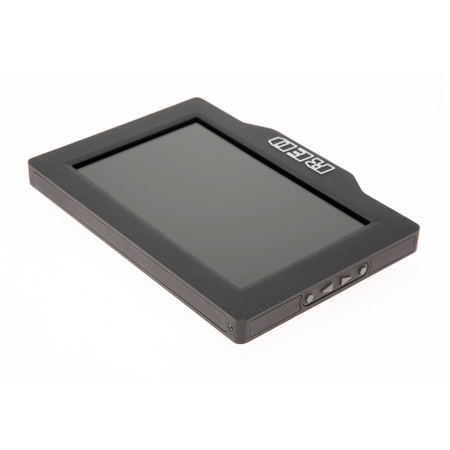

About RED 7" Touchscreen Ultra-Brite LCD Monitor - Mfr# 730-0026 SKU#1591127

Are you a filmmaker or videographer in search of a high-quality, durable, and portable touchscreen monitor for your DSMC2 camera Look no further than the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor. This versatile and easy-to-use device offers a superior high-definition viewing experience, even in direct sunlight, making it an ideal companion for outdoor shoots.

With a high resolution of 1920 x 1200, this monitor displays more detail and provides a clearer image than many alternatives on the market. Its display panel boasts 2200 nits of brightness, overcoming viewing difficulties in bright outdoor environments. The wide color gamut display enhances color accuracy, ensuring your footage looks as true-to-life as possible.

The DSMC2 Touch 7.0" Ultra-Brite LCD Monitor stands out with its high pixel density of 323 ppi and a 1200:1 contrast ratio, both of which contribute to delivering exceptional image quality. The robust, optically-bonded touchscreen is fortified with Gorilla Glass, offering the most intuitive way to navigate menus, adjust camera parameters, and review your .R3D clips directly out of the camera.

Designed for convenience, this lightweight display easily mounts to your BRAIN or any other 1/4-20 mounting surface. It also features a LEMO connection for seamless integration with your camera. This monitor is an excellent choice for use with gimbals, cranes, and remote viewing, providing flexibility and adaptability in various shooting scenarios.

For ergonomic monitoring solutions on the move, consider pairing the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor with a DSMC2 LEMO Adaptor A for convenient mounting options away from the DSMC2 camera BRAIN. Experience the difference in clarity, color accuracy, and ease of use with the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor.

RED 7" Touchscreen Ultra-Brite LCD Monitor - Mfr# 730-0026 SKU#1591127 Features

  • High-resolution 7.0" Ultra-Brite LCD Monitor for DSMC2 cameras
  • 1920 x 1200 resolution with 2200 nits of brightness for clear viewing in outdoor environments
  • Wide color gamut display for enhanced color accuracy
  • Robust, optically-bonded touchscreen with Gorilla Glass for intuitive navigation and review of .R3D clips
  • Lightweight and easily mounts to BRAIN or any 1/4-20 mounting surface
  • Ideal for use with gimbals, cranes, and remote viewing, offering versatile shooting options

What's in the box:

  • RED Digital Cinema DSMC2 7" Touchscreen Ultra-Brite LCD Monitor
  • Item Note: Monitor Does Not Power On; May Have Additional Issues. Cosmetic Condition is E. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE
