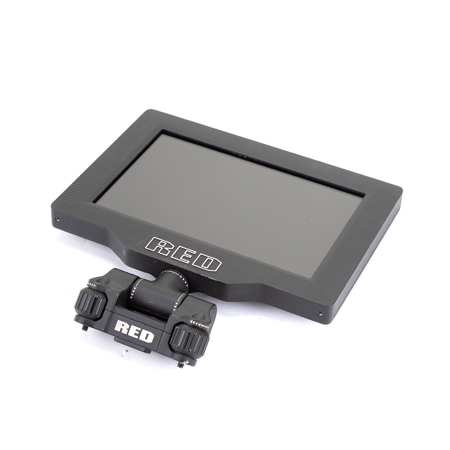

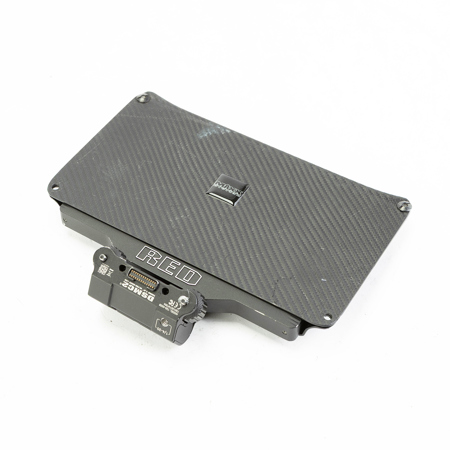

Used RED Digital Cinema 7" Touchscreen Ultra-Brite LCD Monitor for DSMC2 Camera, 1920x1200, Direct Mount

SKU: US1912761 MFR: 730-0028
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$137.99

3 Year

$215.99

4 Year

$292.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema LCD Monitor Specifications

  • Material

    Aluminum Alloy

  • Resolution

    1920 x 1200

  • Pixel Density

    323 pixels per inch (ppi)

  • Refresh Rate

    60Hz

  • Response Time

    30ms (black to white)

  • Contrast

    1200:1

  • Brightness

    2200 cd/sq. m

  • Color Depth

    8-bit RGB, 4:4:4 progressive scan (16.7 million colors)

  • Colors

    83% NTSC

  • Viewing Angle

    +/- 85 deg. all axes

  • Display Orientation

    Landscape, 180 deg. rotation

  • Touch

    Projected Capacitive (PCAP), multi-touch

  • Brain Connection

    Power and Communication via LCD/EVF cable

  • Mounting

    2x M4 captive mounting screws, spring loaded, with quick-release thumb knobs

  • Arm Mounting

    1/4-20 mounting hole in base

  • Hood Mounting

    M3x0.5 x 5mm (max depth)

  • Buttons

    Up, Down, User 1, User 2

  • Power Consumption

    6.1W at full 2200 nits brightness

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Firmware Requirement

    Compatible with DSMC2 firmware v7.2.0 or later

  • Dimensions (H x W x D)

    7.6 x 7.7 x 0.8" (192.2 x 195.6 x 19.4mm)

  • Weight

    1.66 lb (752g)

About RED Digital Cinema 7" Touchscreen Ultra-Brite LCD Monitor for DSMC2 Camera, 1920x1200, Direct Mount

The DSMC2 Touch 7.0" Ultra-Brite LCD (Direct Mount) offers a high-definition viewing experience for recording and viewing footage on your DSMC2 camera system, even in direct sunlight. A 1920 x 1200 resolution display panel provides 2200 nits of brightness to overcome viewing difficulties in bright outdoor environments. Featuring a wide color gamut display, the display provides enhanced color accuracy. The high pixel density (at 323 ppi) and 1200:1 contrast ratio also helps to deliver exceptional image quality. A robust, optically-bonded touchscreen with Gorilla Glass provides the most intuitive way to navigate menus, adjust camera parameters, and review your. R3D clips directly out of the camera.

The lightweight display mounts directly to the BRAIN without the need for any tools or hardware. Convenient thumbscrews enable you to attach and remove the display on-the-fly. Featuring a hinge design that rotates nearly 360 Degree and folds down to lay flat for easy transportation, as well as a 180 Degree image rotation option-the DSMC2 Touch 7.0" Ultra-Brite LCD (Direct Mount) is one of the most ergonomic DSMC2 displays available.

Warranty Information

This used item has a FREE 180-day warranty. See details.
