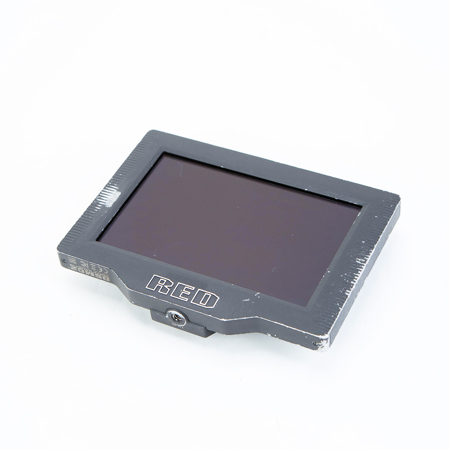

Used RED Digital Cinema 7" Touchscreen Ultra-Brite LCD Monitor for DSMC2 Camera, 1920x1200

SKU: US2018775 MFR: 730-0026
Earn VIP Reward Points

What`s in the box:

    See more

    Key Features

    • High-resolution 7.0" Ultra-Brite LCD Monitor for DSMC2 cameras
    • 1920 x 1200 resolution with 2200 nits of brightness for clear viewing in outdoor environments
    • Wide color gamut display for enhanced color accuracy
    • Lightweight and easily mounts to BRAIN or any 1/4-20 mounting surface
    • Ideal for use with gimbals, cranes, and remote viewing, offering versatile shooting options
    See More Product Details

    INCLUDES FREE WARRANTY

    • This used item comes with a free 180-day warranty. ?
    Overview
    Compare
    Specs
    Protection

    Reviews about this item

    Review Summary

    RED Digital Cinema LCD Monitor Specifications

    • Material

      Aluminum Alloy

    • Resolution

      1920 x 1200

    • Pixel Density

      323 pixels per inch (ppi)

    • Refresh Rate

      60Hz

    • Response Time

      30ms (black to white)

    • Contrast

      1200:1

    • Brightness

      2200 cd/m2

    • Color Depth

      8-bit RGB, 4:4:4 progressive scan (16.7 million colors)

    • Colors

      83% NTSC

    • Viewing Angle

      +/- 85 deg. all axes

    • Display Orientation

      Landscape, 180 deg. rotation

    • Touch

      Projected Capacitive (PCAP), multi-touch

    • Brain Connection

      Power and Communication via LCD/EVF cable

    • Mounting

      23x 1/4-20 mounting points
      2x 3/8-16 mounting points

    • Hood Mounting

      M3x0.5 x 5mm (max depth)

    • Buttons

      Up, Down, User 1, User 2

    • Power Consumption

      6.1W at full 2200 nits brightness

    • Operating Temperature

      0 to 40 deg. C (32 to 104 deg. F)

    • Storage Temperature

      -20 to 50 deg. C (-4 to 122 deg. F)

    • Operating Humidity

      0% to 85%, non-condensing

    • Storage Humidity

      0% to 85%, non-condensing

    • Firmware Requirement

      Compatible with DSMC2 firmware v7.2.0 or later

    • Dimensions (HxWxD)

      5.70 x 7.70 x 1.40" (14.48 x 19.56 x 3.56cm)

    • Weight

      1.45 lbs (0.66kg)

    About RED Digital Cinema 7" Touchscreen Ultra-Brite LCD Monitor for DSMC2 Camera, 1920x1200

    Are you a filmmaker or videographer in search of a high-quality, durable, and portable touchscreen monitor for your DSMC2 camera Look no further than the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor. This versatile and easy-to-use device offers a superior high-definition viewing experience, even in direct sunlight, making it an ideal companion for outdoor shoots.

    With a high resolution of 1920 x 1200, this monitor displays more detail and provides a clearer image than many alternatives on the market. Its display panel boasts 2200 nits of brightness, overcoming viewing difficulties in bright outdoor environments. The wide color gamut display enhances color accuracy, ensuring your footage looks as true-to-life as possible.

    The DSMC2 Touch 7.0" Ultra-Brite LCD Monitor stands out with its high pixel density of 323 ppi and a 1200:1 contrast ratio, both of which contribute to delivering exceptional image quality. The robust, optically-bonded touchscreen is fortified with Gorilla Glass, offering the most intuitive way to navigate menus, adjust camera parameters, and review your .R3D clips directly out of the camera.

    Designed for convenience, this lightweight display easily mounts to your BRAIN or any other 1/4-20 mounting surface. It also features a LEMO connection for seamless integration with your camera. This monitor is an excellent choice for use with gimbals, cranes, and remote viewing, providing flexibility and adaptability in various shooting scenarios.

    For ergonomic monitoring solutions on the move, consider pairing the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor with a DSMC2 LEMO Adaptor A for convenient mounting options away from the DSMC2 camera BRAIN. Experience the difference in clarity, color accuracy, and ease of use with the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor.

    RED Digital Cinema 7" Touchscreen Ultra-Brite LCD Monitor for DSMC2 Camera, 1920x1200 Features

    • High-resolution 7.0" Ultra-Brite LCD Monitor for DSMC2 cameras
    • 1920 x 1200 resolution with 2200 nits of brightness for clear viewing in outdoor environments
    • Wide color gamut display for enhanced color accuracy
    • Robust, optically-bonded touchscreen with Gorilla Glass for intuitive navigation and review of .R3D clips
    • Lightweight and easily mounts to BRAIN or any 1/4-20 mounting surface
    • Ideal for use with gimbals, cranes, and remote viewing, offering versatile shooting options

    Warranty Information

    This used item has a FREE 180-day warranty. See details.

    Key Features

    • High-resolution 7.0" Ultra-Brite LCD Monitor for DSMC2 cameras
    • 1920 x 1200 resolution with 2200 nits of brightness for clear viewing in outdoor environments
    • Wide color gamut display for enhanced color accuracy
    • Lightweight and easily mounts to BRAIN or any 1/4-20 mounting surface
    • Ideal for use with gimbals, cranes, and remote viewing, offering versatile shooting options
