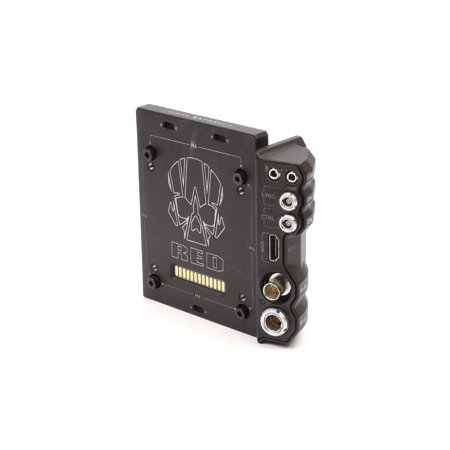

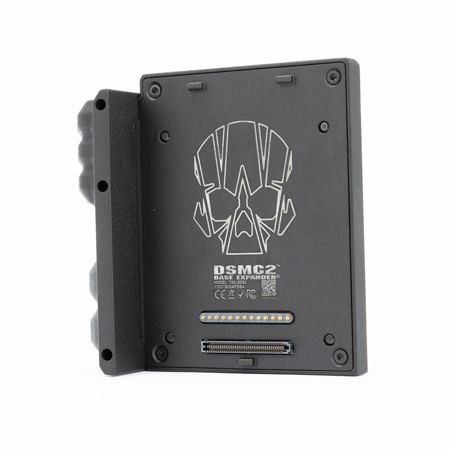

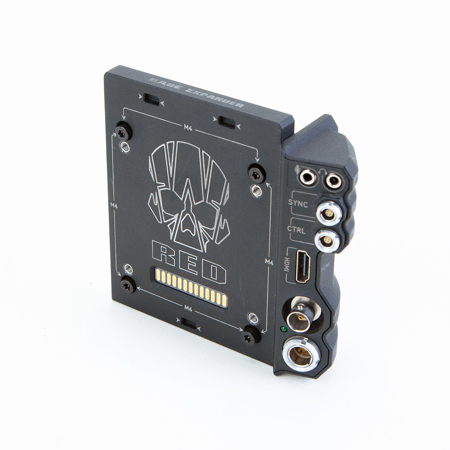

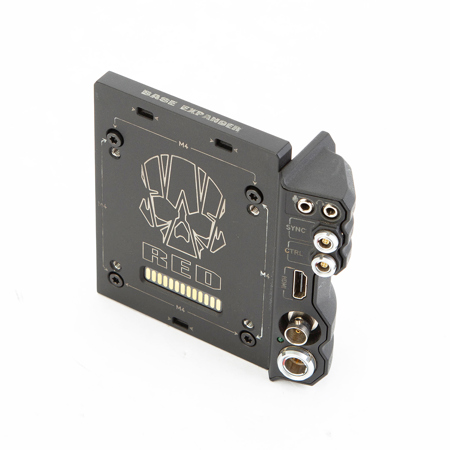

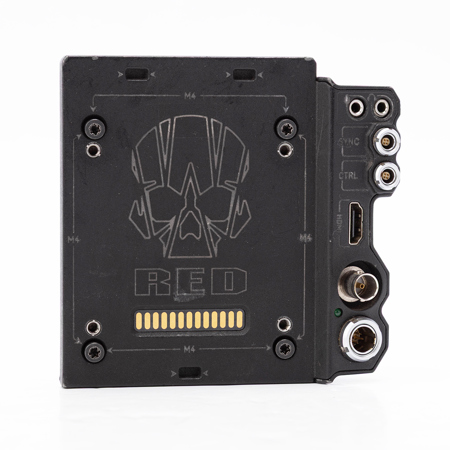

Red Digital Cinema DSMC2 Base Expander
RED Digital Cinema DSMC2 Base Expander: Picture 1 thumbnail
RED Digital Cinema DSMC2 Base Expander: Picture 2 thumbnail
See all Red Digital Cinema items
ClearanceUsed Condition: Flawed

Used Red Digital Cinema DSMC2 Base Expander

SKU: US1968878 MFR: 720-0033
Be the first to review this item
$170.00
Earn VIP Reward Points
See all Used options (1) from $170

What`s in the box:

  • RED Digital Cinema DSMC2 Base Expander
See more
Free Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema DSMC2 Base Expander Specifications

  • Material

    Magnesium

  • BRAIN Mounting

    4x M4 captive mounting screws

  • BRAIN Connections

    Power delivery via DSMC2 Rear pogo connector (13-Pin)
    Communication via DSMC2 Rear I/O connector (4 x40 Pin)

  • Connectors

    DC IN (6-Pin 1B LEMO socket)
    3G-SDI output (75 Ohm BNC), 60 Hz max frame rate
    HDMI 1.2 output (Type A socket), 60 Hz max frame rate
    SYNC (Genlock IN / Timecode IN / Sync IN) (4-Pin 00B LEMO socket)
    CTRL (Tally OUT / RS-232 Rx and Tx) (4-Pin 00B LEMO socket)
    Stereo Analog Microphone input (3.5mm jack)
    Stereo Headphone output (3.5mm jack)

  • Battery Module Connections

    Power delivery via DSMC2 Rear pogo connector (13-Pin)

  • Audio

    24-bit, 48 KHz, uncompressed, unbalanced mic level

  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Firmware Requirement

    Compatible with all DSMC2 firmware versions

  • Compatibility

    WEAPON 8K S35
    WEAPON 6K
    EPIC-W
    SCARLET-W
    RAVEN

  • Dimensions (H x W x D)

    4.57 x 4.76 x 1.50" (116 x 121 x 38 mm)

  • Weight

    0.45 lbs (203 g)

About Red Digital Cinema DSMC2 Base Expander

The DSMC2® Base Expander

The DSMC2® Base Expander is an ideal connector module for the general user’s Input/Output (I/O) needs. Manufactured from lightweight and durable magnesium, this low-profile module mounts directly to your DSMC2 BRAIN® and offers interface connections for power (DC IN), HDMI, 3G-SDI (HD-SDI), CTRL and SYNC ports (for Timecode and Genlock), as well as a 3.5mm microphone input and a 3.5mm line-level headphone out.

Base Expander

The DSMC2 Base Expander also offers rear-mounting support for the camera system-compatible battery and power modules, such as the DSMC2 REDVOLT®XL Module.
The low profile DSMC2 Base Expander offers a variety of connectors and is ideal for run-and-gun and independent shooters.

NOTE: Only one (1) expander module can be used at a time.
