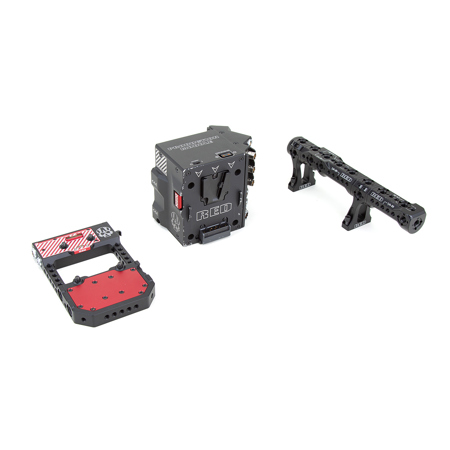

Used RED Digital Cinema DSMC2 Production Kit (V-Lock) with DSMC2 Production Module, Production Top Plate and Top Handle

The DSMC2 Production Kit (V-Lock) combines the DSMC2 Production Module, Production Top Plate, and Production Top Handle to provide a comprehensive array of professional I/O connections and mounting points to support studio and lightweight configurations.

The Production Top Plate provides 1/4-20 and 3/8-16 mounting points, and features an integrated LCD/EVF Lemo port and 3-pin Fischer port for remote start/stop support.

The modular design of the Production Top Handle provides a configurable, rugged handle with an array of 1/4-20 and 3/8-16 mounting points for industry standard accessories. It can be setup in a compact or extended configuration to suit various shooting needs.

- DSMC2 Production Module -
Designed for professional shooting configurations, the DSMC2 Production Module (V-Lock) mounts directly to the BRAIN and offers a comprehensive array of video, power, communication, and pro audio connections. Constructed from lightweight and durable aluminum alloy, this module incorporates an industry standard V-Lock mount to power your DSMC2 camera when using RED BRICK, REDVOLT-V, or other V-Lock batteries.

The Production Module includes three BNC video connectors for maximum monitoring flexibility on-set. Two connectors output a cloned 3G-SDI signal, and one connector serves as an independent monitoring output.

To support production demands for on-board monitors, wireless video transmitters, wireless lens control, and focus assist systems, the module includes multiple auxiliary power outputs:

• Two front-facing 3-Pin Fischer R/S ports support Remote Start/Stop functionality, and provide 24V power out up to a combined 2.5 Amps.
• A front-facing 2-Pin 0B LEMO AUX PWR port provides power out up to 3.0 Amps.
• A 2-Pin P-Tap connector on the top provides power out up to 3.0 Amps.
• A rear-facing USB 2.0 port with support for fast charging offers 5V at 1.5 Amps for powering small mobile devices.

Two standard XLR connections are included for most professional audio needs. Each XLR input features a 3-position selector switch to designate the incoming audio signal type: Balanced Line Level, Balanced Mic Level, and Balanced Mic with +48V phantom power. Additionally, a 3.5mm line-level headphone jack allows users to monitor audio during takes and in playback mode.

The module features ports for power in (DC IN), Genlock (BNC), Timecode (LEMO), GIG-E, and CTRL.

The module also features a selector switch that enables the BRAIN to automatically boot when power is provided via the DC IN connector on the module. This feature allows operators to use a connected DC input supply to turn the BRAIN on and off when the camera is mounted in remote or difficult to maneuver locations.
