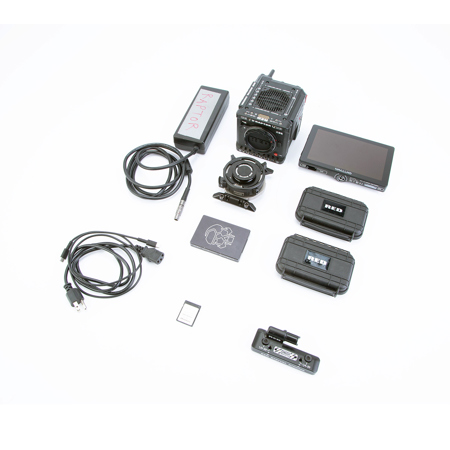

Used RED Digital Cinema V-RAPTOR 8K S35 Camera Starter Pack, Rigid Hinge LCD

SKU: US1958451 MFR: 710-0414
$17,999.00
New: $22,250.00
Used Savings: $4251 (19%)
OR
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the RED V-RAPTOR's 8K S35 sensor for unparalleled image quality.
  • Achieve cinematic brilliance with 16.5+ stops of dynamic range, perfect for any shooting scenario.
  • Record up to 120fps in 8K, creating smooth, high-resolution slow-motion footage with ease.
  • Utilize the integrated RF mount for versatile lens options, adapting to various shooting needs.
  • Enjoy seamless workflow with CFexpress media, enabling fast data rates up to 800 MB/s.
  • Experience intuitive control with the 7" touch LCD, ensuring precise focus & exposure settings.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$562.99

3 Year

$881.99

4 Year

$1,218.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR 8K S35 RH Specifications

V-RAPTOR 8K S35 Camera

V-RAPTOR 8K S35 Camera

Jump to...
  • Color

    Black

  • Sensor Type

    V-RAPTOR 8K S35 35.4 Megapixel CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    26.21 x 13.82mm (Diagonal: 29.63mm)

  • Dynamic Range

    16.5+ stops

  • Mount Type

    Integrated RF mount with RF lens support
    Supports Canon EF lenses via compatible Canon RF to EF mount adapters
    Accepts other Canon RF mount-based lens adapters for diverse lens choices

  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • Redcode Raw Max Frame Rates

    120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
    140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
    160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
    192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
    240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)

  • Redcode Raw Max Frame Rates (Contd.)

    320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
    480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

  • Internal Recording Modes

    REDCODE HQ:
    8192 x 4320 up to 60.00 fps
    6144 x 3240 up to 96 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps

    REDCODE MQ:
    8192 x 4320 up to 60.00 fps
    6144 x 3240 up to 160 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps

    REDCODE LQ:
    8192 x 4320 up to 120 fps
    6144 x 3240 up to 160 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps

  • Internal Recording Modes (Contd.)

    REDCODE RAW:
    8192 x 4320 up to 120 fps
    7168 x 3780 up to 140 fps
    6144 x 3240 up to 160 fps
    5120 x 2700 up to 192 fps
    4096 x 2160 up to 240 fps
    3072 x 1620 up to 320 fps
    2048 x 1080 up to 480 fps

  • Redcode Raw

    8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
    7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1
    6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1
    5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
    4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
    3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
    2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1

  • Apple Prores

    Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160)
    Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)

  • Construction

    Aluminum Alloy

  • Battery

    Integrated V-Lock battery interface optimized for Micro V-Lock Batteries

  • Dc Power Input

    11-17V via 6-pin DC-IN

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Storage Relative Humidity

    0% to 85% non-condensing

  • Color Management

    Image Processing Pipeline 2 (IPP2)
    Supports 33 x 33 x 33 3D LUTs
    Supports import of CDLs

  • Audio

    Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz

  • Autofocus

    Contrast and Phase Detect

  • Focus Type

    Auto and Manual Focus

  • Focus Mode

    Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF

  • Remote Control

    Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
    Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
    Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload

  • Monitor Outputs

    Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
    12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
    6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
    3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
    1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC3 RED Touch 7.0" LCD
    Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
    Integrated 2.4" LCD for camera control (no preview video)

  • Red Control

    Access full camera controls and live preview from iOS or Android devices
    Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C

  • Media/Memory Card Slot

    Single Slot: CFexpress Type B (CFast 2.0)

  • Video I/O

    2x BNC (12G-SDI) Output

  • Audio I/O

    1x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input
    1x 1/8" (3.5mm) TRS Stereo Headphone Output

  • Power I/O

    1x LEMO 6-Pin (11 to 17VDC) Input

  • Other I/O

    1x USB-C Control/Data/Video
    1x 9-Pin Control/Data Input/Output

  • Tripod Mounting Thread

    1/4"-20 Female (Bottom)
    3/8"-16 Female (Bottom)

  • Accessory Mount

    28x 1/4"-20 Female

  • Battery Info

    Optional, included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • Dimensions

    6 x 4.25 x 4.25" (15.24 x 10.79 x 10.79cm)

  • Weight

    Without body cap and CFexpress card: 4 lbs (1.81kg)

DSMC AC Power Adapter Pack

Jump to...
  • Output Connector

    Proprietary

  • Maximum Wattage

    150 W

  • Cable Length

    12' (3.66m)

DSMC3 Touch 7" LCD Monitor

Jump to...
  • Material

    Aluminum Alloy

  • Resolution

    1920 x 1200

  • Pixel Density

    322 pixels per inch (ppi)

  • Refresh Rate

    60 Hz

  • Response Time

    25 ms

  • Contrast

    1250:1

  • Brightness

    1300 cd/sq. m

  • Color Depth

    10 bit

  • Colors

    100% DCI-P3

  • Viewing Angle

    +/- 160 Degree all axes

  • Display Orientation

    Landscape, 180 Degree rotation

  • Touch

    Projected Capacitive (pCap), multi-touch

  • Camera Connection

    Power and Communication via RMC cable

  • Mounting

    15mm Rail

  • Hood Mounting

    4x M3 Mounting Points

  • Buttons

    4 Buttons Function 1,2,3 & 4

  • Power Consumption

    Max 18.3W

  • Operating Temperature

    0 Degree C to 38 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -18 Degree C to 49 Degree C (-0 Degree F to 120 Degree F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Firmware Requirement

    Compatible with camera firmware V1.1 or later

  • Dimensions (H x W x D)

    Monitor: 4.67 x 7.09 x 1.13" (118.7 x 180.1 x 28.8mm)
    Arm: 1.18 x 2.4 x 0.7" (30 x 61 x 17.5mm)
    RED Monitor Interface: 1.67 x 4.25 x 1.51" (42.5 x 108 x 38.23mm)

  • Weight

    Monitor: Approx. 20 oz (568g)
    Arm: Approx. 1 oz (30.1g)
    RED Monitor Interface: Approx. 4.4 oz (126g)

PRO CFexpress 2TB Memory Card

Jump to...
  • Max Data Rates

    V-RAPTOR ST 8K up to 800 MB/s

  • Operating Temperature

    14 Degree F to 158 Degree F (-10 Degree C to 70 Degree C)

  • Storage Temperature

    -4 Degree F to 185 Degree F (-20 Degree C to 85 Degree C)

  • Operating Humidity

    5% to 95%, non-condensing

  • Shock Resistance (Operating)

    50 G @ 10-2000Hz

  • Vibration Resistance (Operating)

    15 G

  • Usable Capacity

    RED PRO CFexpress 2TB bytes

  • Dimensions (H x W x D)

    Approx. 1.52 x 1.17 x 0.15" (38.5 x 29.6 x 3.8mm)

  • Weight

    Approx. 0.24 oz (7g)

CFexpress Card Reader

Jump to...
  • Drive Interface

    CFexpress Type-B

  • Power

    USB Bus-Power

  • System Connection

    USB Type-C Male [USB 3.2 Gen 2x2 (20 Gb/s)]

  • Dimensions (H x W x D)

    Approx. 3.74 x 2.56 x 0.47" (95 x 65 x 12mm)

  • Weight

    4.2 oz (120g)

REDVOLT MICRO-V Battery

Jump to...
  • Compatibility

    RED Compact Dual V-Lock Charger

  • Battery

    Rechargeable Lithium-Ion Battery

  • Battery Capacity

    6600mAh / 98Wh

  • Output Voltage

    14.8 VDC

  • Maximum Load

    0

  • Accessory I/O

    1x D-Tap Output
    1x USB Type-A Output

  • USB Output

    5 V

  • Operating Temperature

    50 Degree F to 113 Degree F (10 Degree C to 45 Degree C)

  • Charging Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    68 Degree F to 122 Degree F (20 Degree C to 50 Degree C)

  • Dimensions (H x W x D)

    3.93 x 2.82 x 1.94" (99.80 x 71.6 x 49.2mm)

  • Weight

    Approx. 19.1 oz (544.3g)

Compact Dual V-Lock Charger

Jump to...
  • Compatibility

    REDVOLT MICRO-V, Standard V-Lock Batteries

  • Input

    100V-240VAC 50/60Hz

  • Charge Current

    One Battery 3A, Two Batteries 1.5A

  • Charging Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    68 Degree F to 122 Degree F (20 Degree C to 50 Degree C)

  • Dimensions (H x W x D)

    4.5 x 5.5 x 3" (114.3 x 139.7 x 76.2mm)

  • Weight

    Approx. 16 oz (453.6g)

V-RAPTOR Wing Grip

Jump to...
  • Material

    Aluminum

  • Mounting to Komodo

    2x M4 captive mounting screws

  • Mounting to V-Raptor

    2x 1/4-20 mounting screws

  • Dimensions (H x W x D)

    4.21 x 1.45 x 1.07" (107 x 36.9 x 27.3mm)

  • Weight

    Approx. 2.8 oz (81.6g)

EXT-to-Timecode Cable

Jump to...
  • Connector 1

    1x 9-Pin LEMO

  • Cable Length

    3' (91.44cm)

  • Weight

    5.6 oz (158.7g)

11 Accessories for RED Digital Cinema V-RAPTOR 8K S35 Camera Starter Pack, Rigid Hinge LCD

  • All Accessories (11)
  • Microphones & Audio (2)
  • Viewfinder Accessories (2)
  • Viewfinders (1)
  • Flash & Lighting (6)

About RED Digital Cinema V-RAPTOR 8K S35 Camera Starter Pack, Rigid Hinge LCD

Why settle for less when you can have the best with the V-RAPTOR 8K S35 DSMC3 Cinema Camera This advanced camera system offers unparalleled image quality with its multi-format 8K S35 sensor, capable of capturing footage at up to 120fps at 8K resolution. With a dynamic range of 16.5+ stops and a sensor scan time that's twice as fast, you can expect reduced artifacts and stunningly clear images.

The V-RAPTOR's compact form factor makes it a versatile choice for any style of production, from run-and-gun shooting to larger, more complex setups. Weighing in at just 4lbs, it's also perfect for use with drones and gimbals. The camera's integrated control display offers comprehensive controls, in-camera format selection, customized buttons, status updates, and more.

This camera is equipped with advanced intelligent focus options, including in-camera AI processing and on-sensor enhanced phase detect autofocus. These features offer the versatility and confidence for users to bring its unparalleled cinematic image performance into new worlds. Upcoming enhancements also include face detection and object tracking.

The V-RAPTOR is also ready for the future of filmmaking, offering multiple camera side solutions for virtual and remote production. With RED Connect, you can stream full resolution, live R3D video over an IP network by simply connecting the V-RAPTOR to a camera control unit with an Ethernet cable.

The V-RAPTOR 8K S35 Camera Starter Pack also includes the DSMC3 RED Touch 7" LCD Monitor, which offers an HD viewing experience with a 1920 x 1200 resolution display panel. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS.

The pack also comes with a PRO CFexpress 2TB Memory Card, designed in collaboration with Angelbird Technologies to meet the high-performance needs of the V-RAPTOR system and 8K acquisition. The RED CFexpress Card Reader is designed exclusively for offloading data from RED PRO CFexpress 660GB and 2TB media cards to your workstation.

Powering your V-RAPTOR is easy with the REDVOLT MICRO-V Battery, which has a 98Wh flight-safe capacity. The pack also includes the RED Compact Dual V-Lock Charger, which offers dual-simultaneous V-Mount charging for the REDVOLT MICRO-V batteries.

The V-RAPTOR Wing Grip is an ideal and versatile handle solution for the V-RAPTOR camera. With the ability to directly attach to either side of the camera, it offers comfort and utility for carrying or shooting with your V-RAPTOR. The pack also includes a 3' EXT-to-Timecode Cable, which provides a Timecode connection via 9-pin EXT connector for KOMODO and V-RAPTOR camera systems.

In conclusion, the V-RAPTOR 8K S35 Camera Starter Pack offers everything you need to capture stunning, high-quality footage in any setting.

RED Digital Cinema V-RAPTOR 8K S35 Camera Starter Pack, Rigid Hinge LCD Features

  • V-RAPTOR 8K S35 DSMC3 Camera Features
  • Compact body measuring only 6 x 4.25 x 4.25" and just over 4 lbs with integrated RF Mount
  • Rugged dust and water resistant design
  • Robust professional I/O array including 2x 12G SDI outputs and 5-pin audio connector w/phantom power capability
  • Integrated and easy-to-navigate control display
  • USB-C interface for remote control, ethernet offload, and more
  • Compatibility with RED Control app
  • DSMC3 Touch 7" LCD Monitor Features
  • Touchscreen Camera Control
  • 1920 x 1200 Resolution
  • 180deg Rotation, 1800 cd/m Brightness
  • 7" Daylight-Viewable LCD, 322 ppi
  • PRO CFexpress 2TB Memory Card Features
  • For Photos, Videos, and Raw 4K to 12K
  • Magnetic Proof
  • Can Withstand Extreme Temperatures
  • Designed by Angelbird for RED
  • Shock / Dust / Water / X-Ray Proof
  • CFexpress Card Reader Features
  • Bus Powered
  • CFexpress 2.0 Type B Card Slot
  • USB 3.2 Gen 2x2 Interface (20 Gb/s)
  • Write-Protect Switch
  • REDVOLT MICRO-V Battery Features
  • Compact, Micro V-Mount Form
  • Powers RED V-RAPTOR Camera
  • Transmits Camera & Select Accessory Data
  • 98Wh, Supports up to 12A Draw
  • Compact Dual V-Lock Charger Features
  • Charge 2x 98Wh Packs in <5 Hours
  • Charges 2x REDVOLT MICRO-V Batteries
  • Dual-Bay V-Mount Charger, Compact Size
  • Simultaneous Charging at 3 A
  • V-RAPTOR Wing Grip Features
  • Wing Grip is an ideal and versatile handle solution for the V-RAPTOR camera
  • 3' EXT-to-Timecode Cable Features
  • Provides a Timecode connection via 9-pin EXT connector

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Capture stunning visuals with the RED V-RAPTOR's 8K S35 sensor for unparalleled image quality.
  • Achieve cinematic brilliance with 16.5+ stops of dynamic range, perfect for any shooting scenario.
  • Record up to 120fps in 8K, creating smooth, high-resolution slow-motion footage with ease.
  • Utilize the integrated RF mount for versatile lens options, adapting to various shooting needs.
  • Enjoy seamless workflow with CFexpress media, enabling fast data rates up to 800 MB/s.
  • Experience intuitive control with the 7" touch LCD, ensuring precise focus & exposure settings.
