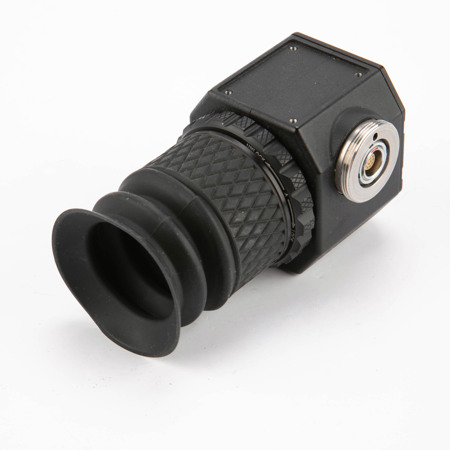

RED DSMC2 Red EVF (OLED) - Mfr# 730-0021 SKU#1694336

Picture does not represent the actual item
See what's in the box

See all Red Digital Cinema items

Used RED DSMC2 Red EVF (OLED)

SKU: US1694336
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
RED Digital Cinema DSMC3 Compact EVF Pack
undefined undefined: Picture 1 regular
Used RED Digital Cinema BOMB EVF [LCOS]
undefined undefined: Picture 1 regular
Used RED Digital Cinema BOMB EVF [LCOS]
undefined undefined: Picture 1 regular
RED Digital Cinema DSMC3 Compact EVF
undefined undefined: Picture 1 regular
RED Digital Cinema Denz Premium Optics Eyepiece for Compact EVF
undefined undefined: Picture 1 regular
Kinefinity EAGLE SDI Full HD e-Viewfinder for Digital Cinema Camera
undefined undefined: Picture 1 regular
Kinefinity EAGLE HDMI Full HD e-Viewfinder for Digital Cinema Camera
undefined undefined: Picture 1 regular
Kinefinity KineEVF Full HD OLED Viewfinder
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

RED Digital Cinema Viewfinder Specifications

  • Compatibility

    WEAPON 8K S35, WEAPON 6K, EPIC-W, SCARLET-W, RAVEN, EPIC/SCARLET DRAGON, EPIC/SCARLET M-X Cameras

  • Resolution

    1920 (wide) x 1080 (high), full-color

  • Bit Depth

    30-bit RGB (color)

  • Colorimetry

    Rec 709

  • Contrast Ratio

    > 10000:1 (typical)

  • Display Rate

    60 fps

  • Modular Optical Block

    Fully coated optics with > 32 deg. field of view, infinity focus and eye cup that accommodates standard 1.6" to 1.8" diameter eye cushions

  • Diopter Range

    -2.5 to +2.5 diopter correction range

  • Buttons

    Two user defined buttons

  • Power Consumption

    2.5W (max)

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Operating Humidity

    0 to 85%, non-condensing

  • Storage Humidity

    0 to 85%, non-condensing

  • Dimensions (HxWxD)

    2.5 x 2.25 x 4.6" (63.50 x 57.15 x 116.84mm)

  • Weight

    0.8 lbs (0.36kg), DSMC2 RED EVF Body (OLED) and Modular Optical Block

About RED DSMC2 Red EVF (OLED) - Mfr# 730-0021 SKU#1694336

The DSMC2 RED EVF (OLED) is a high definition electronic viewfinder designed as the ideal single-viewer monitoring solution. Featuring the latest OLED technology, this EVF provides an unmatched personal viewing experience with a high contrast 1080p OLED micro-display and improved color accuracy with 30-bit RGB color representation. View and monitor your RED footage as it is intended with truer colors and deeper blacks in a larger field of view. Engineered with OBSOLESCENCE OBSOLETE in mind, the DSMC2 RED EVF (OLED) is perfect for use with DSMC and DSMC2 cameras. The DSMC2 RED EVF (OLED) includes a DSMC2 RED EVF Mounting Plate (Top), an 18" EVF/LCD Cable (Right-To-Right) and a RED ARM 9".

The DSMC2 RED EVF (OLED) with Mount Pack is also available for cable-free attachment configurations with your DSMC2 BRAIN.

Note:

Camera BRAIN and cable-free Mount Pack NOT included.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RED Digital Cinema DSMC2 RED EVF OLED Electronic Viewfinder
  • Original Box
  • Item Note: Missing 4x Screws; Bottom Pad
