KOMODO 19.9 MP Super 35mm Global Shutter CMOS
6144 x 3240
27.03 mm x 14.26 mm (Diagonal: 30.56mm)
16+ Stops
RF mount
Accepts Canon RF mount-based lens adapters for diverse lens choices
Supports Canon EF with full electronic communication via compatible Canon RF mount adapters, and supports mechanically operated RF lenses (electronic control of Canon RF lenses not supported at this time)
Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards [1]
40 fps at 6K 17:9 (6144 x 3240)
50 fps at 6K 2.4:1 (6144 x 2592)
48 fps at 5K 17:9 (5120 x 2700)
60 fps at 4K 17:9 (4096 x 2160)
120 fps at 2K 17:9 (2048 x 1080)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps
6K 17:9 (6144 x 3240), 2.4:1 and 16:9
5K 17:9 (5120 x 2700)
4K 17:9 (4096 x 2160)
2K 17:9 (2048 x 1080)
4K (4096 x 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps
2K (2048 x 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps
Aluminum Alloy
Two slots for BP-9XX series batteries
+7 to +17 V DC via the integrated 2-pin DC-IN port
0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)
-20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)
0% to 85% non-condensing
Image Processing Pipeline 2 (IPP2)
Supports 33 x33 x33 3D LUTs
Supports import of CDLs
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port
Wired control via KOMODO Link Adapter, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
2G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing
Access full camera controls and live preview from iOS or Android devices.
Available from the Apple App Store and Google Play Store (coming soon). RED Control works wirelessly or wired via the KOMODO Link Adapter (sold separately).
Required, not included
Lithium ion
-
2
2.10 lbs (0.95kg) (without body cap and CFast card)
Canon RF
Canon EF, Canon EF/EF-S
2.9 x 1" (73.2 x 24.7mm)
4.27 oz (121g)
Multiple x 1/4"-20 Thread
Multiple x Anti-Twist 3/8"-16 Thread
None
None
None
Single Handgrip
None
Aluminum
3.7 x 1.5 x 1.3" (95 x 38 x 32mm)
2.1 oz (59g)
1
CFast 2.0
512 GB
3500x
Magnet-Proof, Shockproof, Temperature Extremes, X-Ray Proof
32 to 158 Degree F (0 to 70 Degree C)
-40 to 185 Degree F (-40 to 85 Degree C)
None
1x CFast (CFast 2.0 / SATA III [6 Gb/s])
1x USB Type-C (Male)
USB 3.1 Gen 2 (10 Gb/s)
1x 9-Pin LEMO
3' (91.44cm)
This pre-bundled setup is perfect for content creators and run-and-gun operators. Including KOMODO 6K with the Wing Grip and RF to EF Adapter with ND Filter. Also included is media and media reader, as well as Timecode Cable.
- KOMODO 6K -

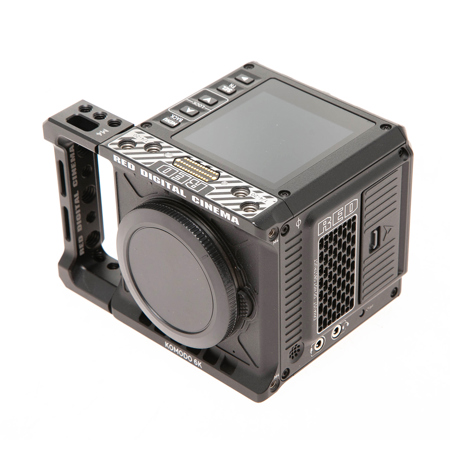

KOMODO 6K is the latest breakthrough product in RED's long line of innovative image capture technology. The newest entrant into the RED lineup is a compact and highly powerful cinema camera. It features RED's cinema grade image quality, color science and sensor technology into a portable form factor so users can take it anywhere and adapt it to any shooting scenario.
The new sensor in KOMODO is a 6K S35 global shutter sensor that breaks new technical ground by eliminating the need to sacrifice dynamic range and meets the RED standard of unmatched imagery without any creative or technical compromises. KOMODO also features a built -in Canon RF mount allowing users the flexibility to use numerous different lens adapters, such as Canon EF, PL and Leica M mount. KOMODO also has a DC IN power port and can also be powered using two Canon BP style batteries.
In -Camera Language Support: English, Simplified Chinese, Japanese, German, Spanish, French
- Canon Drop -In Filter Mount Adapter -
Connect an EF or EF -S lens to your EOS R camera using the Drop -in Filter Mount Adapter EF -EOS R, expanding your available lens options while also providing the ability to add a drop -in filter to your photographic endeavors. This drop -in filter adapter lets you utilize a variable ND filter, and because it's one size fits all, there's no need to purchase multiple filters to fit various lens diameters. The Drop -in Filter Mount Adapter EF -EOS R's matching design means smooth connections while a rugged, dust - and water -resistant construction adds to its flexibility, making it easy to have a choice of lens and filter for virtually any shooting situation.
- KOMODO Wing Grip -
The KOMODO Wing Grip is the perfect handle solution, offering comfort and utility for carrying or shooting with your KOMODO. Featuring an ergonomic machined grip with tactical 1/4 -20 mounting points. It is ideal for lightweight camera configurations and offers a low -profile handheld option.
- RED PRO CFast 512GB -
RED PRO CFast 512GB is the official certified media card for the KOMODO 6K. The media is CFast 2.0 compliant and offers a durable build that is x -ray and magnetic proof.
- RED CFast 2.0 Card Reader -
The RED CFast 2.0 Card Reader is designed exclusively for offloading data from RED PRO CFast 512GB media to your workstation. Connect to your camera via USB 3.2 Gen 2 for fast ingestion of CFast 2.0 media (10 Gb/s).
For additional data safety, flip on the write -protect switch located at the back of the card reader.
- RED EXT -To -Timecode Cable 3' -
The RED EXT -to -Timecode Cable 3' provides a Timecode connection via 9 -pin EXT connector.
Length measured from end -to -end of cable including connectors
