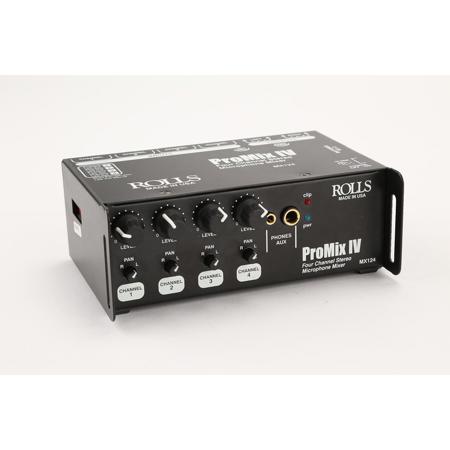

Rolls MX124 Portable 4 Channel Stereo Mixer - SKU#1606451

Picture does not represent the actual item
See what's in the box

See all Rolls items

Used Rolls MX124 Portable 4 Channel Stereo Mixer

SKU: US1606451
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Rolls MX41B 4 Channel Passive Mixer with Level Control
undefined undefined: Picture 1 regular
Rolls SL33B Stereo Program Limiter
undefined undefined: Picture 1 regular
Yamaha MG12X CV 12-Input 2-Bus Plus Stereo Mixer with Effects
undefined undefined: Picture 1 regular
Yamaha MG16X CV 16-Input 4-Bus Plus Stereo Mixer with Effects
undefined undefined: Picture 1 regular
Yamaha MG06 6-Input Mixer
undefined undefined: Picture 1 regular
Point Source Audio SERIES8 CR-8L Cardioid Lavalier Microphone
undefined undefined: Picture 1 regular
Yamaha MG16 16-Input Mixer
undefined undefined: Picture 1 regular
Yamaha MG12 12-Input Mixer
undefined undefined: Picture 1 regular
Mackie 1202VLZ4 12-Channel Compact Analog Mixer
undefined undefined: Picture 1 regular
Anton Bauer Dionic XT90 99Wh Gold Mount Lithium-Ion Battery
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Rolls MX124 Specifications

  • Input Impedance

    600 Ohms

  • Output Impedance

    XLR 600 Ohms, 1/4" and 1/8" 10 Ohms

  • THD + Noise

    0.02%

  • S/N Ratio

    84 dB

  • Frequency Response

    25 Hz - 16 kHz (+0 / -3 dB)

  • Max Output Level

    + 14 dB

  • Max Input Level

    -14 dB

  • Max Gain

    +55 dB

  • Low Cut

    -3 dB @ 100 Hz

  • Current Draw

    30 mA

  • Phantom Power

    +18 VDC

  • Connectors

    4 Female XLR, 2 Male XLR, 1 1/4" TRS, 1: 1/8" (3.5mm) DC Power Jack (5.5 X 2.1 mm tip negative)

  • Dimensions (W x D x H)

    6.3" x 3.7" x 2.3" / 16 x 9.39 x 5.84 cm

  • Weight

    1.5 lbs / 0.68 kg

About Rolls MX124 Portable 4 Channel Stereo Mixer - SKU#1606451

The Rolls MX5124 Pro-MixIV mixes 4 microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power and Low Cut switches, a Level control and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator and Power switch. The unit is also powered by two 9-Volt alkaline batteries.

Rolls MX124 Portable 4 Channel Stereo Mixer - SKU#1606451 Features

  • Mixes four microphones to stereo XLR outputs
  • Output level controls for mic or line-level output
  • Transformer isolated outputs
  • Phantom Power and Low-Cut switches for each Mic input
  • Battery and AC powered
  • 1/4" and 1/8" TRS stereo Phone/Aux Outputs

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Rolls MX124 Portable 4 Channel Stereo Mixer
  • Original Box
  • Item Note: Mixer is Not Functional; Will Not Power On; Missing Power Supply. May Have Additional Issues. Cosmetic Condition is E+. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE
