Used Sachtler 1011 System Ace L MS CF Tripod Head and Legs, 13.2 lbs Head/44 lbs Legs Capacity, 66.9" Max Height

SKU: US1691121

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2024-02-11T07:29:22

Rated 5 out of 5

top of the line

i got this tripod 11 years ago and its still running strong,one of the best,strongly recommended even though there are many other choises on the market these days.

panagiotis p.

2013-05-27T21:00:00

Rated 5 out of 5

Solid Tripod for the Price

Currently using a Canon GL2, which is a joke on this tripod. We got this model in preparation for a camera upgrade, which will be far more substantial. I have no doubts about the capability of the Sachtler 1011 to be able to easily hold a far greater load than we are giving it now. The head is very smooth, the adjustments are simple and easy to use, and the illuminated bubble level is a very nice touch. After a couple of weeks of use, I am quite pleased with the overall operation of the product.

Brent l.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sachtler Ace L System Specifications

  • Head: Counter Balance Range

    Range: 0 - 13.2 lbs (0 - 6 kg)
    Steps: 7 steps plus 0 setting

  • Head: Quick Release Plate

    Type: Sliding Balance
    Sliding Adjustment: 4.1" (104.1mm)

  • Head: Quick Release Safety

    Yes

  • Head: Camera Mounting Screw

    1/4"-20
    3/8"

  • Head: Built-in Balance Plate

    No

  • Head: Tilt Drag

    Four Grades
    1,2,3 plus 0 setting

  • Head: Tilt Range

    +90 to -75deg.

  • Head: Tilt Lock

    Yes

  • Head: Pan Drag

    Four Grades
    1,2,3 plus 0 setting

  • Head: Pan Range

    360deg.

  • Head: Pan Lock

    Yes

  • Head: Pan Bar

    1 x Pan Bar
    Right side mounted only

  • Head: Leveling Bubble/Illuminated

    Yes/Illuminated

  • Legs: Material

    Carbon fiber

  • Legs: Head Attachment Fitting

    75 mm ball base

  • Legs: Stages/Sections

    2 stages

  • Legs: Lock Type

    Rotary clamp

  • Legs: Independent Leg Spread

    No

  • Legs: Spreader

    Mid-level
    Adjustable
    Non-removable

  • Legs: Spiked/Retractable Feet

    Non-retractable spikes with removable rubber spike protectors / ant-slip pads

  • Load Capacity

    Head: 13.2 lbs (6 kg)
    Legs: 44 lb (20 kg)

  • Height Range

    Maximum: 66.9" (170 cm)
    Minimum: 31.1" (79 cm)

  • Folded Length

    33.9" (86.10 cm)

  • Dimensions (L x W)

    Quick Release Plate: 5.5 x 2" (13.97 x 5.08 cm)

  • Weight

    Head: 3.7 lbs (1.7 kg)
    Legs: 4.9 lbs (2.2 kg) - with attached mid-level spreader
    System: 8.6 lbs (3.9 kg)

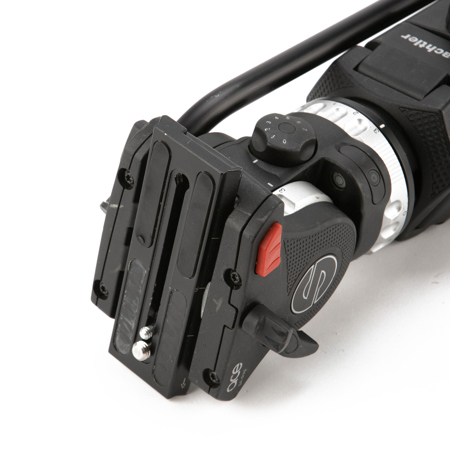

About Sachtler 1011 System Ace L MS CF Tripod Head and Legs - SKU#1691121

The Sachtler 1011 System Ace L MS CF Tripod Head and Legs is a tripod system for videographers who use cameras weighing up to 13.2pounds. The Ace L system enables broadcast-style performance while using lightweight components more suited to HDSLRs and compact camcorders. The Ace L fluid head features fiberglass-reinforced composite construction and weighs only 3.7 pounds. The two-stage carbon fiber legs with integrated mid-level spreader weighs 4.7 pounds. This makes the system lightweight at only 8.6 pounds.

ACE L Fluid Head
Fiberglass-reinforced composite construction that is both lightweight and strong
A counterbalance system with seven stepped settings for up to 13.2 pounds of counterbalance
The counterbalance system also features a zero setting for no counterbalance
Sachtler's Synchronized Actuated Drag (SA-drag) fluid drag system for both pan and tilt
The SA-drag system provides three drag grades, plus a zero setting for no drag
A panning range of 360deg. and tilt range of +90 to - 75deg.
The ACE L 5.5" long camera balance plate that allows 4.1" of sliding balance adjustment
A 75 mm ball for fast leveling and an illuminated bubble level built into the head
One mounting point for the pan bar on the right side of the head

CF Tripod Legs
Carbon fiber construction that is lightweight, strong and corrosion resistant
The 75 mm bowl base provides a stable platform to support the head and camera
The 2 stage leg design provides 31.1 to 66.9" in height range adjustment
The built-in adjustable mid-level spreader stabilizes the tripod legs on even and uneven surfaces
Rotary clamp leg locks to prevent the legs from slipping once the height is set
The Built-in foot spikes anchor the tripod in soft ground or sand
Removable anti-slip pads, provide grip on slippery surfaces and interior locations

Transport
The tripod and head collapse to 33.9" for compact transport or storage
The included transport clips secure the legs together during transport
The system packs into the included Ace L carry bag.

What's in the box:

  • Sachtler Carbon Fiber Tripod Legs
  • Sachtler Ace L Tripod Head
  • Sachtler Pan Ba r
  • Camera Plate for Ace Fluid Tripod Head
  • 1/4"-20 Camera Tie-Down Screw
  • 3/8"-16 Camera Tie-Down Screw
  • Middle Spreader Set for Ace Tripods
  • 3x Leg Securing Clips
  • Sachler Carrying Bag
  • Item Note: Missing Camera Locator Pin
