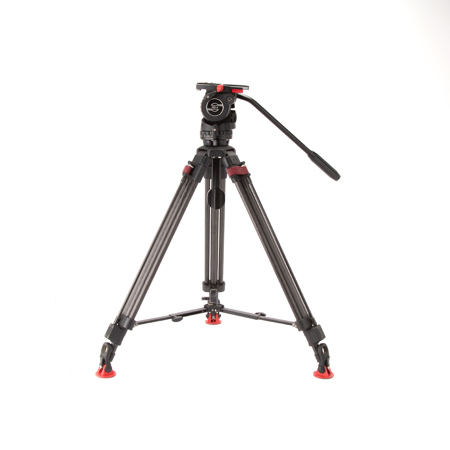

Used Sachtler DA 75 L Tripod with FSB 8 Fluid Head, Includes SP 75 Spreader & DV 75 L Bag, 62.2" Max. Height, 33lbs Tripod/2.2-22lbs Head Payload

SKU: US1951751 MFR: 0770
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$106.99

3 Year

$166.99

4 Year

$227.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sachtler DA 75 L FSB 8 Specifications

  • FSB 8 Fluid Head: Payload

    1-10kg / 2.2-22lbs

  • FSB 8 Fluid Head: Sliding range-plate

    120mm / 4.72"

  • FSB 8 Fluid Head: Counterbalance

    In 10 Steps

  • FSB 8 Fluid Head: Grades of drag

    5 each horizontal and vertical + 0

  • FSB 8 Fluid Head: Tilt range

    +90/-75deg.

  • FSB 8 Fluid Head: Temperature range

    -40deg. to +60deg. C / -40 to +140deg. F

  • FSB 8 Fluid Head: Camera fitting

    Sideload plate S

  • FSB 4 Fluid Head:Tripod/Pedestal fitting

    75mm (2.95") Bowl, integrated flat base fitting

  • FSB 8 Fluid Head: Pan bar(s)

    1, Type DV 75

  • FSB 8 Fluid Head: Level

    Self-illuminating Touch Bubble

  • FSB 8 Fluid Head: Batteries Level

    1x CR2032

  • DA 75 L Tripod: Payload

    15kg / 33lbs

  • DA 75 L Tripod: Height

    With Floor Spreader: 61-141cm / 24.02-55.51"
    With Mid-level Spreader: 78-142cm / 30.7-55.9"

  • DA 75 L Tripod: Head fitting

    75mm (2.95")

  • DA 75 L Tripod: Transport length

    82cm / 32.28"

  • DA 75 L Tripod: Extension

    Single

  • Minimum Height

    78cm / 30.7"

  • Maximum Height

    158cm / 62.2"

  • Transport length

    101cm / 39.76"

  • Weight

    FSB 8 Fluid Head: 2.15kg / 4.73lbs
    DA75L Tripod: 1.9kg / 4.18lbs
    Without Cover/Bag: 5.2kg / 11.46lbs

About Sachtler DA 75 L Tripod with FSB 8 Fluid Head, Includes SP 75 Spreader & DV 75 L Bag, 62.2" Max. Height, 33lbs Tripod/2.2-22lbs Head Payload

The Sachtler 0770 includes system components FSB 8 fluid head, DA 75 L tripod, SP 75 ground spreader and DV 75 L padded bag. The sturdy and reliable FSB 8 completes Sachtler's FSB-Range of 75mm heads, extending the payload range to 19.8 lbs (9 kg). It is well suited for (H)DV camcorders in industrial, newsgathering and education applications. The FSB 8 provides a 10-stage counterbalance, as well as five steps of drag (plus 0) for both tilt and pan. The fluid head is engineered with Sachtler's well-known technology, including its patented counterbalance switch mechanism, Speedbalance and Sideload technology, which allows quick mounting and unmounting of the camcorder for on-the-go assignments.

With its compact dimensions, the DA 75 L tripod is an indispensable companion. The proven Touch Go system enables fast changeover, so camera operators can go from using the tripod to shooting from the shoulder within a matter of seconds. In combination with fluid heads FSB 2 and FSB 6, this tripod system is ideal for MiniDV camcorders starting from around 1 kg / 2.2 lbs.
