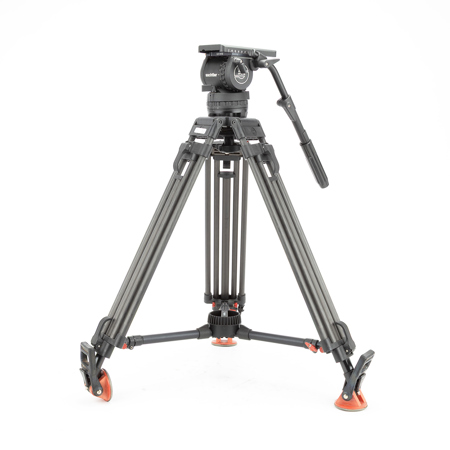

Sachtler DV 12 TB Touch Bubble Pro Video Fluid Head with Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs with 100mm Bowl. Specifications

  • Max load Capacity

    30.8 lbs /16.5 kg (depending on COG Center Of Gravity from min. 11.1 lbs.)

  • Head height

    4 inches / 100 mm (COG Center Of Gravity Height)

    Touch bubble illumination: Adjustable between 20 and 45 seconds

    Touch bubble battery 3 x 625 U or LR 9

  • Quick Release

    #1064 Quick Release / Wedge Plate

  • Pan

    360o with pan lock

  • Tilt

    +90° to -75° even with max. payload

  • Female Thread size (Connect to Tripod)

    100mm 3.9" Ball

  • Weight

    2.8 kg / 6.2 lb

  • Notes

    Grades of drag: 5 horizontal , 5 vertical, and 0
    Temperature range: -40 to +60° C / -40 to +140° F
    Pan bar: One, with mounting diameters of 18 & 32 mm / 0.71 & 1.26

About Sachtler DV 12 TB Touch Bubble Pro Video Fluid Head with Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs with 100mm Bowl.

DV 12 TB... The answer to the highly demanding world of digital reporting. The DV 12 TB delivers smooth camera movement that you can depend on. Even with lightweight cameras and long focal distances, the DV 12 TB balances everything. Its damping system offers five step damping so you can smoothly pan and tilt your camera with complete security even sudden, fast panning won't upset your picture. The DV 12 TB features all the advantages of the new DV 15 fluid head, with a lower payload.

The fluid head DV 12 TB with self-illuminating Touch Bubble is no different from its state-of-the-art big brother the DV 15 apart from its payload, which at 12 kg supports an extensive range of digital camcorders for which the head is suitable.
