Super-heterodyne with digital demodulation
True diversity (2 x 2 receivers)
Two
Digital modulation: Digital 9000, long-range mode Wideband FM: HiDyn plus, HDX
470 to 654MHz
184MHz, in steps of 5kHz
< -90 dBm (digital modulation)
< -94 dBm (wideband FM) at 52dB audio SNR
Typ. 70dB
40 to 20,000Hz (+/- 3.0 dB)
Typ. 110dB (A)
Typ. 0.03% (digital modulation)
Typ 0.2% (wideband FM)
3.0ms (AES3, digital modulation)
1.5ms (AES3, wideband FM)
5-pin mini-XLR-M, balanced
MAIN 1 and 2, digital: 0 dBFs, AES3, 48 kHz, 24 bit
MAIN1 and 2, analogue: -22 dBu to +8 dB (adjustable)
AUX 1 and 2, analogue: -22 dBu to +8 dBu (adjustable)
Micro-USB socket, Type B

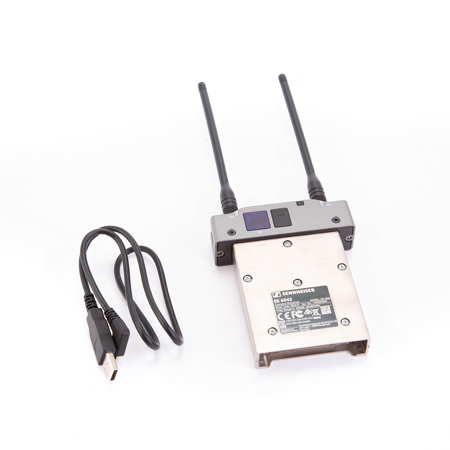

The EK 6042 is a true diversity two channel receiver. It is designed to fit into all standard receiver slots on cameras. Its highly compatible to a wide range of Sennheiser wireless microphones be it analog or digital and can connect to virtually every Sennheiser wireless system including G3, 2000 series, 3000/5000 series and digital 9000. With the built-in web server, setup is easily managed using any browser including imports and exports of the entire configuration.
The EK 6042 is SuperSlot-compatible and works seamlessly with your existing equipment. Same for ARRI, Panasonic and Sony. The optional accessories like backpanel adapter and battery pack makes it possible to use the EK 6042 stand alone as well. The automatic configuration makes it possible to set up any microphone in less than 5 seconds.
