Sennheiser EM 2050 Specifications

  • Frequency Range

    AW: 516-558MHz

  • Carrier Frequencies

    Max. 3000

  • Presets

    Max. 64

  • Switching Bandwidth

    Max. 75 MHz

  • Peak Deviation

    +/- 48 kHz

  • Squelch Threshold

    Off, 5 - 25 dBuV Can be set in 2 dB steps

  • Intermodulation Spacing

    = 75 dB

  • Antenna Connector

    2 BNC (50 OHM)

  • Cascadable

    2 BNC (50 OHM)

  • Gain

    0 dB +/-0,5 dB Based on antenna inputs

  • Compander

    HDX

  • Frequency response

    25 - 18000 Hz

  • Signal-to-noise Ratio

    > 120 dB(A)

  • THD, Total Harmonic Distortion

    < 0.9 %

  • Audio-XLR Connector

    2 x XLR-3 + 2 x 6,3 mm Jack

  • Audio output level (balanced)

    +18 dBu max Setting range: 49 dB in 1 dB steps + 6 dB gain reserve

  • Booster

    12 V DC, 2 x 200 mA Short-circuit proof

  • Power supply

    100 - 240 V AC, 50/60 Hz

  • Operating Temperature

    -10 deg.C - +55 deg.C

  • Current Consumption

    Max. 0.25 A

  • Dimensions

    217 x 483 x 43mm / 8.54 x 19.02 x 1.69"

  • Weight

    2900g / 102.3oz

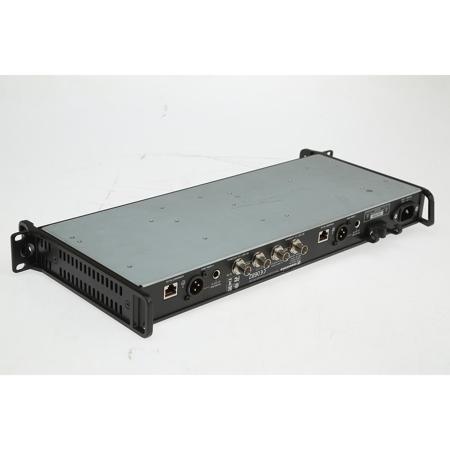

About Sennheiser EM 2050 Stationary Twin Receiver - AW (516-558MHz) SKU#1531256

The Sennheiser EM 2050 Professional Microphone Twin Receiver (AW 516-558MHz Frequency Range) uses true diversity technology for superior performance with 5 windows of up to 75MHz in the UHF range. This transmitter can be synchronized via infrared or connected to your network via Ethernet for remote monitoring and control with Sennheiser Wireless System Manager software. With the EM 2050's twin receiver, it is possible to setup systems with up to 16 channels without external splitter.

Sennheiser EM 2050 Stationary Twin Receiver - AW (516-558MHz) SKU#1531256 Features

  • Rugged 19" all-metal housing with integrated power supply unit
  • Up to 3000 frequencies in up to 75 MHz switching bandwidth
  • 20 fixed frequency bands with up to 64 compatible presets
  • 6 banks each with up to 64 tunable channels
  • True diversity technology for best reception quality
  • Integrated antenna splitter for cascading up to 8 devices without using additional splitters
  • Pilot tone squelch for interference-free operation
  • Scan feature within the channel band system
  • Continuous scanning together with Sennheiser's Wireless Systems Manager
  • Frequency setting in 25 kHz steps
  • Squelch setting always visible on the display
  • Antenna cables for active antenna supply
  • Transformer-balanced audio outputs
  • HDX noise reduction system with signal-to-noise ratio less than 120 dB(A)
  • Ethernet for connecting to a PC
  • Monitoring and control using Sennheiser WSM PC software
  • User-friendly menu interface with two-color backlit graphic display (red as a warning)
  • Transmitters can be configured from the receiver menu
  • Transmitters can be synchronized over the infrared interface
  • 4 selectable equalizer presets
  • Soundcheck mode for monitoring transmission conditions
  • Adjustable headphone connection

What's in the box:

  • EM 2050 Stationary Twin Receiver
  • 2x Rack Mount Bracket with Handle
  • Power Cable
  • Item Note: 1x Handle from Rack Mount Bracket is Dented and Cracked
