Sennheiser EW 100-ENG G3 Specifications

  • Receiver: RF Carrier Frequency Range

    A1: 470-516 MHz

  • Receiver: Working Range

    Maximum 490' (Approx.)

  • Receiver: Overall Frequency Response

    25 Hz - 18 kHz

  • Receiver: Signal-to-Noise Ratio

    Greater than 110 dB

  • Receiver: Of Channels

    1680

  • Receiver: Type of Outputs

    Standard 3.5 mm Mini

  • Receiver: Headphone Monitoring

    No

  • Receiver: Power Requirements

    2x 1.5 V AA Batteries 6-10 Hours

  • Receiver: Mounting Options

    Camera Shoe Mount

  • Receiver: Antenna Type

    Single Flexible Antenna (M3 Type)

  • Transmitter: Of Channels

    1680 (max. 20 Presets)

  • Transmitter: Frequency Range

    A1: 470-516 MHz

  • Transmitter: Type of Input Connector

    Unbalanced 1/8" (3.5 mm), Mic/Line

  • Transmitter: Frequency Response

    25-18,000 Hz (Line)

  • Transmitter: Compander

    HDX

  • Transmitter: Total Harmonic Distortion

    0.9%

  • Transmitter: Signal to Noise Ratio

    > 110 dB(A)

  • Transmitter: RF Output Power

    30 mW

  • Transmitter: Switching Bandwidth

    42 MHz

  • Transmitter: Peak Deviation

    +/- 48 kHz

  • Transmitter: Compliance

    ETS 300422, ETS 300445, CE, FCC

  • Transmitter: Input Voltage Range

    1.8 V line

  • Transmitter: Battery Type/Approx. Life

    2x AA Battery

  • Transmitter: Mute Switch

    Yes

  • Transmitter: Level Control

    Sensitivity

  • Transmitter: Display

    Yes, LC Display: Channel, Low Battery Warning

  • Mic: Transducer

    Electret Condenser

  • Mic: Polar Pattern

    Omnidirectional

  • Mic: Frequency Response

    30 Hz - 20 kHz

  • Mic: Sensitivity

    20 mV/Pa (in free field, no load at 1 kHz)

  • Mic: Equivalent Noise Level

    36 dB

  • Mic: Maximum Sound Pressure Level (SPL)

    130 dB (passive)

  • Mic: Power Requirements

    Phantom Power Provided by Wireless Transmitter

  • Mic: Operating Voltage

    7.5 V (stand alone)

  • Mic: Output Connector

    1/8" (3.5 mm) Mini-Jack (Unbalanced)

  • Mic: Applications

    Speakers, Hands-free vocals, broadcast, live performance, wireless videography, etc.

  • Mic: Cable Length

    5.25' (1.6 m)

  • Dimensions

    Receiver: 82 x 64 x 24mm / 3.23 x 2.52 x 0.94"
    Transmitter: 82 x 64 x 24mm / 3.23 x 2.52 x 0.94"

  • Weight

    Receiver: 160g / 5.64oz (Approx.)
    Transmitter: 160g / 5.64oz (Approx.)

Related Articles & Videos

The Art of Audio at Adorama

The Art of Audio at Adorama

Sound: the thorn in the side of freelance videographers and filmmakers, which separates the amateur film from the professional. Learn the basics of audio equipment..

Read more
Adorama Pro 101: The Basics - Mic vs. Mic

Adorama Pro 101: The Basics - Mic vs. Mic

Adorama Pro 101: The Basics is a retro look at the terms and definitions of today’s production technology. In Chapter 3, we discuss the differences in microphones. From the condenser to the cardioid, just what does separate a handheld microphone from, say, a lavalier? Watch on and find out.

...
Read more
Intermediate DSLR Audio: Getting the Shot with Corey Rich

Intermediate DSLR Audio: Getting the Shot with Corey Rich

As the director of your next motion project, you have to focus on telling a great story, shooting great visuals, and recording high-quality audio. It’s a lot of hats to wear, but not impossible to pull off. In the second installment of this DSLR audio Tech Tip, photographer and...

Read more

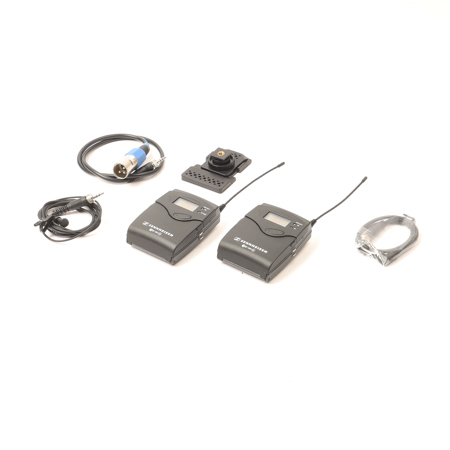

About Sennheiser ew 112-p G3 Camera-Mount Wireless Microphone System, (470-516 MHz)

About Sennheiser EW 100-ENG G3

Overview

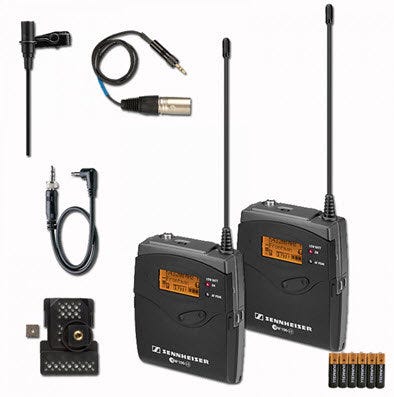

Fast, flexible and professional: these characteristics make the ew 112-p G3 the perfect fit for every ambitious reporting team seeking both portability and great sound quality. The nearly invisible clip-on, ME2, omni-directional microphone transmits its signal via bodypack transmitter with mute function and a portable, battery-powered adaptive-diversity receiver. The receiver and transmitter are lightweight and easy to operate, yet rugged and packed with features.

Overview

Fast, flexible and professional: these characteristics make the ew 112-p G3 the perfect fit for every ambitious reporting team seeking both portability and great sound quality. The nearly invisible clip-on, ME 2, omni-directional microphone transmits its signal via bodypack transmitter with mute function and a portable, battery-powered adaptive-diversity receiver. The receiver and transmitter are lightweight and easy to operate, yet rugged and packed with features.

Sennheiser ew 112-p G3 Camera-Mount Wireless Microphone System, (470-516 MHz) Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • Adaptive-diversity reception for high reception quality
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter and receiver feature battery indication in 4 steps
  • Programmable Mute function
  • Contacts for recharging BA 2015 accupack directly in the transmitter or receiver
  • Wide range of accessories adapts the system to any requirement
