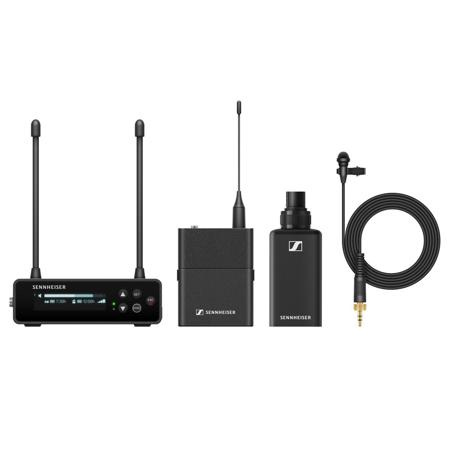

Used Sennheiser EW-DP Digital Wireless Portable System with ME-2 Lavalier Microphone and SKP Plug-On Transmitter, Q1-6: 470.2-526 MHz

SKU: US1836698

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sennheiser EW-DP & ME 2 + SKP Specifications

System
  • Audio link frequency range

    Q1-6: 470.2 - 526 MHz

  • Low Energy frequency range

    Bluetooth: 2402 - 2480 MHz

  • Audio frequency response

    20 Hz - 20 kHz (-3 dB) @ 3 dBfs

  • Audio THD

    <= -60 dB for 1 kHz @ -3 dBfs input level

  • Dynamic range

    134 dB

  • System latency

    1.9 ms

  • Operating temperature

    14 Degree F - 131 Degree F (-10 Degree C - +55 Degree C)

  • Relative humidity

    5 - 95 % (non-condensing)

EW-D SK Bodypack Transmitter

Jump to...
  • Input voltage

    2.0 - 4.35 V

  • Input current

    < 300 mA

  • Power supply

    2x AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack

  • Occupied bandwidth

    200 kHz

  • Transmit power (radiated)

    Audio link: 10 mW ERP
    (Range Y1-3: 12 mW ERP)
    BLE: max. 10 mW EIRP

  • Dimensions

    2.48 x 3.15 x 0.79" (63 x 80 x 20mm) (without antenna)

  • Weight

    Approx. 4.23 oz (120g) (without batteries)

EW-DP EK Receiver

Jump to...
  • Input voltage

    Approx. 1.8 - 4.35 V

  • Input current

    Typ. < 250 mA / Max. < 400 mA (BA 70)
    Typ. < 400 mA / Max. < 750 mA (2x AA batteries)
    < 300 mA@5 V (USB-C standalone)

  • Power Supply

    2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):
    5V / 1500mA
    9V / 900mA
    12V / 700mA

  • Transmit power (radiated)

    BLE: max. 10 mW EIRP

  • Audio output power

    < 2 dBV max. (high level) / < 4dBU max (high level)

  • Headphone Output

    < 50 mW into 16 Ohms

  • Dimensions

    3.39 x 2.64 x 1.1" (86 x 67 x 28mm)

  • Weight

    Approx. 4.93 oz (140g) (without antennas and power supply)

ME 2 Lavalier Microphone

Jump to...
  • Transducer principle

    Pre-polarized condensor microphone

  • Pick-up pattern

    Omni-directional

  • Sensitivity

    17 mV/Pa (free field, no load) (1 kHz)

  • Max. SPL at 1 kHz

    130 dB

  • Frequency response

    50 to 18,000 Hz

  • Equivalent noise level

    32 dB (A-weighted)

  • Connector

    3.5mm jack

  • Supply voltage

    7.5 V

  • Cable length

    Approx. 62.99" (1.60m)

EW-D SKP Plug-On Transmitter

Jump to...
  • Recording

    24-bit, 48 kHz on-board recording via micro-SD card

  • Input

    XLR and Locking 3.5mm

  • Input voltage

    +48V phantom power

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithiun-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

About Sennheiser EW-DP Digital Wireless Portable System - Q1-6: 470.2-526MHz #1836698

Building on Sennheiser's extensive knowledge amassed from decades of wireless excellence, EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. Rounding out the award-winning Evolution Wireless Digital series, this fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.

At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for those new to wireless and seasoned professionals alike. Convenient features like remote Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and at-a-glance system status at any angle in any light. Smart Notifications help to troubleshoot your system and suggest solutions for various challenges you may encounter. Versatile, magnetically stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

The EW-DP ENG Set includes both the SK bodypack transmitter with an ME 2 omnidirectional lavalier as well as the SKP plug-on transmitter for the most flexibility of any EW-DP system. The SKP transmitter turns any wired microphone into a wireless option. Features include an XLR input with +48V phantom power, a 3.5 mm locking input, and a micro-SD card slot for 24-bit, 48 kHz on-board recording. From boom mics to handhelds and even lavaliers, this versatile tool acts as a problem solver when you need it most.

Capture your full creative vision with EW-DP. Setup simplicity and digital clarity put time on your side so you can focus on what matters most. After all, production has enough challenges; sound doesn't need to be one of them.

Sennheiser EW-DP Digital Wireless Portable System - Q1-6: 470.2-526MHz #1836698 Features

  • Fully digital UHF wireless microphone system for video applications
  • Integrated Bluetooth for synchronization and control
  • Smart Notifications for troubleshooting and system guidance
  • Intelligent battery management provides operating time (hours:minutes)
  • Extended battery life: up to 12h on transmitter, 7h on receiver
  • Magnetically stackable components for versatile mounting
  • Industry leading 134 dB dynamic range for distortion free transmission
  • Up to 56 MHz bandwidth for flexibility in any RF environment
  • Exceptionally low latency (1.9 ms)
  • External charging and powering via USB-C (receiver only)
  • Smart Assist app for monitor & control
  • Plug-on transmitter features XLR & 3.5mm inputs, +48V & recording via microSD

What's in the box:

  • EW-DP EK Digital Wireless Portable Receiver
  • EW-D SK Digital Bodypack Transmitter
  • EW-D SKP Digital Plug-On Transmitter
  • Mounting Hardware
  • BA 70 Li-Ion Battery and 2x AA Battery
  • Locking 3.5mm TRS Plug to 3.5mm TRS Plug Cable
  • Locking 3.5mm TRS Plug to XLR Plug Cable
  • USB-C Charging Cable
  • Item Note: Missing ME 2 Omnidirectional Lavalier Microphone.
