Used Sennheiser XSW 1-ME3-A Wireless Headmic Set, Includes SK-XSW Bodypack Transmitter, ME3-II Cardioid Condenser Headmic, EM-XSW 1 Switching Diversity Receiver, Frequency Band A: 548-572MHz

SKU: US1658528

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sennheiser XSW 1-ME3-A Specifications

  • Receiver: Power Supply

    12 VDC nom. / 300mA

  • Receiver: AF Frequency Response

    50-16000Hz (-3dB)

  • Receiver: Principle

    Double superheterodyne

  • Transmitter: Power Supply

    2x AA size batteries, 1.5V

  • Transmitter: Adjustment Range

    0 to -30dB, adjustable in 10dB steps

  • Microphone: Type

    Condenser

  • Microphone: Total Harmonic Distortion

  • Microphone: Pick-Up Pattern

    Cardioid

  • Microphone: Signal-To-Noise Ratio

    >/-103 dBA

  • Microphone: RF Output Power

    10mW

  • Microphone: Switching Bandwidth

    Up to 24MHz

  • Microphone: Modulation

    Wideband FM

  • Microphone: Output Voltage

    1/4" (6.3mm) Jack Socket (Unbalanced): +6 dBu, XLR Socket (Balanced): +12 dBu

  • Microphone: Housing

    Rugged ABS Housing

  • Microphone: Frequency

    8 frequency banks, each with up to 10 factory-preset channels

  • Microphone: Frequency Range

    A: 548-572MHz

  • Microphone: Sensitivity

    <3 MuV at 52dB (A) rms S/N

  • Microphone: SPL for Peak Deviation

    150dB

  • Microphone: Squelch

    Adjustable from 3 dBMuV to 28 dBMuV (combined with pilot tone)

  • Microphone: Synchronization

    2.4GHz, Low Power OQPSK (only active during synchronization)

  • Microphone: Input Sensitivity

    1.5mV / Pa

  • Microphone: Audio Adjustment Range

    45dB, adjustable in 5-dB steps

  • Microphone: Line / Mic Level

    20dB, switchable

  • Microphone: Operating Temperature Range

    0 to 40 deg. C (32 to 104 deg. F)

  • Microphone: Storage Temperature Range

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Microphone: Diversity Reception

    Antenna switching diversity via internal antennas

  • Dimensions

    Receiver: Approx. 200 x 42 x 127mm (7.87 x 1.65 x 5.00")
    Transmitter: Approx. 71 x 96 x 28mm (2.80 x 3.78 x 1.10")

  • Weight

    Receiver: Approx. 340g (11.99oz)
    Transmitter: Approx. 95g (3.35oz)

About Sennheiser XSW 1-ME3-A Wireless Headmic Set - A: 548-572MHz SKU#1658528

Enhance your performance with the Sennheiser XSW 1-ME3-A Wireless Headmic Set, meticulously engineered for first-time users and professionals with budget considerations who do not want to compromise on quality. This high-quality wireless microphone system is designed for seamless integration into presentations, offering a professional and innovative solution for those seeking hands-free audio delivery.

The set includes the SK-XSW bodypack transmitter, renowned for its compact design and durable construction, ensuring reliable performance even in the most demanding environments. The ME3-II cardioid condenser headmic provides crystal-clear audio capture with its precise cardioid pickup pattern, minimizing background noise and feedback for a focused and impactful presentation.

Experience the convenience of the EM-XSW 1 switching diversity receiver, which boasts an intuitive design with integrated antennas for a sleek appearance and reduced setup complexity. The receiver's antenna-switching diversity reception ensures a stable and high-quality signal, while the automatic frequency management and synchronization facilitate a quick and effortless setup process.

With selectable UHF frequencies within a large bandwidth of 548-572MHz, this system offers flexibility and adaptability to various venues and situations. The ability to operate up to 10 compatible channels simultaneously allows for multiple presenters or performers to use the system without interference, making it a reliable choice for events of all sizes.

The XSW 1-ME3-A set is crafted with a durable plastic receiver housing and features icon-based indicators for easy operation. The rack-mount receiver is a testament to Sennheiser's commitment to providing professional-grade equipment that can be easily organized and installed in a variety of settings.

Whether you're a singer, presenter, or instrumentalist, the XSW 1-ME3-A Wireless Headmic Set from Sennheiser is designed to free you from the constraints of cables, allowing you to focus on your performance with confidence. With its excellent live sound, robust build, and reliable transmission, this system is a testament to Sennheiser's decades of German engineering excellence, bringing their signature sound quality within reach for a broader audience.

What's in the box:

  • Sennheiser SK-XSW Bodypack Transmitter
  • ME3-II Cardioid Condenser Headmic

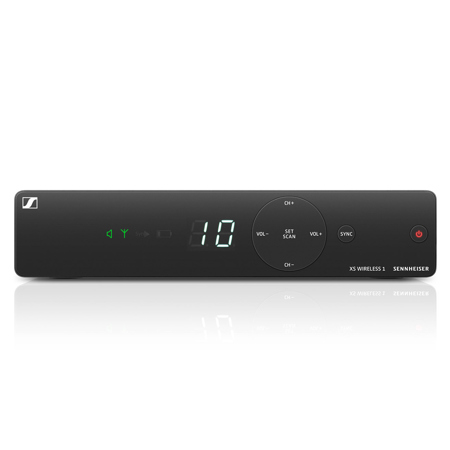

  • EM-XSW 1 Switching Diversity Receiver
  • NT 12-5 CW Power Supply
  • 2x AA Batteries -Manuals
  • Original Box
