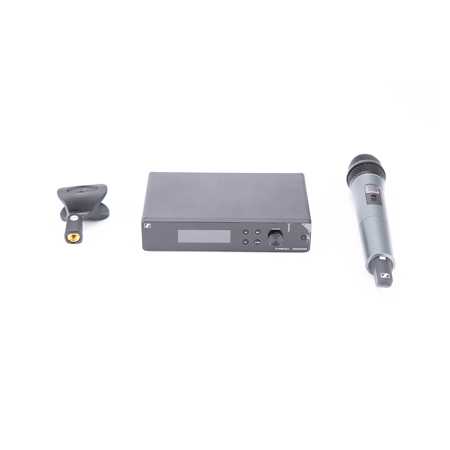

Used Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule, Includes EM-XSW 2 Receiver, SKM 835-XSW Handheld Transmitter, MZQ1 Microphone Clamp, Frequency Band A: 548 to 572MHz

SKU: US1860210

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sennheiser XSW 2-835-A Specifications

  • Receiver: Power supply

    12 V DC nom. / 300 mA

  • Receiver: Housing

    Metal, microphone: robust ABS

  • Receiver: AF frequency response

    50 to 16,000 Hz (-3 dB)

  • Microphone Type

    Dynamic

  • Microphone: Frequency response

    50 to 16,000 Hz (-3 dB)

  • Microphone: THD

    = 0.9%

  • Microphone: Pick-up pattern

    Cardioid

  • Microphone: Signal-to-noise ratio

    >= 103 dBA

  • Microphone: RF output power

    10 mW

  • Microphone: Switching bandwidth

    Up to 24 MHz

  • Microphone: Operating time

    Approx. 10 hrs

  • Microphone: Modulation

    Wideband FM

  • Microphone: Output voltage

    1/4" (6.3mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

  • Microphone: Frequency

    8 frequency banks, each with up to 12 factory-preset channels

  • Microphone: Frequency range

    A: 548-572 MHz

  • Microphone: Sensitivity

    < 3 MuV at 52 dB(A)rms S/N

  • Microphone: Squelch

    Switchable from 3 dBMuV to 28 dBMuV (via Pilot Tone)

  • Microphone: Synchronization

    2.4 GHz, Low Power OQPSK (only active during synchronization)

  • Microphone: Line

    20 dB, switchable

  • Microphone: Input sensitivity

    1.5 mV / Pa

  • Microphone: Adjustment Range Transmitter

    0 to -30 dB, adjustable in 10 dB steps

  • Microphone: Audio adjustment range

    40 dB, adjustable in 5-dB steps

  • Microphone: Operation Temperature Range

    0 to +40 deg. C (32 to 104 deg. F)

  • Microphone: Storage Temperature Range

    -20 to +70 deg. C (-4 to 158 deg. F)

  • Microphone: Receiver Principle

    Double super heterodyne

  • Microphone: Diversity principle

    True Diversity

  • Microphone: Power supply

    2 AA size batteries, 1.5 V

  • Microphone: AF frequency response

    80-14,000 Hz

  • Dimensions

    Receiver (Approx.): 200 x 42 x 127mm (7.87 x 1.65 x 5.00")
    Microphone: 260 x 50mm (10.24 x 1.97")

  • Weight

    Receiver (Approx.): 680g (23.99 oz)
    Microphone: 245g (8.64 oz)

Related Articles & Videos

Which Sennheiser XSW Wireless System is the One for You?

Which Sennheiser XSW Wireless System is the One for You?

Discover Sennheiser XSW wireless systems: professional-grade clarity and reliability for musicians and presenters.
Read more

About Sennheiser XSW 2-835-A Wireless Microphone System - A: 548-572MHz SKU#1860210

Because clarity and performance are paramount for vocalists and presenters, the XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule stands out as a superior choice for professionals seeking a robust and versatile audio solution. This all-in-one system, crafted by the esteemed Sennheiser brand, is renowned for its durable construction and high-quality sound reproduction, ensuring reliable performance even in the most demanding live stage conditions.

The system boasts an intuitive LCD display, providing users with a wealth of manual options to fine-tune their audio experience. With 12 compatible channels available within a stable UHF band (548 to 572MHz), the XSW 2-835-A offers exceptional flexibility, allowing for seamless integration into a variety of live performance environments, from concerts and theater productions to conferences and worship services.

At the heart of the system is the Sennheiser evolution microphone capsule e835, a superior dynamic, cardioid microphone renowned for its ability to deliver clear and powerful sound while effectively minimizing background noise. This makes the XSW 2-835-A an ideal choice for performers and speakers who require a microphone that can perform under pressure and capture the nuances of their voice.

The True Diversity receiver, encased in a rugged metal housing, ensures a stable and interference-free signal, providing peace of mind during live performances. Additionally, the inclusion of a rackmount kit facilitates easy installation and integration into existing audio setups.

The XSW 2-835-A system also includes the SKM 835-XSW Handheld Transmitter, designed for comfort and ease of use, and the MZQ1 Microphone Clamp for secure and flexible microphone positioning. This comprehensive package embodies the professional, high-quality, and reliable standards that users have come to expect from Sennheiser products, making it a top-tier choice for anyone in need of a wireless microphone system that can adapt to their evolving needs.

Sennheiser XSW 2-835-A Wireless Microphone System - A: 548-572MHz SKU#1860210 Features

  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via
  • Remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels

What's in the box:

  • Sennheiser EM-XSW 2 Receiver with Metal Housing
  • SKM 835-XSW Handheld Transmitter
  • MZQ1 Microphone Clamp
  • NT 12-5 CW Power Supply
  • Rackmount Kit
  • Protective Pouch
  • User Manual
  • Item Note: Missing 2x AA Batteries.
