Used Shape Baseplate and Camera Cage with Handles, Matte Box, Follow Focus Pro for Canon C70
SKU: US1500396
This item is no longer available.
Share:
Overview
Compare
Specs
Protection

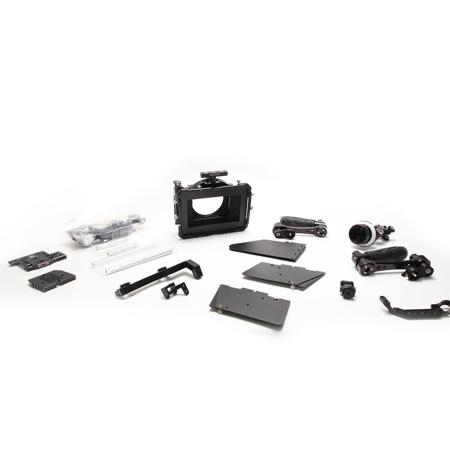

About Shape Baseplate and Camera Cage - SKU#1500396
Because professional videography demands precision, durability, and versatility, this Baseplate and Camera Cage with Handles, Matte Box, Follow Focus Pro for Canon C70 is the perfect solution. Crafted from high-quality CNC aluminum, this kit is designed to add functionality and handheld convenience to your Canon C70 camera.
The L-shaped handle, constructed from anodized aluminum, is lined with a smooth, wooden finger grip made from Canadian maple. It features the innovative SHAPE Push-Button Technology, allowing you to balance the weight and rotate the handle for a 360-degree axis. The handle is equipped with numerous 3/8"-16 ARRI-style anti-twist accessory threads and a cold shoe designed to receive a spring-loaded cold shoe foot. This feature enables you to mount accessories like a monitor, a video light, or a microphone weighing up to 4.4 lb.
The kit includes a form-fitting side plate, a top plate, and an adapter plate that connect together with a side post to protect your camera. It is designed with several 1/4-20 and 3/8-16 threaded holes with ARRI standard anti-rotating holes. The top plate is also designed to fit the factory Canon C70 top handle. An offset Cold Shoe fits perfectly the native microphones bracket of the camera. A detachable lock system to secure and hold in place your 4K FULL HDMI cable is included.
The compact REVOLT shoulder baseplate (BP20) is a lighter version of the REVOLT VCT universal baseplate (BP10). It is designed with 2 standard Arri rosettes for handles mount and a standard quick release adapter plate compatible with most VCT tripod plates. There are also protective rubber pads on top of the plate to protect your camera.
The kit also includes the FFPRO Follow Focus Pro, a professional follow focus unit made from sleek black anodized aluminum. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is.
The MCF456 4x 5.6 Carbon Fiber Swing-Away Matte Box 15 mm LW and 19 mm Studio Rod Mount adds filters and light control to your camera rig. The lightweight matte box features a (2) 4 x 5.6" filter stages and the second stage independently rotates 360 Degree.
This kit is the ultimate solution for professional filmmakers using a Canon C70 camera, offering a sturdy, reliable, and high-quality support system for stable and secure filming.
Shape Baseplate and Camera Cage - SKU#1500396 Features
- C70CAG Canon C70 Camera Cage Features
- Form fitting top, side and bottom plates
- Several anti rotating threaded holes (3/8-16, 1/4-20)
- Top plate compatible with the factory Canon C70 handle
- Made of CNC lightweight aluminum
- Mounting holes for securing the camera to a tripod plate
- Rubber pads at the top of the base to protect your Canon C70
- BP20 Compact REVOLT Shoulder Baseplate Features
- Made of CNC Machined Aluminum
- Bracket system with magnet let you swivel the baseplate
- Match your camera's optical center
- Protective rubber pads to protect your camera
- Front and rear 15 mm rod bloc system with safety ratchet knob
- Come with 2 pairs of 15 mm rods (8", 4")
- Designed with 2 standard Arri rosettes for handles mount
- Comfortable shoulder pad made of slip-free material
- Sophisticated tool box to store your extra screws and Allen key
- Quick release adapter plate for VCT tripod plate mount
- HAND15 Compact Quick Handle Arri Rosette Black Features
- Quick release handgrips with multiple points of adjustment
- Black Push-button (HAND15 SHADOW)
- Compatible with Arri Rosettes
- Patented Push-button technology
- Push, adjust, release, and then its lock
- Rubber handgrips for stability and precision
- Stainless steel locking mechanism for durability
- 1/4-20 and 3/8-16 threaded holes with locking stoppers
- CNC machined aluminum
- FFPRO Follow Focus Pro Features
- Snap-On 15 mm rods for quick attachment, removal, and repositioning
- Reliable build quality with CNC Machined Aluminum Parts
- Adjustable gear arm which puts the gear at the optimal position
- Designed with standard accessory port for whips or cranks
- 2x 0.8 Pitch Gears: 28 & 43 teeth
- two adjustable hard stops
- Removable Marking Disc
- Knob is not reversible
- MCF456 4 x 5.6 Carbon Fiber Swing-Away Matte Box Features
- Swing-away design for quick and easy lens changes
- Compatible with 15 mm LW and 19 mm Studio rods
- Rod adapters are height-adjustable to match the size of your lens
- Top handle with five threaded screws to add attachments
- Lightweight, Carbon Fiber Construction
- 2x 4 x 5.6" filter stages, 2nd stage independently rotates 360 degrees
- 2x 360 Degree Rotating Aluminum Filter Holders (4 x 5.6") with easy sliding mechanism
- 1x French Flag, (2) Side Wings and 1x Front Sunshade to reduce flare
- 4x Lens Adapters (80, 95, 104 & 114 mm)
- 1x Black-Out Fabric Knicker that wraps around the barrel of your lens to block out any light completely
- 15TUBE4 15 mm 4" Rods Features
- Pair of 15 mm Aluminum Rods (4")
- 15TUBE8 15 mm 8" Rods Features
- Pair of 15 mm rods 8" long
- Fit studio and LWS 15 mm rod clamps
- Machined from hollow aluminum tubes
- Chamfered ends that make it easier to insert into 15 mm rod clamps
