Used Shure BLX24/SM58 Handheld Wireless System. (512.125-541.800MHz)

SKU: US1960221 MFR: BLX24/SM58-H9
Earn VIP Reward Points

Key Features

  • Professional-grade BLX24/SM58 Handheld Wireless System from Shure
  • Features BLX2/SM58 handheld transmitter with integrated SM58 microphone cartridge for clear audio
  • One-touch QuickScan frequency selection for best open frequency identification
  • Industry-standard SM58 microphone, designed for targeted sound capture & minimal background noise
  • Versatile and user-friendly system, ideal for stage performances and professional use
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure BLX24/SM58 Specifications

  • Receiver: Output

    1x XLR Output
    1x 1/4" (6.35mm) Output

  • Receiver: Output Impedance

    XLR: 200Ohms
    1/4": 50Ohms

  • Receiver: Audio Output Level

    XLR Connector: -27dBV into 100kOhms Load (Reference +/-33kHz with 1kHz Tone)
    1/4": -13dBV into 100kOhms Load (Reference +/-33kHz with 1kHz Tone)

  • Receiver: RF Sensitivity

    -105dBm for 12dB SINAD, Typical

  • Receiver: Image Rejection

    >50dB, Typical

  • Receiver: Housing

    Molded ABS

  • Receiver: Power Requirement

    12 to 15V DC at 160mA, Supplied by External Power Supply (Tip Positive)

  • Receiver: Frequency Band

    H9: 512.125-541.800MHz

  • Transmitter: Audio Input Level

    0dB Gain: -20dBV Maximum
    -10dB Gain: -10dBV Maximum

  • Transmitter: Gain Adjustment Range

    10dB

  • Transmitter: RF Output

    10mW, Typical (Varies by Region)

  • Transmitter: Power Requirements

    2x LR6 AA Batteries, 1.5V Alkaline

  • Transmitter: Housing

    Molded ABS

  • Transmitter: Frequency Band

    H9: 512.125-541.800MHz

  • Mic: Type

    Dynamic

  • Mic: Polar Pattern

    Cardioid

  • Mic: Frequency Response

    50 to 15,000Hz

  • Mic: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Mic: Sensitivity

    54.5dBV/Pa (1.85mV) at 1000Hz Open Circuit Voltage

  • Impedance

    Rated impedance is 150Ohms (300Ohms actual) for connection to microphone inputs rated low impedance

  • Mic: Connector

    Three-pin professional audio connector (male XLR type)

  • Dimensions

    Receiver: 40 x 188 x 103mm / 1.57 x 7.40 x 4.06"
    Transmitter: 2.1 x 8.8" / 53.34 x 223.52mm
    Mic (L x W): 162 x 51mm / 6.38 x 2.01"

  • Weight

    Receiver: 241g / 8.50oz
    Transmitter: 7.7oz / 218.29g
    Mic: 10.5oz / 297.67g

About Shure BLX24/SM58 Handheld Wireless System. (512.125-541.800MHz)

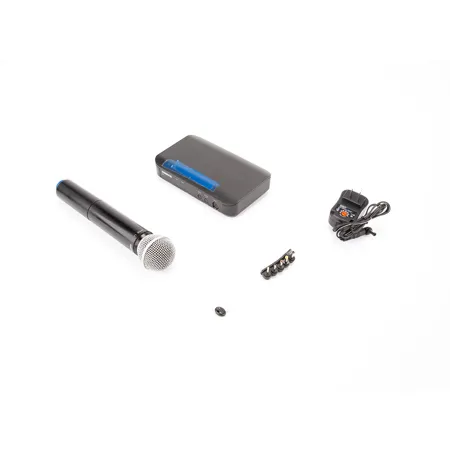

The Shure BLX24/SM58 Wireless Vocal System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4 tabletop single-channel receiver, legendary SM58 handheld transmitter, microphone clip, power supply, 2 AA batteries, and user guide.

Superior Audio - Perform with Confidence
Get the show going with no wires attached. Professional Shure sound for every band and any vocal need.

Reliable Signal - Extend your range
With a range of up to 300 feet (100m), you can take the show into the crowd without interruption.

Easy Setup - Own the stage
BLX will have you up and running in record time with one-touch scan and selection.

Battery Life - 14 hours of power
Because BLX transmitters get up to 14 hours of power from a single pair of AA batteries, the show can go on and on (and on).

Systems Expansions - Run up to 12 channels per frequency band
You'll probably need to find a bigger stage before you run out of channels.

Versatility Included - You've got options
An impressive variety of Shure microphones are available in BLX systems, so you can find what works for you.


- BLX4 Single-Channel Wireless Receiver -
Analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include microprocessor internal antenna diversity, frequency QuickScan, and two-color audio status indicator LED.

The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems.


- BLX2 Wireless Handheld Transmitter with SM58 Capsule -
Featuring an integrated SM58 microphone cartridge, the BLX2/SM58 Handheld Wireless Microphone Transmitter delivers wireless audio with professional clarity and reliability.

The BLX2/SM58 Handheld Wireless Microphone Transmitter works with BLX Wireless Systems.

SM58 Capsule
If you've ever heard someone sing or speak into a live microphone, there's an excellent chance it was an SM58. Rock stars. Pop idols. Comedians. Presidents. Popes. Immortal words have passed through its iconic grille for generations. And with engineering and durability that set the world standard, it's sure to keep turning up at legendary performances.

A legend that cuts through the noise
The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoor.

How It Works
Made to handle voice with clarity and care, the uniform cardioid polar pattern reproduces every note as it was intended. And it leaves background noise behind. On any stage - from the club show to the stadium - the SM58 delivers warm, crisp sound, time after time.

Why It's Better

Roll with no shake or rattle
Handling noise gets absorbed by the pneumatic shock mount, keeping the sound free of vibration.

Screen out unwanted air
When wind and plosives try to take over, the spherical mesh grille and built-in pop filter keep them out of the mix.

Rugged for the road ahead
Taking the show on tour The mic's durable construction and the break-resistant stand adapter keep the SM58 going strong through the toughest performances.

Shure BLX24/SM58 Handheld Wireless System. (512.125-541.800MHz) Features

  • XLR and 1/4" output connectors
  • Two-color audio status indicator LED
    Green: Normal audio levels
    Red: Excessive audio levels (overload / clipping)
  • Works with BLX Wireless Systems
  • Offers up to 14 hours of continuous battery life with 2 AA batteries
  • Allows for custom handle design at designstudio.shure.com
  • Integrated microphone capsule design
  • Lightweight, rugged construction
  • -10dB gain attenuation
  • Color ID caps (available separately)
  • Mic: Frequency response tailored for vocals, with brightened midrange and bass rolloff
  • Mic: Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
  • Mic: Pneumatic shock-mount system cuts down handling noise
  • Mic: Effective, built-in spherical wind and pop filter
  • Mic: Supplied with break-resistant stand adapter which rotates 180 degrees
  • Mic: Legendary Shure quality, ruggedness and reliability
  • Mic: Cardioid (unidirectional) dynamic
  • Mic: Frequency response: 50 to 15,000Hz

Warranty Information

This used item has a FREE 90-day warranty. See details.
