Used Shure BLX24R/SM58 Handheld Wireless System, Includes BLX4R Rack Mount Receiver, BLX2 Handheld Transmitter with SM58 Microphone, H9: 512.125-541.800MHz

SKU: US1980409 MFR: BLX24R/SM58-H9
Earn VIP Reward Points

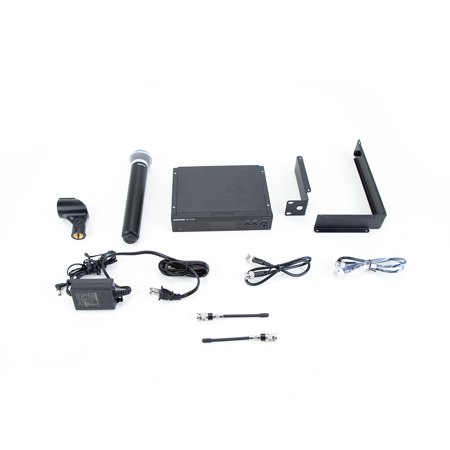

What`s in the box:

  • BLX4R Wireless Rackmount Receiver
  • BLX2 Wireless Handheld Transmitter with SM58 Capsule
  • 2x AA Batteries
See more

Key Features

  • Professional-grade handheld wireless system from the trusted Shure BLX Wireless Systems family
  • Includes a BLX4R rack mount receiver with intuitive controls and simple setup process
  • One-touch QuickScan frequency selection for optimal performance and minimal interference
  • Operates on a wide frequency range of 512.125-541.800MHz for reliable and stable performance
  • Ideal for live performances, public speaking events, and professional audio applications
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure BLX24R/SM58 Specifications

  • Receiver: Output

    1x XLR Output
    1x 1/4" (6.35mm) Output

  • Receiver: Output Impedance

    XLR: 200Ohms
    1/4": 50Ohms

  • Receiver: Audio Output Level

    XLR Connector: -20.5dBV into 100kOhms Load (Reference +/-33kHz with 1kHz Tone)
    1/4": -13dBV into 100kOhms Load (Reference +/-33kHz with 1kHz Tone)

  • Receiver: RF Sensitivity

    -105dBm for 12dB SINAD, Typical

  • Receiver: Image Rejection

    >50dB, Typical

  • Receiver: Housing

    Molded ABS, Steel

  • Receiver: Power Requirement

    12 to 15 VDC at 260 mA, Supplied by External Power Supply (Tip Positive)

  • Receiver: Frequency Band

    H9: 512.125-541.800MHz

  • Transmitter: Audio Input Level

    0dB Gain: -20dBV Maximum
    -10dB Gain: -10dBV Maximum

  • Transmitter: Gain Adjustment Range

    10dB

  • Transmitter: RF Output

    10mW, Typical (Varies by Region)

  • Transmitter: Power Requirements

    2x LR6 AA Batteries, 1.5 V Alkaline

  • Transmitter: Housing

    Molded ABS

  • Transmitter: Frequency Band

    H9: 512.125-541.800MHz

  • Mic: Type

    Dynamic

  • Mic: Polar Pattern

    Cardioid

  • Mic: Frequency Response

    50 to 15,000Hz

  • Mic: Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Mic: Sensitivity

    -54.5dBV/Pa (1.85mV) at 1000Hz Open Circuit Voltage

  • Impedance

    Rated impedance is 150Ohms (300Ohms actual) for connection to microphone inputs rated low impedance

  • Mic: Connector

    Three-pin professional audio connector (male XLR type)

  • Dimensions

    Transmitter (Dia. x L): 2.1 x 8.8" / 53.34 x 223.52mm
    Mic (L x W): 162 x 51mm / 6.38 x 2.01"

  • Weight

    Transmitter: 7.7oz / 218.29g
    Mic: 10.5oz / 297.67g

17 Accessories for Shure BLX24R/SM58 Handheld Wireless System, Includes BLX4R Rack Mount Receiver, BLX2 Handheld Transmitter with SM58 Microphone, H9: 512.125-541.800MHz

  • All Accessories (17)
  • Color Handle Only (6)
  • Replacement Parts (2)
  • Cables & Adapters (3)
  • Windscreens (6)

About Shure BLX24R/SM58 Handheld Wireless System, Includes BLX4R Rack Mount Receiver, BLX2 Handheld Transmitter with SM58 Microphone, H9: 512.125-541.800MHz

Features SM58 Handheld Microphone. Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

Includes BLX4R rack mount receiver, BLX2/SM58 handheld transmitter, microphone clip, single and dual rackmount kit, two 1/4 wave antennas, zipper bag, power supply, 2 AA batteries, and user guide.


- BLX4R Wireless Rackmount Receiver -
Rackmount analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include frequency QuickScan, adjustable output levels, and two-color audio status indicator LED.

Rackmount able and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution. For use with BLX Wireless Systems.

Rackmount kit included.


- BLX2 Wireless Handheld Transmitter with SM58 Capsule -
Featuring an integrated SM58 microphone cartridge, the BLX2/SM58 Handheld Wireless Microphone Transmitter delivers wireless audio with professional clarity and reliability. The BLX2/SM58 Handheld Wireless Microphone Transmitter works with BLX Wireless Systems.

SM58 Capsule
The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Shure BLX24R/SM58 Handheld Wireless System, Includes BLX4R Rack Mount Receiver, BLX2 Handheld Transmitter with SM58 Microphone, H9: 512.125-541.800MHz Features

  • XLR and 1/4" output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED
    Green: Normal audio levels
    Red: Excessive audio levels (overload / clipping)
  • Adjustable output level
  • LCD display with detailed RF and audio metering
  • Works with BLX Wireless Systems
  • Offers up to 14 hours of continuous battery life with 2 AA batteries
  • Allows for custom handle design at designstudio.shure.com
  • Integrated microphone capsule design
  • Lightweight, rugged construction
  • -10dB gain attenuation
  • Color ID caps (available separately)
  • Mic: Frequency response tailored for vocals, with brightened midrange and bass rolloff
  • Mic: Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
  • Mic: Pneumatic shock-mount system cuts down handling noise
  • Mic: Effective, built-in spherical wind and pop filter
  • Mic: Supplied with break-resistant stand adapter which rotates 180 degrees
  • Mic: Legendary Shure quality, ruggedness and reliability
  • Mic: Cardioid (unidirectional) dynamic
  • Mic: Frequency response: 50 to 15,000Hz

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Professional-grade handheld wireless system from the trusted Shure BLX Wireless Systems family
  • Includes a BLX4R rack mount receiver with intuitive controls and simple setup process
  • One-touch QuickScan frequency selection for optimal performance and minimal interference
  • Operates on a wide frequency range of 512.125-541.800MHz for reliable and stable performance
  • Ideal for live performances, public speaking events, and professional audio applications
