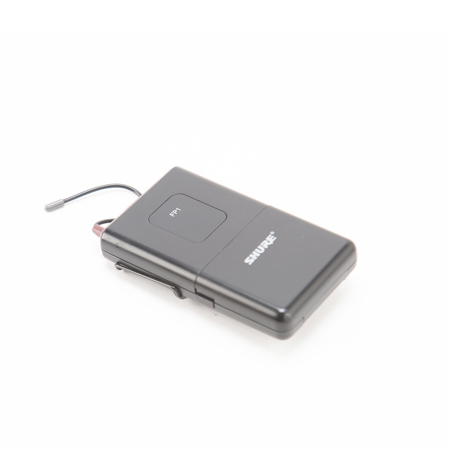

Shure FP1-H5 Wireless Bodypack Transmitter, 10 to 30 mW RF Output Power, H5 / 518 - 542MHz Band

Picture does not represent the actual item
See what's in the box

See all Shure items

Used Shure FP1-H5 Wireless Bodypack Transmitter, 10 to 30 mW RF Output Power, H5 / 518 - 542MHz Band

SKU: US1892103
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Shure P10R+ Wireless Diversity Bodypack Receiver
undefined undefined: Picture 1 regular
Shure BLX2 Wireless Handheld Transmitter with Beta 58A Capsule
undefined undefined: Picture 1 regular
Shure SLXD35+ Portable Digital Wireless Plug-On Transmitter System, G57: 470-608MHz
undefined undefined: Picture 1 regular
Shure P10T Full-Rack Dual-Channel Wireless Transmitter for PSM 1000 Personal Monitor System
undefined undefined: Picture 1 regular
Shure ULXD2/B87A Digital Wireless Handheld Transmitter with Beta 87A Microphone Capsule
undefined undefined: Picture 1 regular
Shure P10R Wireless Diversity Bodypack Receiver for PSM 1000 Personal Monitor System
undefined undefined: Picture 1 regular
Shure QLXD2 Wireless Handheld Microphone Transmitter with Beta 58A Capsule
undefined undefined: Picture 1 regular
Shure ULXD2/SM86 Digital Wireless Handheld Transmitter with SM86 Microphone Capsule
undefined undefined: Picture 1 regular
Shure ULXD2/K11 Digital Wireless Handheld Transmitter with KSM11 Microphone Capsule
undefined undefined: Picture 1 regular
Shure QLXD2/N8 Digital Wireless Handheld Transmitter with N8 Microphone Capsule, Black
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure FP1-H5 Specifications

  • Frequency Range

    H5 / 518 - 542MHz

  • Gain Adjustment Range

    -10 to +20 dBV

  • Input Impedance

    1 MOhms

  • RF Output Power

    10 to 30 mW

  • Pin Assignments TA4M

    1: ground (cable shield)
    2: + 5 V Bias
    3: audio
    4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

  • Housing

    Molded polycarbonate case

  • Power Requirements

    2 AA batteries, 1.5 V

  • Battery Life

    Up to 12 hours (alkaline)

  • Dimensions (H x W x D)

    108 mm x 64 mm x 19 mm / 4.25 x 2.51 x 0.74"

  • Weight

    81 g (2.85 oz.) without batteries

About Shure FP1-H5 Wireless Bodypack Transmitter, 10 to 30 mW RF Output Power, H5 / 518 - 542MHz Band

Shure FP1-H5 Wireless Bodypack Transmitter, 10 to 30 mW RF Output Power, H5 / 518 - 542MHz Band Features

  • Automatic transmitter setup that instantly syncs the transmitter to the receiver frequency
  • LED indicator for control lockout, IR RF sync and low battery
  • Audio input gain for adjustment of audio level
  • 4-Pin microphone input jack for use with lavaliers or headset microphones with TA4F connectors

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure FP1-H5 Portable Wireless Receiver
  • Carry Bag
  • Item Note: Missing TA3 Output Cable for XLR & 1/8" Mini; Camera Shoe Mount
