Review Summary
Digital 2.4/5.8GHz
1x Bodypack
True Digital Diversity
Z3: 2400 to 2483.5MHz / 5725 to 5850MHz
208.5MHz
Auto-Scan
100' (30.5m) (Line of Sight)
8
No
4.5 to 8 ms
120 dBA
Proprietary
Stompbox
Pedalboard (with Included Hardware)
2x External, Fixed (Top-Mount)
1
1x 1/4" TS Female Unbalanced Instrument Input
1x 1/4" TRS Female Balanced Instrument Output
1/4" Output:
+8.5 dBV
20 Hz to 20 kHz (Dependent on Mic)
1x USB-C Female (Firmware Update)
1/4" Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
-88 dBm
Rejection: >35 dB
AC/DC Power Adapter
9 to 15 VDC at 400 mA (Included)
100 to 240 VAC, 50 / 60 Hz
1x Backlit LED (Channel, Group)
1x Multi-Segment LED (Transmitter Battery Status)
Aluminum
32 to 122 Degree F (0 to 50 Degree C)
3.7 x 1.9 x 5.4" (95 x 48 x 138mm)
19.8 oz (560g)
Bodypack
10 mW (EIRP)
1x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
1/4" TS
None
Off/On Switch
-8.4 dBV / 7.5 V p-p
-20 to +40 dB (1 dB Steps)
Proprietary
1x Internal, Fixed (Beltpack)
Battery
1x Shure SB904 (Included, Replaceable)
2420 mAh
0.25 to 3 Hours
12 Hours (Lithium Rechargeable)
1x USB-C (Charging)
1x LED (Battery Status, Sync)
Metal
Required, included
Lithium ion
Non-universal
1
2.6 x 4.5 x 1.1" (67 x 115 x 28.5mm)
Without Batteries: 5.4 oz (153.1g)
1x 1/4" TS Male Straight
1x Lockable TA4 / 4-Pin Mini-XLR Female
Gold
3' (91.44cm)

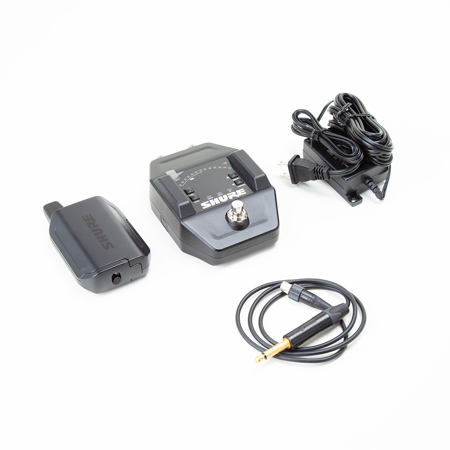

You can elevate your musical performance with the GLXD16+ Dual Band Digital Wireless Guitar Pedal System. This innovative system, designed by the renowned audio equipment brand, Shure, is a perfect blend of high-quality, durability, and user-friendly features.
The system includes the GLXD1+ Digital Wireless Bodypack Transmitter, the GLXD6+ Guitar Pedal Receiver, and the WA305 Premium Guitar Cable. These components work together to provide a seamless, wireless experience for guitar and bass players, without compromising on the quality of your tone or complicating your rig setup.
The GLXD6+ Dual Band Guitar Pedal Receiver is a standout feature, engineered in a rugged metal design for durability and longevity. It can be fully integrated into your pedalboard, powered by a 9V DC power source. The receiver also includes a tuner with a 1/4" guitar input, making the transition from practice to live performance a breeze.
The GLXD1+ Dual Band Bodypack Transmitter is another key component of this system. Its robust, metal construction and ergonomic design, complete with a reversible belt clip, ensure a comfortable fit in various positions. It is compatible with instrument cables, and a variety of headset and lavalier microphone options.
The WA305 Premium Guitar/Bass Cable is designed to connect Bodypack Transmitters to a guitar, bass, or other electric instrument. Its premium materials, including Neutrik straight 1/4" (6.3 mm) and locking REAN TA4F connectors, provide durability and lower cable handling noise. This cable is especially suitable for electric guitar and bass, and is ideal for Strat-type guitars with recessed jacks.
The GLXD16+ Dual Band Digital Wireless Guitar Pedal System operates in the 2.4 and 5.8 GHz frequency range, more than doubling the available bandwidth to avoid interference without audio interruption. The system's lithium-ion battery offers up to 12 hours of runtime and can be charged directly on the receiver or via USB-C, making it a portable and convenient choice for musicians on the go.
In summary, the GLXD16+ Dual Band Digital Wireless Guitar Pedal System is a versatile, high-quality solution for musicians looking to go wireless without compromising on sound quality or ease of use.
