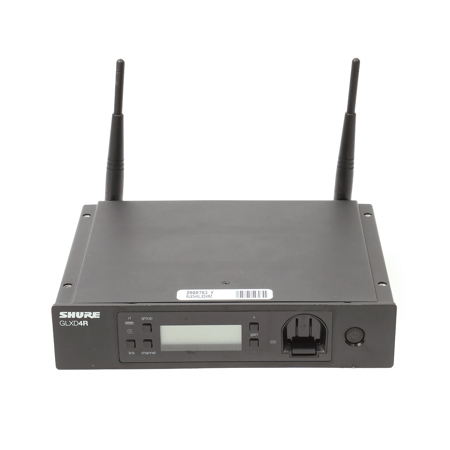

Shure GLXD4R Rack Mount Wireless Receiver
See all Shure items
Used Condition: Well Used

Used Shure GLXD4R Rack Mount Wireless Receiver

SKU: US2080783 MFR: GLXD4R=-Z2
Be the first to review this item
$75.00
Earn VIP Reward Points
See 1 Used options for $75

What`s in the box:

  • Shure GLXD4R Rack Mount Wireless Receiver
  • Detachable Antennas
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

1
Add to List

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Shure GLXD4R Specifications

  • Housing

    Steel

  • Power Requirements

    14 to 18 VDC (tip positive with respect to ring) 550mA

  • Spurious Rejection

    >35dB, typical

  • Gain Adjustment Range

    -18 to 42dB in 1dB steps

  • Phantom Power Protection

    Yes

  • Mic/Line Switch

    30dB Pad

  • Receiver Antenna Input

    Impedance: 50Ohms
    Antenna Type: 1/2 Wave Sleeve Dipole
    Maximum Input Level: -20 dBm

  • Audio Output: Configuration

    XLR Output: Balanced
    6.35mm (1/4") output: Impedance balanced

  • Audio Output: Impedance

    XLR Output: 100Ohms
    6.35mm (1/4") Output: 100Ohms (50Ohms, Unbalanced)

  • Audio Output: Full Scale Output

    1/4" (6.35mm): +12 dBV
    XLR: LINE setting = +18 dBV, MIC setting = -12 dBV

  • Audio Output: Pin Assignments

    XLR Output: 1=ground, 2=hot, 3=cold
    6.35mm (1/4") Output: Tip=Audio, Ring=No audio, Sleeve=Ground

  • Dimensions (HxWxD)

    42 x 197 x 163mm (1.65 x 7.76 x 6.42")

  • Weight

    Without Batteries: 32 oz (907.18g)

About Shure GLXD4R Rack Mount Wireless Receiver

Rack mountable receiver with removable antennas for exceptional audio and rock-solid performance in multi-system installations for house of worship, education and live music applications. Use GLX-D Advanced rack mount wireless systems for improved RF performance and seamless frequency management. With detachable antennas and rack hardware included, GLXD4R receivers quickly integrate GLX-D Frequency Managers and remote antenna accessories for rock-solid multi-system installations.

Shure GLXD4R Rack Mount Wireless Receiver Features

  • Rock-solid RF Performance from patented data communication
  • Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED - Green: Charged, Flashing Green: 90% charged, Red: Charging
  • Detachable antennas for remote mounting
  • Remote adjustable transmitter gain control
  • Hi-res LCD screen status display
  • Real-time battery run-time displayed in hours and minutes (accurate within +/- 15 minutes)
  • XLR and 1/4" output connectors
  • Rugged metal chassis design
  • Includes rack mount hardware
