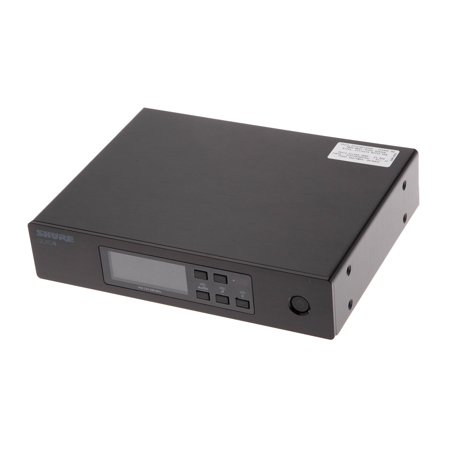

Shure QLXD4 Half-Rack Digital Wireless Receiver - H50/534-598MHz SKU#1801926

Picture does not represent the actual item
See what's in the box

See all Shure items

Used Shure QLXD4 Half-Rack Digital Wireless Receiver, H50/534-598MHz, BNC RF Input Connector, 50 Ohms RF Input Impedance

SKU: US1801926
Be the first to review this item

This item is no longer available.

Buy it New

Shure QLXD4 Half-Rack Digital Wireless Receiver
Shure QLXD4 Half-Rack Digital Wireless Receiver
$747.00
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure QLXD4 Specifications

  • Frequency Range

    H50/534-598MHz

  • RF Input Spurious Rejection

    >80 dB, typical

  • RF Input Connector Type

    BNC

  • RF Input Impedance

    50 Ohms

  • Audio Output Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Audio Output Configuration

    1/4" (6.35mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio /+, 3=audio-)

  • Audio Output Impedance

    1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
    XLR: 100 Ohms

  • Audio Output Full Scale Output

    1/4" (6.35 mm): +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • Audio Output Mic/Line Switch

    30 dB pad

  • Audio Output Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Ethernet Cable Length

    100 m (328 ft)

  • Housing

    Steel

  • Power requirements

    12 V DC at 0.4 A, supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    41 x 197 x 151mm (1.63 x 7.75 x 5.94")

  • Weight

    Without Antennas: 777g (27.40oz)

About Shure QLXD4 Half-Rack Digital Wireless Receiver - H50/534-598MHz SKU#1801926

Digital wireless receiver combines professional features with streamlined set-up and operation. Features include Automatic Channel scan, Networked Channel Scan, digital predictive switching, and AES 256 encryption for security.

With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters.

Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.

Shure QLXD4 Half-Rack Digital Wireless Receiver - H50/534-598MHz SKU#1801926 Features

  • 64 MHz tuning bandwidth (region dependent)
  • More than 60 preset compatible channels per frequency band (region dependent)
  • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • Digital predictive switching diversity ensures solid RF connection
  • Automatic channel scan quickly finds the cleanest frequency
  • IR sync deploys selected frequency to transmitter
  • Ethernet networking provides streamlined setup across multiple receivers
  • Networked channel scan configures open frequencies for all connected receivers
  • AES 256-bit encryption for secure wireless transmission
  • Up to 60 dB of adjustable audio gain
  • High-contrast LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • Detachable ½ wave antennas
  • Mic / line switchable XLR output
  • 1/4" instrument output
  • Durable aluminum construction with brushed finish
  • Professional-grade rack hardware included
  • Compatible with Shure Wireless Workbench 6 control software
  • Remote monitoring and control from iOS devices via ShurePlus Channels app

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure QLXD4 Half-Rack Digital Wireless Receiver (H50/534-598MHz)
  • Power Supply
  • 1x 1/2 Wave Antenna
  • Item Note: Missing 1x 1/2 Wave Antenna; 2x BNC Cables; 2x BNC Bulkhead Adapters; Hardware for Rack Mounting
