Shure SLX1-H5 Wireless Bodypack Transmitter, H5 Band (518-542 MHz)

Picture does not represent the actual item

See all Shure items

Used Shure SLX1-H5 Wireless Bodypack Transmitter, H5 Band (518-542 MHz)

SKU: AUWSHSLX1H5
Be the first to review this item
Add to List
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Shure SLX1 Specifications

  • Type of Transmitter

    SLX1 UHF Bodypack

  • Of Channels

    960 selectable frequencies

  • Type of Input Connector

    TA4-female input

  • Interchangeable Mic Heads

    Compatible with lavalier or headset microphones featuring TA4-female connection

  • Mute Switch

    Integrated On-Off / Mute Switch

  • Level Control

    0dB & 10dB Gain Adjust switch

  • Audio Input Level

    -10 dBV maximum at mic gain position
    +10 dBV maximum at 0 dB gain position
    +20 dBV maximum at -10 dB gain position

  • Display

    LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status

  • Frequency Response

    45Hz - 15kHz, +/-2dB

  • Antenna Type

    Flexible 1/4 Wave Whip Antenna

  • Housing

    Molded ABS case

  • Gain Adjustment Range

    30dB

  • Input Impedance

    1 megohm

  • RF Transmitter Output

    30 mW maximum (dependent on applicable country regulations)

  • Power Requirements

    2 AA size alkaline or rechargeable batteries

  • Battery Life

    >8 hours (alkaline)

  • Dimensions (H x W x D)

    108 mm x 64 mm x 19 mm(4.25" x 2.51" x 0.75")

  • Weight

    81 grams (2.85 oz) without batteries

About Shure SLX1-H5 Wireless Bodypack Transmitter, H5 Band (518-542 MHz)

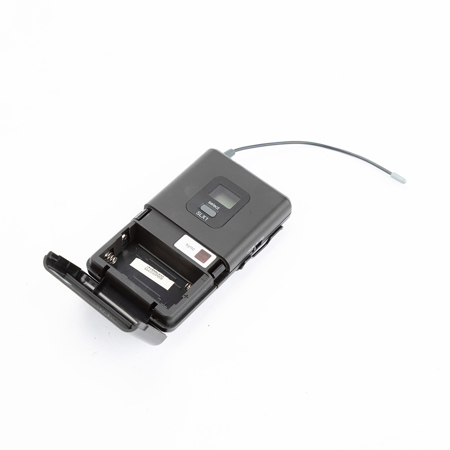

The Shure SLX1-H5 Bodypack Transmitter is designed for use with the Shure SLX series wireless microphone system. The transmitter is powered up to 8 hours on 2 AA size batteries. A 4-pin microphone input jack accommodates any Shure microphone featuring a TA4 connection. The SLX1 features an infrared sensor, allowing the transmitter to remotely sync frequency settings with the receiver. An adjustable mic/0 dB/-10 dB switch allows input from guitars, instruments and microphones.

Shure SLX1-H5 Wireless Bodypack Transmitter, H5 Band (518-542 MHz) Features

  • Sync Between Transmitter & Receiver: The SLX series transmitters and receivers feature an infrared sync feature which allows settings such as frequency and channel, to be transferred remotely
  • Backlit LCD: The backlit LCD provides channel and frequency status, RF status and more. The LCD features a timeout function which prolongs the life of the display
  • Frequency and Power Lockout: The transmitter can be programmed to protect frequency and power functions. The lockout feature protects against accidental frequency changes or power downs

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Sync Between Transmitter & Receiver
  • Frequency and Power Lockout
  • Backlit LCD
