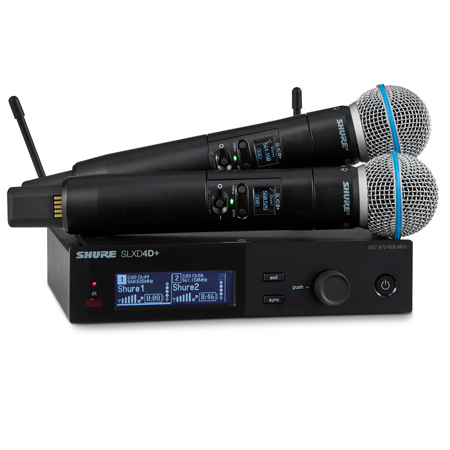

Used Shure SLXD24D+/B58 Dual-Channel Digital Wireless Handheld System with 2x B58 Microphone Capsule, G57: 470-608MHz

SKU: US2066164 MFR: SLXD24D+/B58-G57
Earn VIP Reward Points

What`s in the box:

  • 2x SLXD2+ Wireless Handheld Transmitter with Beta 58A Microphone Capsule
  • SHSLXD4DG5
  • 4x AA Batteries
See more

Key Features

  • Experience crystal-clear sound quality for vocals and presentations with this digital wireless system.
  • Enjoy reliable, interference-free performance with a robust 328' working range for any event.
  • Benefit from extended battery life, ensuring your performance lasts as long as you do.
  • Set up quickly and easily with this intuitive wireless microphone system, perfect for busy professionals.
  • Count on the durable construction of Shure microphones for consistent, professional use.
  • Achieve exceptional audio for live performances and public speaking with superior sound clarity.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Shure SLXD24D+/B58 Specifications

System: RF

System: RF

Jump to...
  • RF Carrier Frequency Range

    470-937.5 MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    JB Band: 125 kHz
    All Other Bands: 25 kHz

  • Image Rejection

    >85 dB

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    2.8 ms

  • High-Pass/Low Cut Filter

    160 Hz, -12 dB/octave

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    118 dB @1% THD (A-weighted, 20 Hz-20 kHz, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 1/4" (6.35mm) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

System: General

Jump to...
  • Country of Origin

    China

SLXD2+ Transmitter: General

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Transmitter Type

    Handheld

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Dynamic range

    118 dB

  • Audio conversion

    24 bit

SLXD2+ Transmitter: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

SLXD2+ Transmitter: RF Output

Jump to...
  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD2+ Transmitter: Physical

Jump to...
  • Dimensions

    1.46 x 6.93" (3.71 x 17.60cm)

  • Weight

    5.08 oz (144g)

SLXD2+ Transmitter: Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

Beta 58A Microphone Capsule

Jump to...
  • Type

    Dynamic (moving coil)

  • Applications

    Speech, and Lead & Backup Vocals

  • Frequency Response

    50 to 16,000 Hz

  • Polar Pattern

    Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency

  • Impedance

    Rated impedance is 150 ohms (290 ohms actual) for connection to microphone inputs rated low Z

  • Output Level

    At 1,000 Hz: Open Circuit Voltage -51 dBV/Pa (2.8 mV) (1 Pa = 94 dB SPL)

  • Connector

    XLR-3 Type

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin
    Adjustable Stand Adapter Slip in, unbreakable adjustable through 180 Degree, with standard 5/8-27 thread, Black finish

  • Weight

    9.8 oz (278g)

SLXD4D+ Receiver: General

Jump to...
  • Color

    Black

  • Material

    Galvanized Steel

  • Number of Channels

    Dual

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Audio conversion

    24 bit/48 kHz

  • Encryption

    AES-256

  • Length

    Cable 22" (55.8cm)

  • Power Requirements

    15 VDC @ 360 mA

SLXD4D+ Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4D+ Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.1 k Ohm (550 Ohm Unbalanced)
    XLR (line): 500 Ohm (250 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +18 dBV differentially (+12 dBV single)
    XLR (LINE setting): +18 dBV
    XLR (MIC setting): -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4D+ Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4D+ Receiver: Physical

Jump to...
  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    2.1 lbs (952g) (without antennas)

About Shure SLXD24D+/B58 Dual-Channel Digital Wireless Handheld System with 2x B58 Microphone Capsule, G57: 470-608MHz

The SLXD24D+/B58 Digital Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.


- SLXD2+/B58 Wireless Handheld Transmitter -
The SLXD2+/B58 Wireless Handheld Transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With rugged metal construction, wide-tuning SLX-D+ handheld transmitters stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates


- Beta 58A Supercardioid Dynamic Vocal Microphone -
• Smooth, extended frequency response for outstanding sound for professional live vocal use
• Consistent supercardioid pattern provides the best gain-before-feedback among dynamic microphones
• Pneumatic shock mount reduces handling noise
• Frequency response: 50 to 16,000 Hz
• Neodymium magnet for high signal to noise output
• Hardened steel mesh grille that resists wear and abuse
• Minimally effected by varying load impedance
• Legendary Shure quality and reliability


- SLXD4+ Single-Channel Digital Wireless Rackmount Receiver -
The SLXD4+ is a single channel half-rack receiver for use with SLX-D+ transmitters. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With the crystal-clear audio and rock-steady RF that SLX-D+ provides, the SLXD4+ features a wide 138 MHz tuning range that stays in sync with SLX-D+ transmitters, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Includes SLXD4+ Single Channel Receiver, two 1/4" antennas, two bulkhead adapters, two 22" BNC cables, rack mount kit and power supply.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates, Link 2nd transmitter to a receiver channel

Shure SLXD24D+/B58 Dual-Channel Digital Wireless Handheld System with 2x B58 Microphone Capsule, G57: 470-608MHz Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Experience crystal-clear sound quality for vocals and presentations with this digital wireless system.
  • Enjoy reliable, interference-free performance with a robust 328' working range for any event.
  • Benefit from extended battery life, ensuring your performance lasts as long as you do.
  • Set up quickly and easily with this intuitive wireless microphone system, perfect for busy professionals.
  • Count on the durable construction of Shure microphones for consistent, professional use.
  • Achieve exceptional audio for live performances and public speaking with superior sound clarity.
