Used Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector G58: 470-514MHz

SKU: US1977727 MFR: SLXD3=-G58
Earn VIP Reward Points

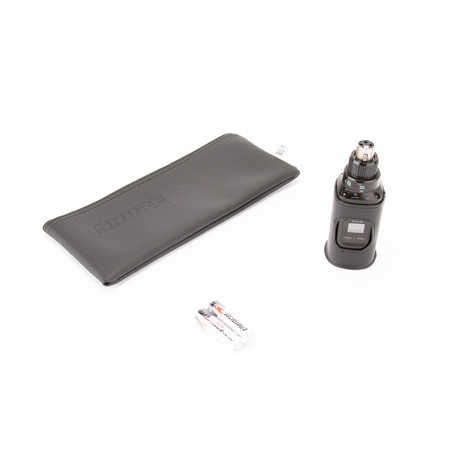

What`s in the box:

  • Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector
  • 2x AA Batteries
  • Zippered Carrying Pouch
See more

Key Features

  • Patented locking ring ensures a secure, wobble-free connection for consistent audio quality
  • Features IR Sync for quick and easy pairing with SLX-D wireless receivers
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

1

Add Adorama Protect:

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector G58: 470-514MHz Specifications

General

General

Jump to...
  • Available RF Frequency Band

    G58: 470 to 514 MHz, H55: 514 to 558 MHz, J52: 558 to 602 MHz and 614 to 616 MHz

Audio Input

Jump to...
  • Configuration

    XLR

  • Maximum Input Level 1 kHz @ 1% THD

    Pad -12 dB: 20.5 dBV
    0 dB: 8.5 dBV
    Boost +12 dB: -3.5 dBV

  • Phantom Power

    +48 V (7 mA maximum)
    +12 V (15 mA maximum)

RF Output

Jump to...
  • Antenna Type

    Dipole

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW/30 mW

  • Specific Absorption Rate (SAR)

    <0.17 W/kg

Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

Physical

Jump to...
  • Housing

    Aluminum, Zinc Alloy, PC/ABS

  • Dimensions (Dia. x L)

    4.9 x 1.6 x 1.6" (126 x 41 x 41mm)

  • Weight

    7.0 oz (200g)

About Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector G58: 470-514MHz

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

SLXD3 Plug-On Digital Wireless Transmitter converts any XLR source, including dynamic and condenser microphones, for use as an SLX-D wireless transmitter. Featuring a patented locking ring for a secure, wobble-free connection, the SLXD3 sends 24-bit digital audio from any XLR source to an SLXD4 or SLXD5 Digital Wireless receiver via rock-solid RF connection. Use IR Sync to pair transmitters easily and quickly with your choice of SLX-D wireless receiver.

A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD3 plug-on transmitter, a pair of AA alkaline batteries, zippered carrying pouch and a leather protective sleeve with an integrated belt clip.

Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector G58: 470-514MHz Features

  • Versatile SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector for dynamic and condenser microphones
  • Patented locking ring ensures a secure, wobble-free connection for consistent audio quality
  • Transmits 24-bit digital audio via a rock-solid RF connection to SLXD4 or SLXD5 Digital Wireless receivers
  • Features IR Sync for quick and easy pairing with SLX-D wireless receivers
  • Supports optional rechargeability accessories with OLED screen displaying battery life in hours and minutes
  • Includes AA alkaline batteries, zippered carrying pouch, and leather protective sleeve with integrated belt clip

Warranty Information

This used item has a FREE 90-day warranty. See details.

Key Features

  • Patented locking ring ensures a secure, wobble-free connection for consistent audio quality
  • Features IR Sync for quick and easy pairing with SLX-D wireless receivers
