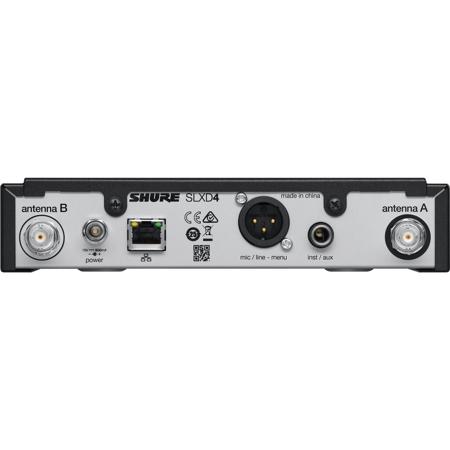

Used SLXD4 Single-Channel Digital Wireless Receiver, J52: 558-602MHz and 614-616MHz

558 to 602MHz and 614 to 616MHz

>75 dB Typical

BNC

50 Ohm

-18 to +42 dB in 1 dB steps

1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)

1/4" (6.35 mm): 1.3 k Ohm (670 Ohm Unbalanced)
XLR (line): 400 Ohm (200 Ohm Unbalanced)
XLR (mic): 150 Ohm

1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)

XLR (LINE setting): +15 dBV
XLR (MIC setting): -15 dBV

30 dB pad

1/4" (6.35 mm): Yes
XLR: Yes

Single Port Ethernet 10/100 Mbps

DHCP or Manual IP address

328' (100m)

Galvanized Steel

15 VDC @ 600 mA Supplied by external power supply (tip positive)

1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

1.8 lbs (816g) without antennas
