Shure ULXD1-G50 Wireless Bodypack Transmitter - G50 Band / 470-535MHz SKU1758607

Picture does not represent the actual item
See what's in the box

See all Shure items

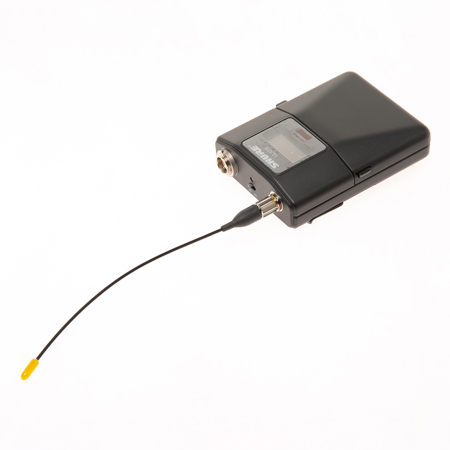

Used Shure ULXD1-G50 Wireless Bodypack Transmitter with TA4-M (4-Pin) Input Connection (G50 Band / 470 to 535MHz)

SKU: US1758607
Be the first to review this item

This item is no longer available.

Buy it New

Shure ULXD1 Digital Wireless Bodypack Transmitter with TA4F Connector
Shure ULXD1 Digital Wireless Bodypack Transmitter with TA4F Connector
$595.00
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure ULXD1 Specifications

  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 Mega ohms

  • Maximum Input Level, 1 kHz at 1% THD

    Pad Off: 8.5 dBV (7.5 Vpp)
    Pad On: 20.5 dBV (30 Vpp)

  • Preamplifier Equivalent Input Noise(EIN)

    120 dBV, A-weighted, typical (System Gain Setting = +20)

  • RF Output: Connector

    SMA

  • RF Output: Impedance

    50 Ohms

  • Antenna Type

    1/4 wave

  • Bandwidth

    Occupied Bandwidth: < 200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Output Power

    1mW, 10mW, 20mW

  • Audi Frequency Response

    20Hz to 20kHz (+/-1 dB), flat

  • Gain Offset Range

    0 to 21 dB (in 3 dB steps)

  • Battery Type

    Shure SB900 Rechargeable Li-Ion or AA batteries

  • Battery Runtime @ 10 mW

    Shure SB900: > 12 hours
    Alkaline: 11 hours

  • Housing

    Cast aluminum

  • Dimensions (H x W x D)

    3.4" x 2.6" x 0.9" (86.36 mm x 66.04 mm x 22.86 mm)

  • Weight

    142 g (5 oz) without batteries

About Shure ULXD1-G50 Wireless Bodypack Transmitter - G50 Band / 470-535MHz SKU1758607

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Digital Wireless Systems.

With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Secure sound
Confidentiality is ensured via AES-256 encryption that generates a randomized key for each use.

Networked, intelligent charging
ULX-D transmitters use either AA batteries or our intelligent rechargeable solutions for up to 9 hours of use. Battery life and charge status can be monitored remotely from Shure software. So power is always on your side.

With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Shure ULXD1-G50 Wireless Bodypack Transmitter - G50 Band / 470-535MHz SKU1758607 Features

  • AES 256-bit encryption for applications requiring secure data transmission
  • Proprietary Shure gain ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5 segment battery fuel gauge and zero memory effect
  • External charging contacts for docked charging (with the SBC200 dual docking charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure ULXD1 Digital Wireless Bodypack Transmitter with TA4M
  • Antenna
  • Vinyl Bag
