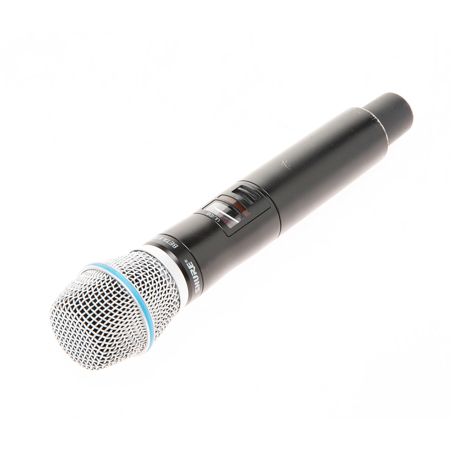

Shure ULXD2/B87A Handheld Transmitter with Beta 87A Microphone, H50: 525-572MHz

Picture does not represent the actual item
See what's in the box

See all Shure items

Used Shure ULXD2/B87A Handheld Transmitter with Beta 87A Microphone, H50: 525-572MHz

SKU: US1796172
Be the first to review this item

This item is no longer available.

Buy it New

Shure ULXD2/B87A Digital Wireless Handheld Transmitter with Beta 87A Mic Capsule
Shure ULXD2/B87A Digital Wireless Handheld Transmitter with Beta 87A Mic Capsule
$852.00
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure ULXD2/B87A Specifications

  • Frequency Band

    H50: 525-572MHz

  • ULXD2: Configuration

    Audio Input: Unbalanced

  • ULXD2:Max. Input Level (1 kHz at 1% THD)

    Audio Input: 145 dB SPL (SM58), typical

  • ULXD2: Preamplifier (EIN)

    Audio Input: 120 dBV, A-weighted, typical (System Gain Setting=+20)

  • ULXD2: Antenna Type

    Integrated Single Band Helical

  • ULXD2: Occupied Bandwidth

    <200 kHz

  • ULXD2: Modulation Type

    Shure Proprietary Digital

  • ULXD2: Power

    1 mW, 10 mW, 20 mW

  • ULXD2: Gain Offset Range

    0 to 21 dB (in 3 dB steps)

  • ULXD2: Battery Type

    Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V

  • ULXD2: Battery Runtime at 10 mW

    Shure SB900: >11 hours
    Alkaline: 11 hours

  • ULXD2: Housing

    Machined aluminum

  • B87A: Type

    Condenser (Electret Biased)

  • B87A: Frequency Response

    50 Hz to 20 kHz

  • B87A: Polar Pattern

    Supercardioid

  • B87A: Sensitivity

    -52.5 dBV/Pa (2 mV), 1 Pascal=94 dB SPL at 1kHz, open circuit voltage

  • B87A: Maximum SPL

    140.5 dB at 1 kHz at 1% THD, 1 k Ohms load

  • B87A: Signal to Noise Ratio

    70.5 dB referenced at 94 dB SPL at 1 kHz (S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted)

  • B87A: Dynamic Range

    117 dB at 1 kHz at 1 k Ohms load

  • B87A: Clipping Level

    -6 dBV (0.5 V), at 1 kHz at 0.25% THD, 1 k Ohms load

  • B87A: Self Noise

    23.5 dB (typical, equivalent SPL; A-weighted)

  • Dimensions (L x Dia.)

    ULXD2: 256 x 51mm / 10.08 x 2.0"

  • Weight

    ULXD2: 12oz / 340.2g, without batteries

About Shure ULXD2/B87A Handheld Transmitter with Beta 87A Microphone, H50: 525-572MHz

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

With an wide variety of interchangeable Shure microphone cartridges, the ULXD2 delivers uncompromising audio quality and RF performance, and AES 256-bit encryption for secure transmission. The ULXD2 handheld offers over 9 hours of continuous battery life with Shure rechargeable battery or 8 hours with alkaline battery

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Shure ULXD2/B87A Handheld Transmitter with Beta 87A Microphone, H50: 525-572MHz Features

  • AES 256-bit encryption for applications for which secure transmission is needed
  • Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Optional Shure SB900 lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure ULXD2/B87A Handheld Transmitter with Beta 87A Microphone
  • Microphone Clip
  • (Batteries not included)
  • Item Note: Missing Zipper Bag
