Shure ULXD4 Digital Wireless Receiver - J50A: 572 - 616MHz SKU#1847446

Picture does not represent the actual item

See all Shure items

Used Shure ULXD4 Digital Wireless Receiver, J50A: 572 - 616MHz

SKU: US1847446
Be the first to review this item

This item is no longer available.

Buy it New

Shure ULXD4 Single-Channel Digital Wireless Rackmount Receiver
Shure ULXD4 Single-Channel Digital Wireless Rackmount Receiver
 (1)
$1183.00
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-06-09T14:27:49

Rated 5 out of 5

Super easy to use and easy to trust!

So freeing, and I feel like I can trust this device. Zero problems so far and incredibly easy to set up.

JEFFREY C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure ULXD4 Specifications

RF Input

RF Input

Jump to...

  • Spurious Rejection

    >80 dB, typical

  • Connector

    BNC

  • Impedance

    50 Ohms

  • Bias Voltage(s)

    12 to 13 VDC, 170 mA maximum, per antenna

Audio Output

Jump to...

  • Gain Adjustment Range

    -18 to 42 dB in 1 dB steps (plus Mute setting)

  • Configuration

    1/4" (6.3 mm): Impedance balanced (Tip= audio, Ring= no audio, Sleeve= ground)
    XLR: balanced (1= ground, 2= audio +, 3= audio -)

  • Impedance

    1/4" (6.3 mm): 100 Ohms (50 Ohms Unbalanced)
    XLR: 100 Ohms

  • Full Scale Output

    1/4" (6.3 mm): 12 dBV
    XLR: LINE setting= 18 dBV, MIC setting= -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.3 mm): Yes
    XLR: Yes

Networking

Jump to...

  • PoE

    No, protected

  • Network Interface

    Single-port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (99.98m)

General

Jump to...

  • Housing

    Steel

  • Power Requirements

    15 VDC at 0.6 A, supplied by external power supply (tip positive)

  • Dimensions (HxWxD)

    197 x 171 x 42mm (7.76 x 6.73 x 1.65")

  • Weight

    2 lbs (0.91kg), without antennas

About Shure ULXD4 Digital Wireless Receiver - J50A: 572 - 616MHz SKU#1847446

Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D Digital Wireless Systems.

With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Shure ULXD4 Digital Wireless Receiver - J50A: 572 - 616MHz SKU#1847446 Features

  • Predictive switching diversity
  • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
  • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
  • Interference detection and alerts provided on both the receiver and Wireless Workbench 6
  • Front panel gain adjustment buttons provide up to 60 dB additional gain
  • AES 256-bit encryption-enabled for applications where secure transmission is needed
  • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration and AMX/Crestron control
  • Support for frequency coordination with the Axient Spectrum Manager
  • Rugged metal chassis
  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Remoteable 1/2 wave antennas
  • Furnished rack hardware

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

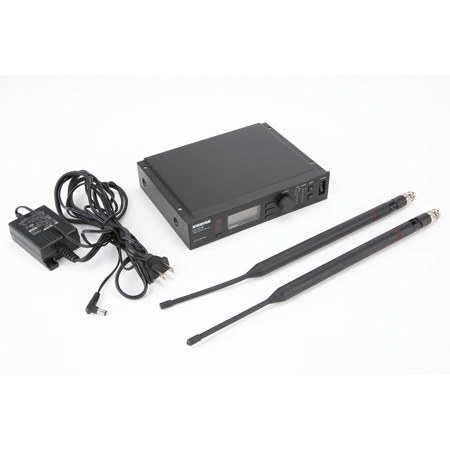

What's in the box:

  • Shure ULXD4 Digital Wireless Receiver
  • 2x Remoteable 1/2 Wave Antennas
  • Power Supply
  • Item Note: Missing Rack Hardware
