Used Shure ULXD4-G50 Single Digital Wireless Receiver with PS41US Power Supply, 1/2 Wave Antenna & Rack Mounting Hardware, G50/470 to 534MHz Frequency

SKU: US1997177 MFR: ULXD4=-G50
Earn VIP Reward Points

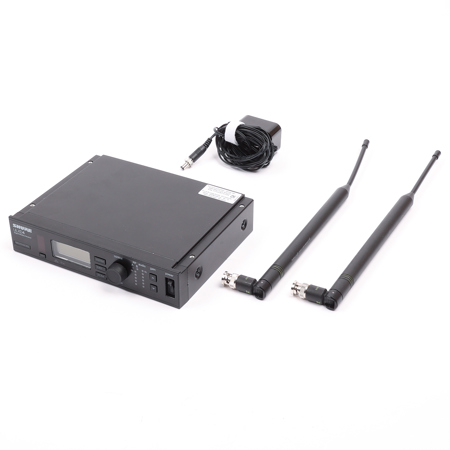

What`s in the box:

  • Shure ULXD4 Single Digital Wireless Receiver
  • Power Supply
  • 2 x 1/2 Wave Antenna
See more

Key Features

  • High-quality 24-bit/48 kHz digital audio for professional sound reinforcement
  • Efficient and intelligent RF performance for reliable wireless connectivity
  • AES 256-bit encryption for secure wireless transmissions
  • Includes PS41US power supply, 1/2 wave antenna, and rack mounting hardware for easy setup
  • G50/470 to 534MHz frequency range for broad compatibility
  • Designed for use with ULX-D Digital Wireless Systems for optimal performance
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

1

Add Adorama Protect:

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-06-09T14:27:49

Rated 5 out of 5

Super easy to use and easy to trust!

So freeing, and I feel like I can trust this device. Zero problems so far and incredibly easy to set up.

JEFFREY C.

Shure ULXD4-G50 Specifications

  • RF Carrier Frequency

    G50/470 to 534MHz

  • RF Input: Spurious Rejection

    >80 dB, typical

  • RF Input: Connector Type

    BNC

  • RF Input: Impedance

    50 Ohms

  • RF Input: Bias Voltage

    12-13 V DC, 170 mA maximum, per antenna

  • Audio Output: Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus Mute setting)

  • Audio Output: Configuration

    1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Audio Output: Impedance

    1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
    XLR: 100 Ohms

  • Audio Output: Full Scale Output

    1/4" (6.35 mm): +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • Audio Output: Mic / Line Switch

    30 dB pad

  • Audio Output: Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • Networking: Power Over Ethernet (PoE)

    No, protected

  • Networking: Network Interface

    Single Port Ethernet 10 / 100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Networking: Maximum Cable Length

    328 ft (100 m)

  • Audio Frequency Response

    20 Hz-20 kHz, flat

  • Dynamic Range

    120 dB, extended

  • Tuning Range

    Up to 64 MHz

  • Housing

    Galvanized steel

  • Dimensions (H x W x D)

    7.75" x 6.75" x 1.65" (197 mm x 171 mm x 42 mm)

  • Weight

    2.0 lbs (0.90 kg) without antennas

Related Articles & Videos

How to Choose a Wireless Microphone System

How to Choose a Wireless Microphone System

A wireless microphone system offers undeniable advantages to artists, speakers, and large production sets. They get rid of unnecessary wire clutter, are easy to set up, and allow users to move freely while performing. Since its introduction, many innovations have give...
Read more

About Shure ULXD4-G50 Single Digital Wireless Receiver with PS41US Power Supply, 1/2 Wave Antenna & Rack Mounting Hardware, G50/470 to 534MHz Frequency

FEATURED REVIEWS

Super easy to use and easy to trust!

By JEFFREY C.

So freeing, and I feel like I can trust this device. Zero problems so far and incredibly easy to set up.

Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D Digital Wireless Systems.

With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Shure ULXD4-G50 Single Digital Wireless Receiver with PS41US Power Supply, 1/2 Wave Antenna & Rack Mounting Hardware, G50/470 to 534MHz Frequency Features

  • Predictive switching diversity
  • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
  • Interference detection and alerts provided on both the receiver and Wireless Workbench 6
  • Front panel gain adjustment buttons provide up to 60 dB additional gain
  • AES 256-bit encryption-enabled for applications where secure transmission is needed
  • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration and AMX/Crestron control
  • Support for frequency coordination with the Axient Spectrum Manager
  • Rugged metal chassis
  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Remoteable 1/2 wave antennas
  • Furnished rack hardware

Warranty Information

This used item has a FREE 90-day warranty. See details.

Key Features

  • High-quality 24-bit/48 kHz digital audio for professional sound reinforcement
  • Efficient and intelligent RF performance for reliable wireless connectivity
  • AES 256-bit encryption for secure wireless transmissions
  • Includes PS41US power supply, 1/2 wave antenna, and rack mounting hardware for easy setup
  • G50/470 to 534MHz frequency range for broad compatibility
  • Designed for use with ULX-D Digital Wireless Systems for optimal performance
