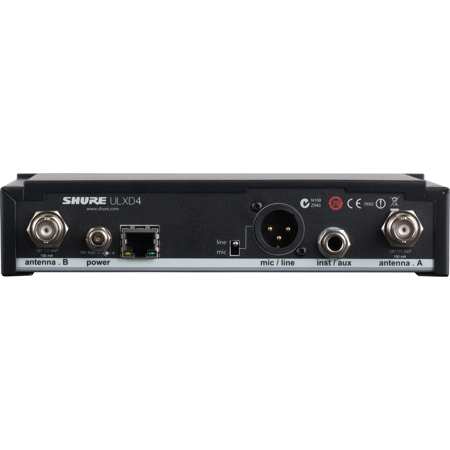

Shure ULXD4-G50 Single Digital Wireless Receiver with PS41US Power Supply, 1/2 Wave Antenna & Rack Mounting Hardware, G50/470 to 534MHz Frequency

Picture does not represent the actual item
See what's in the box

See all Shure items

Used Shure ULXD4-G50 Single Digital Wireless Receiver with PS41US Power Supply, 1/2 Wave Antenna & Rack Mounting Hardware, G50/470 to 534MHz Frequency

SKU: US1622880

This item is no longer available.

Buy it New

Shure ULXD4 Single-Channel Digital Wireless Rackmount Receiver
Shure ULXD4 Single-Channel Digital Wireless Rackmount Receiver
(5)
$1183.00
Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-06-09T14:27:49

Rated 5 out of 5

Super easy to use and easy to trust!

So freeing, and I feel like I can trust this device. Zero problems so far and incredibly easy to set up.

JEFFREY C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure ULXD4-G50 Specifications

  • RF Carrier Frequency

    G50/470 to 534MHz

  • RF Input: Spurious Rejection

    >80 dB, typical

  • RF Input: Connector Type

    BNC

  • RF Input: Impedance

    50 Ohms

  • RF Input: Bias Voltage

    12-13 V DC, 170 mA maximum, per antenna

  • Audio Output: Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus Mute setting)

  • Audio Output: Configuration

    1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Audio Output: Impedance

    1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
    XLR: 100 Ohms

  • Audio Output: Full Scale Output

    1/4" (6.35 mm): +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • Audio Output: Mic / Line Switch

    30 dB pad

  • Audio Output: Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • Networking: Power Over Ethernet (PoE)

    No, protected

  • Networking: Network Interface

    Single Port Ethernet 10 / 100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Networking: Maximum Cable Length

    328 ft (100 m)

  • Audio Frequency Response

    20 Hz-20 kHz, flat

  • Dynamic Range

    120 dB, extended

  • Tuning Range

    Up to 64 MHz

  • Housing

    Galvanized steel

  • Dimensions (H x W x D)

    7.75" x 6.75" x 1.65" (197 mm x 171 mm x 42 mm)

  • Weight

    2.0 lbs (0.90 kg) without antennas

Related Articles & Videos

How to Choose a Wireless Microphone System

How to Choose a Wireless Microphone System

A wireless microphone system offers undeniable advantages to artists, speakers, and large production sets. They get rid of unnecessary wire clutter, are easy to set up, and allow users to move freely while performing. Since its introduction, many innovations have give...
Read more

About Shure ULXD4-G50 Single Digital Wireless Receiver with PS41US Power Supply, 1/2 Wave Antenna & Rack Mounting Hardware, G50/470 to 534MHz Frequency

FEATURED REVIEWS

Super easy to use and easy to trust!

By JEFFREY C.

So freeing, and I feel like I can trust this device. Zero problems so far and incredibly easy to set up.

Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D Digital Wireless Systems.

With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Shure ULXD4-G50 Single Digital Wireless Receiver with PS41US Power Supply, 1/2 Wave Antenna & Rack Mounting Hardware, G50/470 to 534MHz Frequency Features

  • Predictive switching diversity
  • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
  • Interference detection and alerts provided on both the receiver and Wireless Workbench 6
  • Front panel gain adjustment buttons provide up to 60 dB additional gain
  • AES 256-bit encryption-enabled for applications where secure transmission is needed
  • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration and AMX/Crestron control
  • Support for frequency coordination with the Axient Spectrum Manager
  • Rugged metal chassis
  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Remoteable 1/2 wave antennas
  • Furnished rack hardware

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure ULXD4 Single Digital Wireless Receiver
  • Power Supply
  • 2x 1/2 Wave Antenna
  • 2x 2' BNC Cable
  • 2x BNC Bulkead Adapters
  • Rackmount Hardware Kit
  • 5' Ethernet Cable
  • Rackmount Bracket (Short)
  • Rackmount Bracket (Long)
  • Original Box
