Shure ULXD4-L50 Specifications

  • RF Carrier Frequency

    L50/632 to 696MHz

  • RF Input: Spurious Rejection

    >80 dB, typical

  • RF Input: Connector Type

    BNC

  • RF Input: Impedance

    50 Ohms

  • RF Input: Bias Voltage

    12-13 V DC, 170 mA maximum, per antenna

  • Audio Output: Gain Adjustment Range

    -18 to +42 dB in 1 dB steps (plus Mute setting)

  • Audio Output: Configuration

    1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Audio Output: Impedance

    1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
    XLR: 100 Ohms

  • Audio Output: Full Scale Output

    1/4" (6.35 mm): +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • Audio Output: Mic / Line Switch

    30 dB pad

  • Audio Output: Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • Networking: Power Over Ethernet (PoE)

    No, protected

  • Networking: Network Interface

    Single Port Ethernet 10 / 100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Networking: Maximum Cable Length

    328 ft (100 m)

  • Audio Frequency Response

    20 Hz-20 kHz, flat

  • Dynamic Range

    120 dB, extended

  • Tuning Range

    Up to 64 MHz

  • Housing

    Galvanized steel

  • Dimensions (H x W x D)

    7.75" x 6.75" x 1.65" (197 mm x 171 mm x 42 mm)

  • Weight

    2.0 lbs (0.90 kg) without antennas

About Shure ULXD4-L50 Single Digital Wireless Receiver - L50: 632-696MHz SKU#1463325

The Shure ULXD4-L50 is a half-rack, networkable wireless receiver for use with ULX-D Digital Wireless Systems. With an expansive set of professional features, including 24-bit/48 kHz digital audio quality, efficient and intelligent RF performance and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Shure ULXD4-L50 Single Digital Wireless Receiver - L50: 632-696MHz SKU#1463325 Features

  • Predictive switching diversity
  • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
  • Interference detection and alerts provided on both the receiver and Wireless Workbench 6
  • Front panel gain adjustment buttons provide up to 60 dB additional gain
  • AES 256-bit encryption-enabled for applications where secure transmission is needed
  • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration and AMX/Crestron control
  • Support for frequency coordination with the Axient Spectrum Manager
  • Rugged metal chassis
  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Remoteable 1/2 wave antennas
  • Furnished rack hardware

What's in the box:

  • Shure ULXD4 Single Digital Wireless Receiver
  • Power Supply

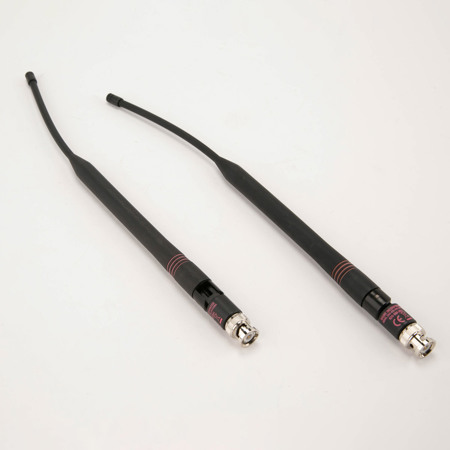

  • 2x Antennas
  • Ethernet Cable
  • Right Side Rack Hardware
  • Item Note: Missing Left Side Rack Hardware
