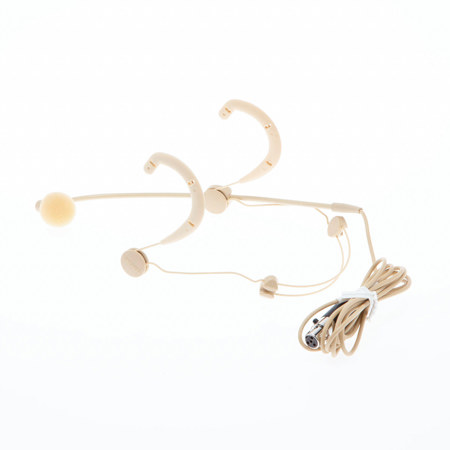

Shure WBH54 Supercardioid Headworn Condenser Microphone with TA4F (Mini 4-Pin) Connector, Tan

Picture does not represent the actual item
See what's in the box

See all Shure items

Used Shure WBH54 Supercardioid Headworn Condenser Microphone with TA4F (Mini 4-Pin) Connector, Tan

SKU: US1821283
Be the first to review this item

This item is no longer available.

Buy it New

Shure WBH54 Supercardioid Headworn Condenser Microphone, Tan
Shure WBH54 Supercardioid Headworn Condenser Microphone, Tan
$319.00
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure WBH54 Specifications

  • Transducer

    Electret Bias Condenser

  • Polar Pattern

    Supercardioid

  • Frequency Response

    50Hz to 20KHz

  • Dynamic Range (Typical)

    110 dB (max. SPL with 1k load, minus typical A-wt. noise)

  • Signal-to-Noise Ratio

    55 dB at 94 dB SPL

  • Maximum Sound Pressure Level

    149 dBSPL at 1% THD/1 kOhm load

  • Preamp Output Impedance

    136 ohms

  • Current Drain

    4.6 mA (preamp and microphone)

  • Output Noise

    39.0 dB typical; 42.0 dB maximum

  • Power Requirements

    Phantom power; 11 to 52 Vdc positive on pins 2 and 3, return on pin 1 (ground)

  • Output Impedance

    150 Ohms

  • Output Connectors

    4-Pin, Tini Q-G Connector

  • Dimensions

    1.5 m (4.92 ft), small-diameter, shielded, with mini 4-pin connector (TA4F)

  • Weight

    135.35 g (4.75 oz.) microphone and in-line preamp

About Shure WBH54 Supercardioid Headworn Condenser Microphone with TA4F (Mini 4-Pin) Connector, Tan

Shure WBH54 Supercardioid Headworn Condenser Microphone with TA4F (Mini 4-Pin) Connector, Tan Features

  • Comfortable, latex-free Dynaflex earforms that hide behind the ears
  • Thin, non-reflective wireframe that is easily hidden underneath hair
  • Ultra-thin detachable microphone boom mount for right or left positioning
  • Interchangeable frequency response caps (mild or high, two pieces each)
  • Clothing clip for securing cable
  • Corrosion resistant
  • Easy to clean
  • Durable carrying case for protective storage
  • TA4F (Mini 4-Pin) connector for use with wireless systems

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure WBH54 Supercardioid Headworn Condenser Microphone
  • Plastic Carrying Case
  • 2 x Foam Windscreens
  • Swiveling Lapel Clip
  • Item Note: Missing 2x High Boost Equalization Caps and 2x Mild Boost Equalization Caps.
