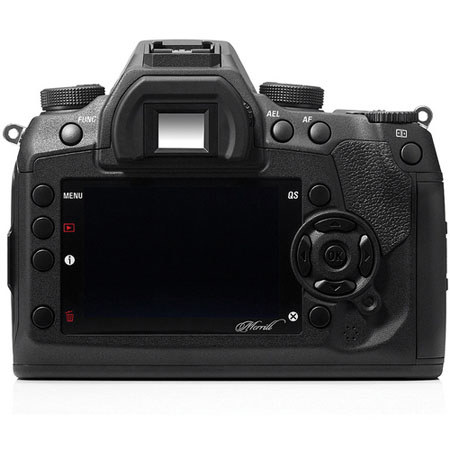

Sigma SD1 Merrill 46 Megapixel Digital SLR Camera Body with Foveon Sensor

Picture does not represent the actual item
See what's in the box

See all Sigma items

Used Sigma SD1 Merrill 46 Megapixel Digital SLR Camera Body with Foveon Sensor

SKU: US1742859
(2)

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

2017-08-11T12:53:43

Rated 5 out of 5

Best SD Yet

This is my third Sigma Digital over a 15 year span. This is by far the best yet. Great image quality, and the body fits my hand like it was custom made for me.

William J.

2015-01-22T19:00:00

Rated 2 out of 5

A disappointment for a top of the line..

I tested sigma camera SD1 for one day and battery lasted for only 90 shots first charge 72 shots the second charge.(about 73 degrees outdoors) has interesting buffer design 2 or 3 buffers. Indoor portrait photos were below expectations in color and b and w I give it no star (that bad (quality). My small kodak(digital) camera ($159.00) takes much better pictures (indoor portraits) with same conditions for indoor (natural lighting etc.)both cameras using no flash and with camera flash... will check studio set up style lighting later. SD1 takes only 10 megapixel b&w (disappointing) no pro adjustments (picture) like Nikon, canon, sony. No live view and video recording (1080 HD) also. I recommend demo camera in camera store take pictures(inside store) and check results before buying.. returning it is a lot of trouble. I tested 17-50mm f2.8 sigma probably will be disc. soon has angular distortion on linear perpendicular at 17mm to 30mm (maybe manufacture defect.) or engineering design (sigma has no level indicator in viewfinder) like some other manufactures but lens seems to have good dep of field and at 2.8 good bokeh effect but lens is sharp. I try a 70-300mm apo sigma and photo's were TOTALLY unacceptable (just like what p. photo said)lens seem sharp but picture quailty is really bad.(no star for all types of photography) but sigma claims at web site different autofocus design is used for that lens (okay but manual focus is also totally unacceptatble picture quailty) similar to what magazine said so buyer beware for sure. test demo camera to be sure.

B b.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sigma SD1 Specifications

  • Format

    Interchangeable lens SLR camera

  • Storage Media

    Compact Flash (Type I, UDMA compatible)

  • Image Sensor Size

    23.5x15.7mm

  • Lens Mount

    SIGMA SA bayonet mount

  • Compatible Lenses

    SIGMA SA mount interchangeable lenses

  • Angle of View

    Equivalent to approx. 1.5 times the focal length of the lens (for 35mm cameras)

  • Image Sensor

    Foveon X3 direct image sensor (CMOS)

  • Pixels

    Total Pixels 48MP, Effective Pixels 46MP (4,800x3, 200x3 layers)

  • Aspect Ratio

    3:2

  • Still Image Format

    Exif 2.3, DCF 2.0

  • Recording Mode

    Lossless compression RAW data (12-bit, High, Medium, Low), JPEG(High, Medium, Low)

  • File Size: RAW

    High Approx: 45 MB (4,704 x 3,136 x 3)
    Medium Approx: 24 MB (3,264 x 2,176 x 3)
    Low Approx: 12 MB (2,336 x 1,568 x 3)

  • File Size: JPEG (High)

    Fine Approx: 10 MB (4,704 x 3,136)
    Normal Approx: 5.6 MB (4,704 x 3,136)
    Basic Approx: 4.2 MB (4,704 x 3,136)

  • File Size: JPEG (Medium)

    Fine Approx: 5 MB (3,264 x 2,176)
    Normal Approx: 2.7 MB (3,264 x 2,176)
    Basic Approx: 2 MB (3,264 x 2,176)

  • File Size: JPEG (Low)

    Fine Approx: 2.5 MB (2,336 x 1,568)
    Normal Approx: 1.4 MB (2,336 x 1,568)
    Basic Approx: 1 MB (2,336 x 1,568)

  • Continuous shooting speed

    High:5 frame/sec., Medium:6 frame/sec., Low:6 frame/sec

  • Continuous buffer

    High:Max. 7 frames, Medium:Max. 14 frames, Low:Max. 14 frames

  • Interface

    USB (USB2.0), Video Out (NTSC/PAL)

  • White Balance

    8 types (Auto, Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash and Custom)

  • Color Mode

    7 types (Standard, Vivid, Neutral, Portrait, Landscape, B&W, Sepia)

  • Viewfinder Type

    Pentaprism SLR viewfinder

  • Viewfinder Frame Coverage

    98% vertical, 98% horizontal

  • Viewfinder Magnification

    0.95x (50mmF1.4)

  • Eye point

    18mm

  • Diopter Adjustment Range

    -3.0 dpt - +1.5 dpt

  • Auto Focus Type

    TTL phase difference detection system

  • AF Point

    11 points twin cross sensor

  • AF Operating Range

    EV -1 to +18 (ISO100)

  • Focus Mode

    Single AF, Continuous AF (with AF motion prediction function), Manual

  • AF Point Selection

    Automatic Selection, Manual Selection

  • Metering Systems

    77 segment Evaluative Metering, Spot Metering, Center Area Metering, Center-Weighted Average Metering

  • Metering Range

    EV 1 to 20 (50mm F1.4: ISO100)

  • Exposure Control System

    [P] Program AE (Program Shift is possible),[S] Shutter Speed Priority AE,[A] Aperture Priority AE, [M] Manual

  • ISO Sensitivity

    ISO100,200,400,800,1600,3200,6400

  • Exposure Compensation

    +/-3 EV (in 1/3 stop increments)

  • Auto Bracketing

    Three or Five frames (in 1/3 steps, Appropriate Exposure-Under Exposure-Over Exposure)

  • Shutter Type

    Electronically Controlled Focal Plane Shutter

  • Shutter Speed

    1/8000 - 30 sec.,Bulb (up to 30 sec. With Extended Mode: 2 min.)

  • Flash Connectivity

    Hot shoe (contact X synchronization at 1/180 sec. or less, with dedicated flash linking contact)

  • Built-in Flash

    Manual Pop-up Built-in flash, GN11 (17mm lens angle covered)

  • LCD Monitor

    Type: TFT color LCD monitor, Monitor Size: 3.0", LCD Pixels: Approx. 460,000

  • Reviewing Images

    Single frame display, Multi display [9 frames],Zoom, Slide Show

  • LCD Monitor Language

    English / Japanese / German / French / Spanish /Italian / Chinese (Simplified) / Korean / Russian

  • Power

    Li-ion Battery Pack BP-21, Battery Charger BC-21,AC Adapter SAC-4 (optional)

  • Dimensions (W x H x D)

    145.5 mm x 113.5 mm x 80.0 mm/5.7" x 4.4" x 3.1"

  • Weight

    700g /24.7oz (without battery and card)

Related Articles & Videos

Outdoor and Travel Photography Basics I to R

Outdoor and Travel Photography Basics I to R

If your photography interests lie in taking outdoor and travel photographs, you have come to the right place. Here's part two...Everything you need to know to bring home great shots.

Read more
Outdoor and Travel Photography Basics A to H

Outdoor and Travel Photography Basics A to H

A to Z, Part I....If your photography interests lie in taking outdoor and travel photographs, you have come to the right place. Beginning with this article, I’ll share my best photo tips and techniques, from A to Z.

Read more

About Sigma SD1 Merrill 46 Megapixel Digital SLR Camera Body with Foveon Sensor

The Sigma SD1 Merrill DSLR is a truly groundbreaking digital SLR camera which incorporates a 46 megapixel (4,800x3, 200x3 layers) 24x16mm APS-C x3 direct image sensor. The SD1 Merrill is Sigma's flagship digital SLR model housed in a solid magnesium alloy body making it extremely lightweight with an overall nice feel and pleasant handling. The splash proof feature protects the camera from the effects of harsh weather conditions. Incorporating a 24x16mm APS-C x3 direct image sensor, dual "TRUE" (Three-layer Responsive Ultimate Engine) II image processing engines and the 46 megapixel sensor ensures that high resolution images are processed quickly with high definition and a smooth and subtle graduation of color delivering an image size of approximately 35/45 mp in RAW/TIFF files. This latest technology meets the strictest standards and requirements of professionals and enthusiast photographers for all types of photography.

Sigma SD1 Merrill 46 Megapixel Digital SLR Camera Body with Foveon Sensor Features

  • World's first full color image sensor: Foveon X3 46 Megapixel image sensor
  • Splash proof design prevents dust and water from getting inside the camera body
  • 46 megapixel
  • True II Image processing engine
  • CFcard
  • A lightweight yet solid magnesium alloy body designed to withstand rough use andshocks in harsh conditions.
  • Large, highly visible 3.0' TFT color LCD Monitor
  • Housed in solid magnesium alloy body

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Battery
  • Box
  • Charger
  • Component Cable
  • Caps
  • Strap
  • USB Cable
