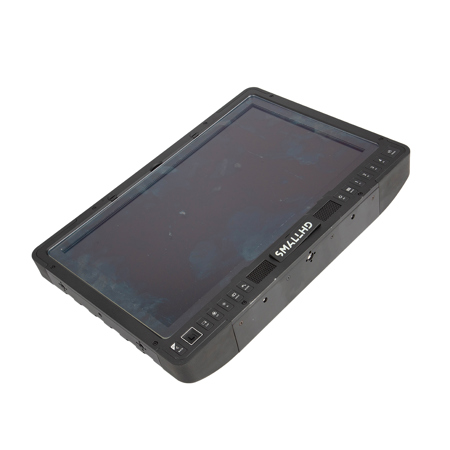

Used SmallHD 1703 P3X Bolt Sidekick Reference Grade 17" Production Monitor with Built-in Teradek Sidekick II Receiver

IPS LCD

17

1920x1080

133 PPI

16:9

16.52

1000 Nits

1400:1

100% DCI-P3

True 10 bit

178 degrees Vertical and Horizontal

White LED

Yes - 0 - 100 in 6 steps with 100-nit studio mode

No

YCC 4:2:2 @ 10bit: 1920x1080p60, 1920x1080p59.94, 1920x1080p50, 1080i60, 1080i59.94, 1080i50

YCC 4:2:2 @ 10bit: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Teradek Sidekick 5 antenna unit

< 1mSec (0.001 sec)

HDMI (8-b RGB, YCC 4:2:2, YCC 4:4:4) & SDI (10-b YCC 4:2:2) 1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50

Visually lossless

48 kHz 24-bit PCM

5GHz

AFS (Automatic frequency selection)

AES-127

Upto 500' line of sight (or 500' LoS)

Can coexist with WiFi and 5 Ghz cordless phones

2x BNC 3G Inputs and 2x BNC 3G Outputs

1x Output, HDMI Type-A Receptacles (full size)

1x Headphone Jack on Front of Monitor

1x AC Power Input - 3 Prong 90-260V, 1x XLR 4-pin Input 12-34VDC

1x Lemo Output 12VDC @ 4A Max

1x Front USB2, 2x Rear USB2

Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 1-4 Instant Selection; Tools Menu

Dedicated Capture Button on Front Bezel

SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving

USB ports support storage devices for LUTs, Captured Images, Image Overlays, Profile Saving - 3x USB 2.0 (2 rear, 1 front)

Single XLR 4-pin 12-34V DC IN for Battery or Power Supply, 12V Lemo 2-pin OUT MAX 2A

DC: 12 - 34 VDC, AC: 100 - 240 VAC 50-60Hz

20 - 104W

Included

Yes

Gold-Mount, V-Mount with optional Battery Plate Accessory

12V @ 2A via 2-pin Locking Connector

Battery Charging Not Supported

1.1-2x & 2x-8x Custom Zoom Levels with smooth pan via joystick

Preset Aspect Ratios & Customizable

Canon 5DMkii & Canon 7D

Image Crop & Scale Tool for Overscan; Image Size & Position for Underscan

.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x, Custom

Automatic or Manual Control

Automatic or Manual Control

Wireless - SDI, Wireless - HDMI & SDI - HDMI

User Adjustable Color Style and Intensity

User Adjustable Intensity

Rainbow, Arri Style, Custom up to 10 bands

Dual - User Configurable

Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

Yes

Fully User Customizable

Luma & RGB Style

With Dedicated Button and Image Gallery

Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

Available on SDI 1 or HDMI Out. Applied on Output Preview Page.

via SD Card or USB Storage Device

Yes with Opacity Slider and Blink Setting

SmallHD Unified Firmware Version 3.5.1 or Later

Up to 8 channel

FCC, IC, CE, RoHS

32 to 100 Degree F (0 to 37 Degree C)

0 to 104 Degree F (-17 to 40 Degree C)

Multiple 1/4"-20 & 3/8"-16 Threads on Top, Bottom, Left & Right Sides. Cold Shoe Style Rails on Back of Monitor. Available Cheeseplate for Battery Bracket Mounting. Available Rapid Rail Mount interfaces with cold shoe slots for 2 additional 1/4"-20 threads.

Optional Acrylic Screen Protector

17 x 11.7 x 2.5" (43.18 x 29.72 x 6.35cm)

12.25 lb (5.56kg) (Item Only without battery)
