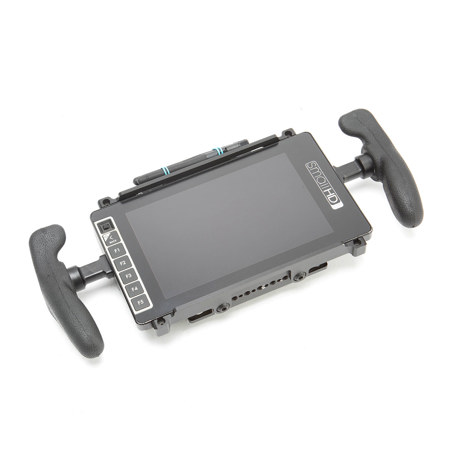

SmallHD 703 Bolt 7" Wireless LED Director's Monitor Bundle - SKU#1822572

Picture does not represent the actual item

See all SmallHD items

Used SmallHD 703 Bolt 7" Wireless LED Director's Monitor Bundle.

SKU: US1822572
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Used SmallHD 703 Professional Grade 7" Full HD Ultra Bright Field Monitor
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

SmallHD 703 Bolt Specifications

Display

Display

Jump to...

  • Panel Type

    IPS LCD

  • Resolution

    1920 x 1080

  • Pixel Density (PPI)

    323 ppi

  • Aspect Ratio

    16:9

  • Active Area

    7.02

  • Brightness

    3000

  • Contrast

    1150:1

  • Color Gamut

    70% NTSC

  • Color Depth

    10-bit

  • Viewing Angle

    178 Degrees (CR<10)

  • Backlight Type

    White LED

Viewfinder (EVF)

Jump to...

  • Variable Field of View

    Range

Input Signal Types/Formats

Jump to...

  • 3G-SDI

    YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50

  • HD-SDI

    YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • Audio

    SDI - Monitor through Headphone Jack - Metering up to 8 channels

Output Signal Types/Formats

Jump to...

  • 3G-SDI

    YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50

  • HD-SDI

    YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • Audio

    SDI - Incoming Audio Stream is sent downstream via SDI connection

Wireless

Jump to...

  • SDI Ancillary Data

    Supports transmitting metadata, timecode and start/stop flags from certain camera manufacturers

  • Color Sampling

    For SDI: YCbCr 4:2:2, 10-bit

  • Supported Resolutions

    1080p60/59.94/50/30/29.97/25/24/23.98 1080psf30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 480i(NTSC)/576i(PAL)

  • Video Compression

    Visually lossless

  • Audio Compression

    48KHz 24-bit PCM

  • Switches

    On/Off

  • Wireless Network

    5GHz (20&40MHz), DFS Frequencies Available

  • RF Channel Selection

    Auto only (NOT configurable)

  • Encryption

    AES-129

  • RF Power

    15dBm EIRP

  • Range

    Up to 300' line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

Connector Type

Jump to...

  • SDI

    1x 3g Input, 1x 3g Output

  • HDMI

    No

  • Component

    No

  • Composite

    No

  • Audio

    1x 1/8" Headphone Jack

  • Power In

    1x Locking LEMO 2-pin Connectors Power Input

  • USB

    1x Proprietary Locking LEMO 5-pin Connectors Power Input

Controls

Jump to...

  • Primary Control Interface

    Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons

Data I/O

Jump to...

  • Storage

    SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving

  • USB

    USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving

Power

Jump to...

  • Connector Type

    1x Locking LEMO 2-pin Connectors Power Input

  • Voltage

    With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal
    With High Voltage Battery Plate: 12 - 34V 14.4V Nominal
    With LEMO Input: 12 - 34V Max

  • Overload Protection

    Yes

Environmental

Jump to...

  • Compliance

    FCC, CE, RoHS

  • Operating Temperature

    0 to 100 deg. F (-18 to 38 deg. C)

  • Storage Temperature

    -4 to 120 deg. F (-20 to 49 deg. C)

  • Screen Protection

    AR Coated Gorilla Glass Optical Bonding on Panel

  • Mount Points

    1x 1/4"-20 Thread on left and right side of Monitor, 7x 1/4"-20 Thread on Bottom of Monitor, 7x 1/4"-20 Thread on Top of Monitor

Software

Jump to...

  • Pixel Zoom (type)

    2x & 4x Zoom with smooth pan via joystick

  • Frame Guides

    Yes: Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    Yes: 1.33x, 1.5x, 1.66x, 2.0x

  • Image Rotate(Manual/Automatic)

    Yes - Automatic or Manual Control

  • Image Flip (Manual/Automatic)

    Yes - Automatic or Manual Control

  • Focus Assist (Colors)

    Yes - User Adjustable Color Style and Intensity

  • Peaking

    Yes - User Adjustable Intensity

  • False Color

    Yes - Rainbow & Arri Style

  • Zebra

    Yes - Dual - User Configurable

  • Waveform

    Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Yes - Fully User Customizable

  • Histogram

    Yes - Luma & RGB Style

  • Image Capture

    Yes - With Dedicated Button

  • Custom LUTS

    Yes - Loadable as Looks on Pages or as System wide Color Calibration via the settings menu

  • LUT Downstream

    Yes - Available on SDI Out. Applied on Output Preview Page.

  • LUT Import

    Via SD Card or USB Storage Device

  • Image Overlay

    Yes with Opacity Slider and Blink Setting

  • Audio Meters

    Yes - up to 8 channel

General

Jump to...

  • Dimensions (WxL)

    1.21 x 8.4" (3.07 x 21.34cm)

  • Weight

    32 oz (907.18g)

About SmallHD 703 Bolt 7" Wireless LED Director's Monitor Bundle - SKU#1822572

Streamlined HD Monitoring - No Cables Required
SmallHD and Teradek have joined forces to create a wireless monitoring device that's easy to see, easy to power and easy hold. Easily pair the 703 Bolt with Teradek Bolt 500, 1000 or 3000 transmitters.

Untethered Directors Monitor
Equipped with a built-in wireless receiver and cutting edge software tools like real-time 3D LUTs, the 703 Bolt is the ultimate kit for any director (no cage required).

Powerful 1st AC Monitor
With Teradek wireless technology inside, the 703 Bolt can easily be used as an untethered focusing tool. Its display is tack sharp and software features like peaking, focus assist and pixel zoom are easily accessible.

Bring the Village to the People
Bring the 703 Bolt to your video village and easily share its built-in wireless feed with another monitor via SDI. Its versatility on set is truly unmatched.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SmallHD 703 Bolt 7 " Full HD LED Monitor with Built-In Wireless HD Receiver
  • 3x Antennas
  • Gold Mount Battery Plate
  • Side Handle Set
  • Item Note: Missing Neck Strap
