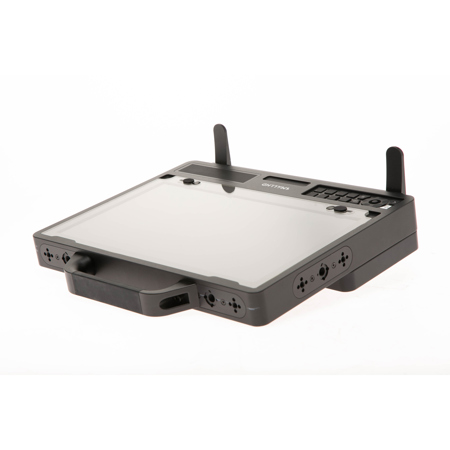

Used SmallHD Cine 13" 4K High-Bright Production Monitor (177 Hours)

SKU: US1710631

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-12-06T04:59:44

Rated 5 out of 5

Huge upgrade from the 1303.

Huge upgrade from the 1303. Panel is super sharp and bright. Monitor is very lightweight and the optional hot swap battery plate is a must have.

Asa R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

SmallHD Cine 13 Specifications

Display

Display

Jump to...
  • Diagonal Size

    13.3" (34cm)

  • Resolution

    3840 x 2160

  • Brightness

    1500+nits

  • Contrast

    1300:1

  • Gamut

    100% REC.709

  • Color Depth

    10-bit (8+2)

  • Backlight Type

    Edgelit, LCD

  • Display Size

    13" (33.02cm)

  • DCI-P3 Color

    100% REC.709

Input Signal

Jump to...
  • 12G-SDI Input Types

    4x 12G-SDI

  • HDMI Input Types

    1x HDMI 2.0 (4K60)

Output Signal

Jump to...
  • 12G-SDI Output Types

    4x 12G-SDI

  • Audio Output Types

    1x 3.5mm 3-pin Stereo Headphone Jack

Data I/O

Jump to...
  • Connector Type

    1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

  • Input

    1x XLR 4-pin 12 - 34VDC IN (210W max, 12V-34V, 18A max)

  • Output

    2x 2pin (12V / 2A combined) 1x USB (2.4A) (Front) 1x USB (1.5A) (Front) 1x USB-C (5V / 1.5A)

  • Battery Plate Included

    No

  • Battery Types

    1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

Physical

Jump to...
  • Weight

    With handle & feet: 6.8 lbs (3.09kg)

About SmallHD Cine 13" 4K High-Bright Production Monitor - (177 Hours) SKU#1710631

FEATURED REVIEWS

Huge upgrade from the 1303.

By Asa R.

Huge upgrade from the 1303. Panel is super sharp and bright. Monitor is very lightweight and the optional hot swap battery plate is a must have.

Are you ready to elevate your video production experience with the SmallHD Cine 13" 4K High-Bright Production Monitor This state-of-the-art device is your ultimate partner for on-set monitoring, offering unparalleled clarity and a multitude of setup options. Despite its compact size and lightweight design of just 6.8 lbs, this monitor is a true powerhouse, seamlessly integrating into your production workflow.

Enhance your studio or on-location shoots with the SmallHD Cine 13 UHD 4K High-Bright Monitor, equipped with the advanced PageOS 4 software. This software facilitates a sharp 13.3" display and a plethora of features tailored for viewing UHD 4K video footage under any lighting conditions. Experience superior color accuracy with 10-bit DCI-P3 and 100% Rec.709 color intelligence, along with an impressive 1500 nits brightness and a 1300:1 contrast ratio.

The SmallHD Cine 13 isn't your average monitor. It boasts a stunning 338 PPI display with a 4K resolution of 3840 x 2160, all packed into a compact 13.3" display. This monitor ensures you never have to sacrifice quality for portability, delivering crystal clear images even in bright outdoor settings.

Achieve your creative vision with the monitor's 10-bit DCI-P3 and 100% Rec. 709 color intelligence, coupled with a 1300:1 contrast ratio. These features ensure vibrant, true-to-life colors that you can rely on, whether you're shooting indoors or outdoors.

The PageOS 4 software platform is the brain behind the screen, offering a user-friendly interface and access to features such as 4K HDR waveform and scopes, Dual & Quad-View, Color Pipe color rendering, and a Monitor Calibration Wizard.

The SmallHD Cine 13 also serves as a connectivity hub, featuring four 12G-SDI inputs and outputs, one HDMI 2.0 input and output, and a 3.5mm headphone output. The Unibody Smart Chassis design incorporates an Arca Slide-On Rail for battery and accessory mounting, 2x 2-pin accessory power outputs, and a lower mounting rail for ultimate flexibility.

Never worry about power interruptions with the Cine 13's hot-swappable dual inputs. Switch between the 4-pin XLR input and optional battery power, and simultaneously power your peripherals with two 2-pin LEMO, two USB Type-A, and one USB Type-C outputs.

Customize your display to your liking with PageOS 4's display tools and monitoring features. Adjust aspect ratios, apply anamorphic de-squeeze, customize false colors and waveforms, capture images, import custom LUTs via SD card or USB, and monitor up to 8 channels of audio.

With one 4-pin XLR 12 to 34V, 12A input, and multiple USB outputs, the Cine 13 offers flexible power options. You can also opt for separately available V-mount or Gold mount battery plates for even more versatility.

Discover new creative possibilities and never miss a detail with the SmallHD Cine 13 UHD 4K High-Bright Monitor - your superior choice for high-quality viewing in any production environment.

SmallHD Cine 13" 4K High-Bright Production Monitor - (177 Hours) SKU#1710631 Features

  • Ultra-lightweight at 6.8lbs with a 338 PPI display
  • 4K Resolution on a 13.3" Display with 1300:1 Contrast and 10-Bit Color
  • 1500+nits Brightness on a 13.3" (34cm) IPS LCD
  • 12G-SDI and HDMI 2.0 Inputs and Outputs
  • Support for 3D LUTs and SD Card Storage
  • Hot-Swappable Dual Power Input
  • Power Outputs: 2 x 2-Pin, 3 x USB Type-A
  • Dual and Quad View with 100% Rec.709 Color
  • Monitoring Tools: Waveform, False Color, Focus Assist
  • Additional Features: Peaking, Pixel Zoom, Pages, Page Tabs
  • 4K HDR waveform and scopes via PageOS 4
  • 4x 12G-SDI and 1x HDMI 2.0 Inputs, 4x 12G-SDI and 1x HDMI 2.0 Outputs
  • Arca Slide-On Rail, 2x 2-pin accessory outputs, Lower mounting rail
  • Power via 4-pin XLR, hot-swappable dual inputs, Dual-GM/VM Battery Plate (sold separately)

What's in the box:

  • SmallHD Cine 13" 4K High-Bright Production Monitor
  • Power Supply
