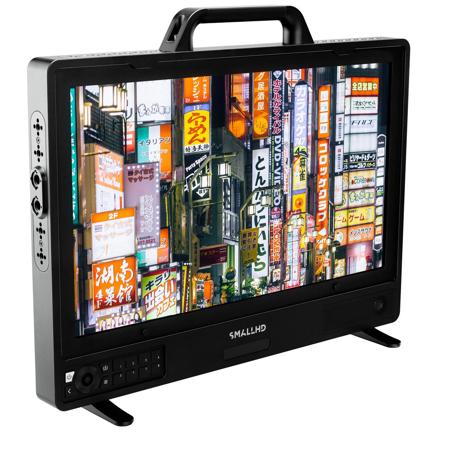

Used SmallHD Cine 18" 4K UHD High-Bright Production Monitor

SKU: US1726559

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

SmallHD Cine Specifications

Display

Display

Jump to...
  • Diagonal Size

    18.4" (46.73cm)

  • Resolution

    3840 x 2160

  • Brightness

    1100nits

  • Contrast

    1300:1

  • Gamut

    100% REC.709

  • Color Depth

    10-bit (8+2)

  • Backlight Type

    Edgelit

  • Display Size

    18" (45.72cm)

  • Panel Resolution

    3840 x 2160

  • Color Bit Depth

    10-bit (8+2)

Input Signal

Jump to...
  • 12G-SDI Input Types

    4x 12G-SDI

  • HDMI Input Types

    1x HDMI 2.0 (4K60)

Output Signal

Jump to...
  • 12G-SDI Output Types

    4x 12G-SDI

  • Audio Output Types

    1x 3.5mm 3-pin Stereo Headphone Jack(coming soon)

Data Input/Output

Jump to...
  • Connector Type

    1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

  • Input

    1x XLR 4-pin 12 - 34VDC IN (210W max, 12V-34V, 18A max)

  • Output

    2x 2-Pin (12V / 2A combined), 1x USB (2.4A) (Front), 1x USB (1.5A) (Front), 1x USB-C (5V / 1.5A)

  • Battery Plate Included

    No

  • Battery

    1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Weight

    11.15 lbs (5.06kg)

Related Articles & Videos

Shooting the Holiday Blockbuster: Jo Willems and “MockingJay – Part 2”

Shooting the Holiday Blockbuster: Jo Willems and “MockingJay – Part 2”

As the last chapter of "The Hunger Games" saga reaches its conclusion this Friday, we examine the cinematography behind "Mockingjay -- Part 2."

Read more
Two Camera Interview

Two Camera Interview

Join Daniel Norton for On Set as he walks you through the process of setting up a two camera interview.  Whether you want to add life and dimension to a web video or you are shooting for a magazine style TV show, shooting with two cameras will d...

Read more

About SmallHD Cine 18" 4K UHD High-Bright Production Monitor

You can achieve unparalleled visual fidelity and operational versatility on set with the SmallHD Cine 18" 4K UHD High-Bright Production Monitor. This professional-grade monitor is engineered to fulfill the exacting demands of film and television production, offering a perfect blend of size, luminance, color precision, and mobility that is essential for any high-stakes production environment.

Optimized Display for Professional Clarity
The SmallHD Cine 18" monitor boasts a large, vivid display with a 3840 x 2160 4K UHD resolution that reveals the finest details in your footage. The impressive 1100 cd/m brightness and 1300:1 contrast ratio ensure that your images are clear and vibrant, even in daylight conditions. Crafted from ultra-lightweight aluminum, the monitor's unibody construction has been rigorously tested on-set to guarantee durability and reliability. With an image quality that meets the standards of cinematographers, directors, and video production teams, this monitor is an indispensable tool for achieving the best possible shot.

Advanced SmallHD OS4.1 Technology
Powered by the cutting-edge SmallHD OS4.1, the monitor offers a 10-bit (8+2 FRC) color depth, enabling nuanced color representation and greater depth in your visuals. The intuitive user interface includes preconfigured pages and tabs for streamlined navigation. Innovative features such as an internal calibration wizard, customizable 4K waveform with region-of-interest highlighting, and a settings dashboard for quick adjustments, significantly enhance the user experience. The OS4.1 also introduces customizable false color overlays, pixel zoom, focus assist, and peaking, all part of a comprehensive UI overhaul that boosts productivity and ease of use.

Flexible Mounting and Power Solutions
Mounting the SmallHD Cine 18" monitor is a breeze with its VESA compatibility and multiple 1/4"-20 threads, allowing for secure attachment to stands and rigs. The monitor offers diverse power options, including a 4-pin XLR input and dual 2-pin LEMO outputs, accommodating a range of power sources. The inclusion of USB Type-C and Type-A outputs adds to its versatility. For on-the-go power, the monitor supports optional V-mount or Gold mount battery plates, which are hot-swappable, ensuring continuous operation during long shooting days.

Extensive Connectivity for Seamless Integration
Equipped with a full suite of connectivity options, the Cine 18" monitor includes an HDMI 2.0 input, an RJ45 Ethernet port for network integration, and an RJ45 GPI port for additional control. The monitor also features a 3.5mm headphone jack for real-time audio monitoring. With its robust input and output capabilities, this monitor is designed to effortlessly become a part of your existing workflow.

Experience the pinnacle of on-set monitoring with the SmallHD Cine 18" 4K UHD High-Bright Production Monitor. It's not just about enhancing your production quality - it's about ensuring that every pixel of your vision is captured with the utmost clarity and precision.

SmallHD Cine 18" 4K UHD High-Bright Production Monitor Features

  • Perfect blend of screen size, brightness, color-accuracy, and portability
  • Ultra-lightweight aluminum unibody construction
  • 1100nits brightness and 1300:1 contrast ratio
  • 4x 12G-SDI Inputs/Outputs for workflows up to 4K resolution
  • Updated SmallHD OS4.1
  • 3840 x 2160 resolution with 10-bit (8+2 FRC) color intelligence
  • Edge-lit display with four 12G/6G/3G/HD-SDI inputs and outputs, and one HDMI 2.0 input
  • Innovative Page Builder in OS4.1 with full-featured UI, preconfigured pages, and page tabs
  • Calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking
  • VESA pattern and 1/4"-20 threads for mounting
  • 4-pin XLR input, dual V-mount or Gold mount battery plate, hot-swappable
  • SD card slot for 3D LUTs, RJ45 Ethernet port, RJ45 GPI port, 3.5mm headphone output
  • Multiple power options: 4-pin XLR, 2-pin LEMO, USB Type-A, USB Type-C
  • Separately available V-mount or Gold mount battery plates, hot-swappable XLR and battery options

What's in the box:

  • SmallHD Cine 18" 4K UHD High-Bright Production Monitor
  • 36" 4K HDMI to 4K HDMI Cable (CBL-SGL-HDMI-4K-36)
  • 24V Power Supply
  • (Battery Plate Not Included)
  • Original Box
