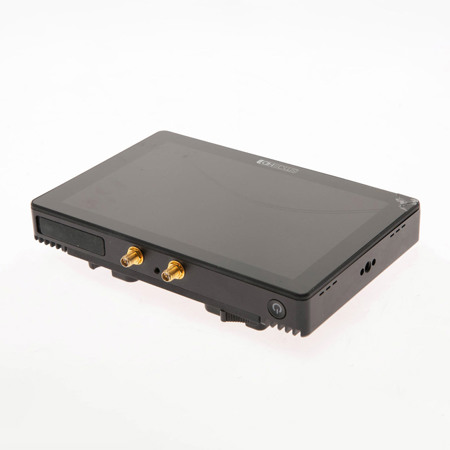

SmallHD Cine 7 1920x1200 7" Touchscreen Monitor - SKU#1685087

Picture does not represent the actual item
See what's in the box

See all SmallHD items

Used SmallHD Cine 7 1920x1200 7" Touchscreen Monitor with Built-in Teradek Bolt Sidekick II Receiver and Gold Mount Bracket, DCI-P3 Color, 1800nits Brightness

SKU: US1685087
(3)

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor
undefined undefined: Picture 1 regular
SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor, Bundle with Teradek Bolt 6 750 V-Mount Receiver Module and Rubber Handles
undefined undefined: Picture 1 regular
Used SmallHD Cine 5 5" 16:9 Full HD Touchscreen On-Camera Monitor
undefined undefined: Picture 1 regular
Used SmallHD Cine 7 Full HD 1920x1200 7" Touchscreen Monitor with Built-in Teradek Bolt 500 Receiver & V-Mount Bracket, DCI-P3 Color, 1800 nits Brightness
undefined undefined: Picture 1 regular
SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor, Bundle with Monitor Mount, Lithium-Ion Battery Kit, Gold Mount Bracket
undefined undefined: Picture 1 regular
SmallHD Cine 5 5" 16:9 Full HD Touchscreen On-Camera Monitor
undefined undefined: Picture 1 regular
SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor with Teradek Bolt 4K RX Monitor Module, Gold Mount, Lightweight Rubber Handles
undefined undefined: Picture 1 regular
SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor, Bundle with Teradek Bolt 6 750 Gold Mount Receiver Module and Rubber Handles
undefined undefined: Picture 1 regular
Hollyland Pyro S HDMI/SDI Wireless Video Transmission and Pyro 7 7" Monitor Kit
undefined undefined: Picture 1 regular
SmallHD Indie 7 7" Full HD 16:9 Touchscreen On-Camera Monitor, Bundle with Teradek Bolt 6 750 V-Mount Receiver Module and Rubber Handles
Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

2021-12-27T06:12:58

Rated 5 out of 5

A perfect monitor for on-camera.

It is perfect for my needs. I love the ability to add or remove modules. The screen is very responsive and bright enough to see in direct sun. That's all I can really ask for in a professional monitor. I upgraded from the 702 bright and can't go back. I was worried about smudges from my fingers, but it doesn't my viewing or experience at all. The lemo built in is such a wonderful feature too. The unit it lighter than my 702 as well. Can't go wrong with this kit.

Reid P.

2019-09-28T00:55:00

Rated 5 out of 5

An Accurate Surprise

I was a little hesitant to purchase this because I had heard small hd colors weren’t that accurate. But I was swayed by the Red camera control tech. And I was pleasantly surprised at how easy these monitors are to calibrate with the X-Rite module and the results! Great monitor. Accurate. Every tool you need and the OS is incredible.

ADAM R.

2019-08-19T10:15:12

Rated 2 out of 5

Great monitor and a fair price.

So far a great monitor. I like the size. The low profile size makes it easy to work with on set.

Michael B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

SmallHD Cine 7 Specifications

Display

Display

Jump to...

  • Panel Type

    IPS LCD

  • Size Diagonal

    7.02"

  • Resolution

    1920x1200

  • Pixel Density

    322 PPI

  • Aspect Ratio

    16:10

  • Active Area

    5.95 x 3.72

  • Contrast

    1000:1

  • Color Gamut

    100% DCI-P3 Coverage

  • Color Depth

    8-b Panel with 10-b Scopes

  • Viewing Angle

    8-b Panel with 10-b Scopes

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

Input Signal Types/Formats

Jump to...

  • 3G-SDI

    YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI

    YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    YCC 4:2:2 at 10-bits: 480i59.94, 576i50

  • HDMI

    YCC 4:2:2 at 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

  • Audio

    HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal Types/Formats

Jump to...

  • 3G-SDI

    YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI

    YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    YCC 4:2:2 at 10-bits: 480i59.94, 576i50

  • HDMI

    YCC 4:2:2 at 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

  • Audio

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Wireless

Jump to...

  • Video Inputs

    1x

  • Delay Tx To Rx

    < 1mSec (0.001 sec)

  • Supported Resolutions

    1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50

  • Video Compression

    Visually lossless

  • Audio Compression

    48 kHz 24-bit PCM

  • Wireless Network

    5GHz

  • RF Channel Selection

    AFS (Automatic frequency selection)

  • Encryption

    AES-128

  • Range

    Up to 500' line of sight (or 500' LoS)

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

Connector Type

Jump to...

  • SDI

    1x BNC 3G input and 1x BNC 3G selectable input/output

  • HDMI

    1 input and 1 output: HDMI Type-D Receptacles (full size)

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Power In

    2-pin Locking

  • USB

    1x USB 2.0 Micro-B receptacle

Controls

Jump to...

  • Primary Control Interface

    Touch Screen

  • Record/Capture

    Capture Tool

Power

Jump to...

  • Connector Type

    LEMO

  • Voltage

    DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

  • Recommended Power Supply

    Recommend DC 12~15V at ~2.5 amp or greater

  • Overload Protection

    DC input: Reverse polarity

  • Battery Types

    L-Series, V Mount, Gold Mount

  • Battery Chemistry

    Li-ion

  • Battery Charging Time (hours)

    Monitor does not support the charging of batteries

Software

Jump to...

  • Pixel Zoom (type)

    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

  • Image Rotate(Manual/Automatic)

    Automatic or Manual Control

  • Image Flip (Manual/Automatic)

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI to SDI & SDI to HDMI

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom with up to 10 nodes

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    Yes

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Downstream

    Available on SDI or HDMI Out. Applied on Output Preview Page

  • LUT Import

    Via SD Card or USB Storage Device

  • Image Overlay

    With Opacity Slider and Blink Setting

  • Audio Meters

    HDMI & SDI up to 8 channel

Receiver

Jump to...

  • Range

    300' (91.44m)

Environmental

Jump to...

  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    30 to 100 deg. F (-1 to 38 deg. C)

  • Storage Temperature

    0 to 120 deg. F (-18 to 49 deg. C)

  • Mount Points

    Four 1/4-20 Mount Points (Left, Right, Bottom and Back)

  • Dimensions (HxWxD)

    5.48 x 1.32 x 7.09" (13.92 x 3.35 x 18.01cm)

Related Articles & Videos

The Best On-Camera Monitors & External Camera Screens

The Best On-Camera Monitors & External Camera Screens

Do you need a bigger monitor for upcoming video shoots? Check out our top picks for the best on-camera monitor and external camera screen.
Read more

About SmallHD Cine 7 1920x1200 7" Touchscreen Monitor - SKU#1685087

Professional and expandable directors monitor, with a built-in Teradek Bolt Sidekick II receiver. (ARRI camera control sold separately)

SmallHD Cine 7 Monitor
Cine 7 is a top of the line professional 7" monitor with ARRI camera control. Its 1800 nit, daylight viewable display and 100% DCI-P3 coverage make this monitor an absolute joy to work with, in any production environment.

With Teradek RT overlay integration and Teradek wireless video technology, Cine 7 delivers an experience that represents the gold standard for A-list cinematography.

Built for Professionals
The Cine 7 offers the durability and flexibility required by demanding professionals. With a lightweight milled aluminum frame and several 1/4"-20 mounting points, the 7inch monitor is ready to perform on any rig and in any environment.

Cine 7 includes several 3G-SDI and HDMI inputs and outputs, as well as signal cross conversion. Power options include a locking 2-pin connector and interchangeable battery brackets (Gold, V and Sony L series). An Ethernet port allows for camera control connectivity.

Powered By OS3 Data Driven Confidence
SmallHD OS3 software gives directors and camera operators industry leading imaging tools and a simplified user experience. Customize Scopes, Waveforms and False Color how you desire. Apply real-time 3D LUTs quickly and easily. Save time and be more confident creating with this powerful, data-driven tool set.

Built-in Teradek Bolt Sidekick II receiver
Perfect for director's monitor rigs, the Sidekick II allows you to receive a Bolt video feed from any 500, 1000 or 3000 model. It supports 20 MHz Channels when paired with the Bolt 3000 and has a 300ft range. The Sidekick II also features an SDI Output with a 2-Pin Power Connector. The Sidekick II is lightweight and compact.

• Lightweight HD-SDI Receiver
• SDI Output with 2 Pin Power Connector
• Supports 20 MHz channels when paired with Bolt 3000
• 300 Ft Range
• Compatible with Bolt 500, 1000, 3000
• Supports 20 MHz channels when paired with Bolt 3000
• Supports Timecode and Start/Stop Flags
• Built-In Test Pattern Generator
• Super Lightweight and Compact

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SmallHD Cine 7 1920x1200 7" Touchscreen Monitor with Built-in Teradek Bolt Sidekick II Receiver
  • Gold Mount Battery Bracket
  • 2-Pin LEMO Power Adapter
  • 2x Antennas
  • Item Note: Missing Monitor Handle and Neck Strap; Sony L Series Battery Bracket; L-Series Battery Kit with Interchangeable AC Plugs; 8GB SD Card; Cleaning Cloth; UltraClear Screen Protector
