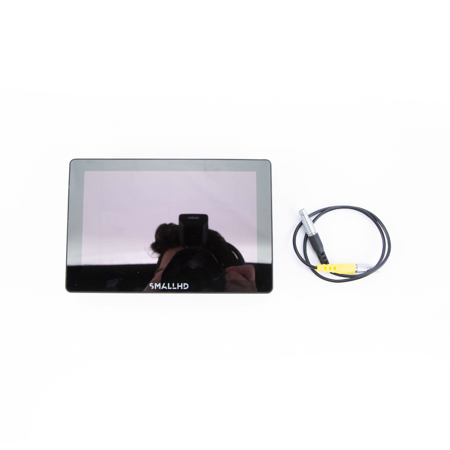

Used SmallHD Indie 7 7" Full-HD 16:9 Touchscreen On-Camera Monitor

SKU: US1970656 MFR: MON-INDIE7
Earn VIP Reward Points

What`s in the box:

  • Indie 7 7" Full-HD 16:9 Touchscreen On-Camera Monitor
  • Sony L-Series Battery Bracket
  • Batteries and Charger (Not Included)
See more

Key Features

  • Experience sharp detail with the SmallHD Indie 7's Full HD on-camera monitor.
  • Enjoy intuitive control using the vibrant 7" touchscreen video monitor display.
  • Achieve perfect focus using focus peaking tools on this SmallHD on-camera monitor.
  • Use HDMI & SDI inputs/outputs for flexible connectivity with your video equipment.
  • Get accurate colors with 10-bit color support on this 1920x1200 resolution screen.
  • Lightweight aluminum build at 26oz makes it perfect for handheld camera shoots.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-12-24T15:03:47

Rated 1 out of 5

Dead pixel

It came with a dead pixel, I can change this relieve if I?m sent a new unit to swap out or discounted.

Matias W.

2021-10-19T06:17:44

Rated 4 out of 5

I like it.

I like it, bright and clean

Rodgers G.

2021-02-23T08:57:30

Rated 5 out of 5

great purchase

One of the best purchase I did!!!

Thomas M.

SmallHD Indie 7 Specifications

Display

Display

Jump to...
  • Number of Displays

    1

  • Panel Type

    IPS-Type LCD

  • Display Size

    7.0" (17.8cm)

  • Screen Resolution

    1920 x 1200

  • Aspect Ratio

    16:9

  • Touchscreen

    Yes

  • Maximum Brightness

    1000 cd/sq.m

  • Contrast Ratio

    1000:1

  • Bit Depth / Color Support

    10-Bit (1.07 Billion Colors)

  • Pixels Per Inch (ppi)

    323 ppi

  • Color Gamut

    75% DCI-P3

  • Image Controls

    Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

  • Video

    1x HDMI Type A Input
    1x HDMI Type A Output
    1x BNC (3G-SDI/HD-SDI) Input
    1x BNC (3G-SDI/HD-SDI) Output

  • Embedded Audio

    HDMI
    SDI

  • Audio

    1x 3.5 mm Headphone Output

  • Built-In Speaker

    None

  • Power

    1x Barrel Input

  • Other I/O

    1x USB 2.0 (Micro-USB) Input

  • Card Slot

    1x SD

  • Wi-Fi

    None

Format Support

Jump to...
  • Video Format

    HDMI (10-Bit):
    UHD 4K: 30/29.97/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 120/119.88/100/60/59.94/50
    720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    576p: 200/100/50
    480p: 240/239.76/120/119.88/100/60/59.94
    480i: 240/239.76/120/119.88/100/60/59.94
    576i: 200/100/50

  • Video Format (Contd.)

    SDI (10-Bit):
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50/25
    480p: 60
    576i: 50
    480i: 59.94

  • DC Input Power

    12 to 15 VDC at 2.5 A

  • Battery Type

    1x L-Series (Interchangeable Mount)

  • Power Consumption

    17.3 W

Mounting

Jump to...
  • Mounting

    4x 1/4"-20 Female

Environmental

Jump to...
  • Certifications

    CE, FCC, IC, RoHS, as per Manufacturer

  • Operating Temperature

    30 to 100 Degree F (-1 to 37 Degree C)

  • Storage Temperature

    0 to 120 Degree F (-17 to 48 Degree C)

General

Jump to...
  • Battery Info

    Required, Not Included

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

  • Material of Construction

    Aluminum

  • Dimensions (W x H x D)

    7.09 x 4.67 x 1.32" (18.01 x 11.86 x 3.35cm)

  • Weight

    26 oz (737g)

Related Articles & Videos

The Best On-Camera Monitors & External Camera Screens

The Best On-Camera Monitors & External Camera Screens

Do you need a bigger monitor for upcoming video shoots? Check out our top picks for the best on-camera monitor and external camera screen.
Read more

22 Accessories for SmallHD Indie 7 7" Full-HD 16:9 Touchscreen On-Camera Monitor

  • All Accessories (22)
  • Batteries & Power Supply (5)
  • Cables & Adapters (5)
  • Bags & Cases (1)
  • Headphones (6)
  • Brackets & Mounts (5)

About SmallHD Indie 7 7" Full-HD 16:9 Touchscreen On-Camera Monitor

FEATURED REVIEWS

great purchase

By Thomas M.

One of the best purchase I did!!!

Become a master of professional monitoring with the SmallHD Indie 7, a 7" Full-HD 16:9 Touchscreen On-Camera Monitor. This compact, lightweight on-camera monitor is designed for professionals who demand sharp, bright, and reliable monitoring solutions. The Indie 7 boasts a 7" IPS LCD with a high-resolution display of 1920 x 1200, 10-bit color processing for accurate color representation, a brightness level of 1000 nits, and a 1000:1 contrast ratio for clear, detailed visuals.

The touchscreen control and the updated SmallHD PageOS 4 firmware make the Indie 7 an invaluable asset for professionals on the move. Experience exceptional visuals and broad-ranging compatibility with this sleek, feather-light monitor. Its 10-bit, touchscreen IPS LCD display allows for clear monitoring even under bright daylight conditions.

The Indie 7 is equipped with HDMI and 3G-SDI ports for both input and output, supporting video reception of up to UHD 4K30 via HDMI. The monitor is thoughtfully designed with four 1/4"-20 threads on the sides, bottom, and back, providing a variety of mounting options. A 3.5mm headphone jack is also included, allowing you to monitor the audio transmitted through the HDMI or 3G-SDI connections.

The intuitive SmallHD PageOS 4 operating system enables you to activate and save pages of various monitoring tools and focusing aids with just a tap. This updated system features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements. It also helps to organize and save customized function and settings pages, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and more.

The Indie 7 offers flexible powering options, including a barrel input or the included L-series battery plate. You can also use a separately available Gold mount or V-mount plate. The monitor includes an SD card slot for importing custom 3D LUTs and a micro-USB port for display upgrades. The durable aluminum chassis ensures the monitor can withstand the rigors of professional use.

Take advantage of a range of advanced display tools, including pixel zoom, customizable aspect ratios, DSLR scale, anamorphic de-squeeze, manual and auto image flip and rotation, cross conversion, adjustable intensity peaking, customizable false color and zebra, customizable waveform, vectorscope, RGB parade, histogram, image capture with a dedicated button and image gallery, custom LUTs, LUT import via SD card or USB storage device, image overlay with opacity slider and blink setting, and audio meters for up to 8 channels.

The SmallHD Indie 7 Touchscreen On-Camera Monitor is the ultimate tool for professionals seeking a lightweight, daylight-viewable, and versatile monitoring solution. With its intuitive PageOS 4 operating system, flexible powering options, and advanced display tools, it provides a seamless monitoring experience on set or in the field. Elevate your monitoring capabilities with the SmallHD Indie 7.

SmallHD Indie 7 7" Full-HD 16:9 Touchscreen On-Camera Monitor Features

  • Ultra-bright 1000 nits, 10-bit IPS LCD Panel for pristine daylight visibility
  • Intuitive 7-inch 1920x1200 Touchscreen Display for effortless navigation
  • Seamless HDMI and 3G-SDI Input & Output capabilities
  • Support for UHD 4K30 Video Input via HDMI for crisp visuals
  • Advanced Customizable Frame Guides for precision framing
  • State-of-the-art High-Resolution Scopes & Waveforms for monitoring signals
  • Built-in Exposure Assist to prevent overexposure
  • Innovative Focus Assist & Peaking Tools for enhanced accuracy
  • Import Custom 3D LUTs via SD card slot for tailored visuals
  • Teradek RT Overlay for integrating lens data
  • Capture & Overlay Images for quick references
  • Robust L-Series Battery Plate with SmallHD PageOS 4
  • Cross Conversion between HDMI to SDI and SDI to HDMI
  • Multiple 1/4"-20 Threads for flexible mounting options
  • 3.5mm Headphone Output for audio monitoring
  • In-built Pixel Zoom with 2x and 4x pinch-zoom
  • Durable Aluminum Chassis for lasting ruggedness
  • SD Card Slot & Micro-USB Input for expandable storage and software updates
  • Audio Meters supporting up to 8 channels for multi-channel audio
