Used SmallHD Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor

SKU: US1980578 MFR: 16-0527
$1,618.00
New: $2,249.00
Used Savings: $631 (28%)
OR
Earn VIP Reward Points

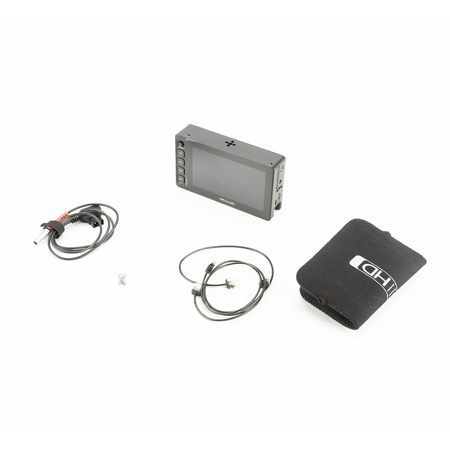

What`s in the box:

  • SmallHD Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor
  • 36" D-Tap to 2-Pin Power Cable
See more

Key Features

  • Experience superior clarity with this SmallHD 5" Full HD on-camera monitor.
  • Achieve perfect focus with built-in focus assist & peaking tools on this monitor.
  • Enjoy vibrant visuals with the ultra-bright 3000nits touchscreen display.
  • Connect seamlessly using HDMI and 3G-SDI inputs/outputs for video monitoring.
  • Power your SmallHD monitor reliably with a 2-pin locking power input.
  • Customize your display with 3D-LUTs for precise color grading on set.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

SmallHD Ultra 5 Specifications

Environmental

Environmental

Jump to...
  • Mount Points

    6x 1/4"-20 Mounting Points

Display

Jump to...
  • Panel Type

    Touch-Screen

  • Display Size

    5" (12.7cm)

  • Resolution

    1920 x 1080

  • Aspect Ratio

    16:9

  • Brightness

    3000nits

  • Backlight Type

    Edgelit

Input Signal

Jump to...
  • 3G-SDI Input Types

    1x 3G-SDI

Output Signal

Jump to...
  • HDMI Output Types

    1x HDMI 2.0 (4Kp30)

Connector Type

Jump to...
  • SDI

    1x 3G-SDI (In)
    1x 3G-SDI (In/Out)

  • HDMI

    1x HDMI 2.0 (4Kp30) (In)
    1x HDMI 2.0 (4Kp30) (Out)

  • Audio

    1x 3.5mm Stereo Headphone Jack

Data I/O

Jump to...
  • Connector Type

    1x RJ45 Ethernet

  • Storage Media

    1x SD Card Slot

  • USB

    1x Micro USB
    1x Locking USB

  • Input

    2-pin Locking Power Input (10-34V DC, 2.1A)

Software

Jump to...
  • Pixel Zoom

    Yes

  • Focus Assist

    Yes

  • Peaking

    Yes

  • False Color

    Customizable False Color Overlays

  • Waveform

    Customizable 4K Waveform with Region of Interest Highlighting (Coming Soon)

  • Custom LUTS

    17pt 3D-LUT on Output/Input
    33pt 3D-LUT on Output/Input

General

Jump to...
  • Material

    Aluminum

  • Compatibility

    Ultra Clear Screen Protector for Smart 5 Monitors
    Ultra Matte Screen Protector for Smart 5 Monitors

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

About SmallHD Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor

If you're seeking a high-quality, durable, and innovative solution for your on-camera display needs, the Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor is the answer. This user-friendly and reliable monitor is the epitome of advanced technology, designed to revolutionize your filming experiences.

The Ultra 5 Touchscreen Monitor offers a luminous display with 3000 nits brightness, making it perfect for both indoor shoots and sun-drenched outdoor filming. Its 5-inch, 1920 x 1080 touchscreen LCD delivers a sharp, clear image, enhanced by 10-bit 4:2:2 Rec. 709 color processing. Whether you're focus pulling or conducting image analysis, this monitor ensures a brilliant viewing experience.

This on-camera monitor isn't just about visuals; it's a hub of connectivity. It's equipped with both HDMI and 3G-SDI inputs/outputs, physical control buttons, and the renowned PageOS 5 user interface. This ensures seamless compatibility and functionality, whether you're navigating through settings on a cold shoot or tweaking camera controls.

The Ultra 5 Touchscreen Monitor boasts 10-bit 4:2:2 DCI-P3 color precision on its LCD panel, complemented by the advanced PageOS 5 toolset. This offers features like EL Zone Exposure Assist, waveform, and false color. With four 1/4"-20 mounting threads on all sides, a 2-pin power input for efficient energy management, and simplified camera control via its USB and Ethernet ports, this monitor is designed for flexibility and durability.

The Ultra 5 offers a range of advanced display tools, including pixel zoom options, customizable aspect ratios, anamorphic de-squeeze capacities, and enhanced focus assist tools. It also offers cross-conversion capabilities between HDMI and SDI, and flexible image management with auto and manual flips & rotations.

Designed for both hobbyists and professionals, the Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor is more than just a product; it's an experience. It stands as a testament to what modern technology can achieve, promising to be a valuable addition to any filmmaker's toolkit.

SmallHD Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor Features

  • 3000 cd/sq. m brightness on a 5" daylight-viewable touchscreen
  • Optimal 10-bit 4:2:2 DCI-P3 color representation on the LCD panel
  • Comprehensive HDMI and 3G-SDI inputs/outputs
  • Ergonomic physical buttons for all-weather usage, even with gloves
  • Access to the PageOS 5 toolset: EL Zone Exposure Assist, waveform, false color, and more
  • Quadruple 1/4"-20 mounting threads on all sides for versatile setup
  • Efficient 2-pin power input method
  • Multiple camera control options: RED via micro-USB and ARRI/Sony VENICE via Ethernet
  • Durable aluminum chassis built for longevity
  • Pixel zoom capabilities: 2x, 4x with intuitive pinch-zoom
  • Multiple aspect ratios, including preset and customizable options
  • DSLR scale compatible with popular models like Canon 5D Mk II and 7D
  • Array of image display tools: flip, rotation, cross conversion, and more
  • Custom LUTs and LUT import features for personalized visual aesthetics
  • Audio metering for up to eight channels, ensuring accurate sound integration
