Aluminum Alloy, Nylon
SmallHD FOCUS 7
Top: 1 x 1/4"-20
Bottom: 1 x 1/4"-20
Multiple 1/4"-20 and 3/8"-16 Threads
Multiple 3/8" ARRI-Style Accessory Threads
1 x NATO Rail
2 x Strap Holes
7.55 x 5.43 x 1.16" (192 x 138 x 29.5mm)
8.64 oz (245g)

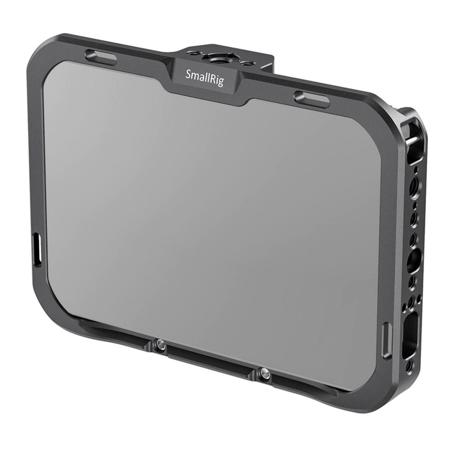

SmallRig Monitor Cage with Sun Hood for SmallHD FOCUS 7 CMS2470 is designed to provide all-around protection and accessory mounts for monitor. The cage secures to the monitor via a 1/4"-20 screw on each side to prevent twisting. Multiple 1/4''-20 and Arri 3/8''-16 threads are provided for accessory attachment such as Magic Arm 2070 and 2115. The bottom features a NATO rail for NATO clamp compatible accessories to quick release your setup, such as Magic Arm 2071 and Monitor Mount 2256.
There are three 1/4"-20 threads on the back allows for attaching Battery Plate 1846 or Wireless Receiver Plate 2107. Dedicated sun hood are included to provide glare protection when shooting outdoor. Optional HDMI/SDI Cable Clamp BSC2333 can be used to secure the cable. The right side features a 1/4"-20 threaded hole with two locating holes allows for mounting the original SmallHD tilt arm for angle adjusting.
