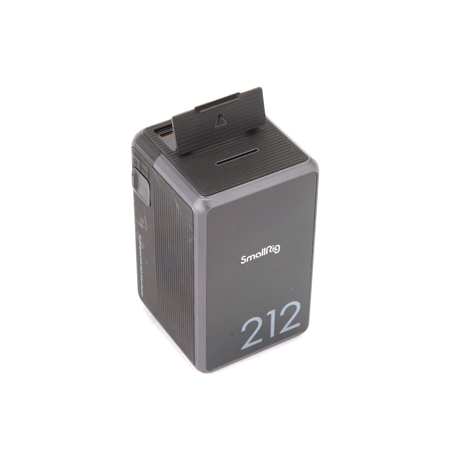

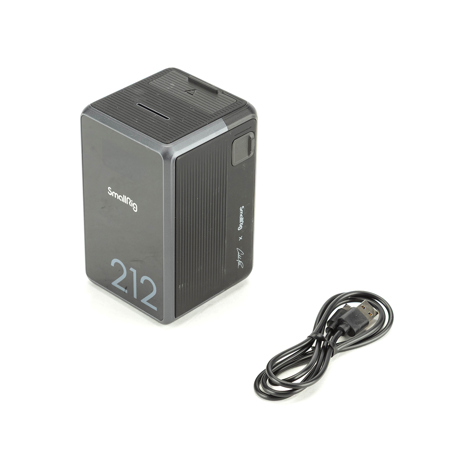

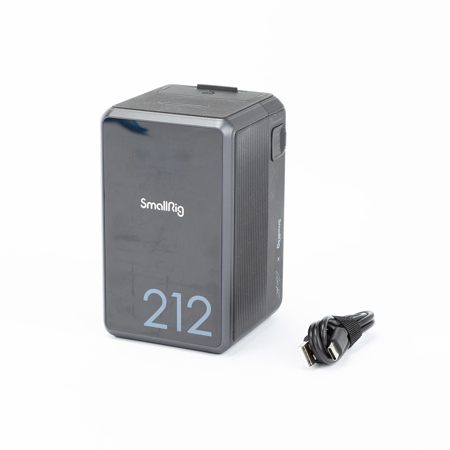

Used SmallRig x Caleb Pike VB212 212Wh mini V-Mount Rechargeable Lithium-Ion Battery

SKU: VDXSR4293

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

SmallRig VB212 Specifications

  • Material

    Aluminum Alloy, Silicone, TPU, PC V0

  • Compatibility

    Mirrorless camera, video camera, camera, monitor, follow focus, image transmitter, LED video light, mobile phone, tablet, laptop, etc.

  • Capacity

    14.76V, 14.4Ah, 212.544Wh

  • Rated Power

    Output: 212W
    Input: 140W

  • Input

    USB-C1 / USB-C2: 140W (Max.)
    D-Tap1: 8A (Max.)
    BP: 10A (Max.)

  • Output

    USB-C1 / USB-C2: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A, 28V / 5A (Max.)
    USB-A: 5V / 3A, 9V / 3A, 12V / 2.5A (Max.)
    BP: 14.76V / 19A (Max.)
    D-Tap1: 14.76V / 10A (Max.)
    D-Tap2: 14.76V / 6A (Max.)
    8V-OUT: 8V / 3A (Max.)
    12V-OUT: 12V / 3A (Max.)

  • Charging Protocol

    USB-C1 / USB-C2: PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
    USB-A: QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A

  • Cutoff Voltage

    11.2V

  • Discharging Operating Temperature

    5 Degree F - 140 Degree F (-15 Degree C - 60 Degree C)

  • Charging Operating Temperature

    32 Degree F - 122 Degree F (0 Degree C - 50 Degree C)

  • Optional Charging Method

    BP port charger, 16.8V D-Tap charger, USB-C

  • Certification

    FCC, CE, RoHS, ISED, PSE, RCM

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    5.1 x 3.3 x 3.1" (130 x 83 x 80mm)

  • Weight

    2.96 lbs (1.34kg) (+/- 10g) (Including Charging Cable)

About SmallRig x Caleb Pike VB212 212Wh mini V-Mount Rechargeable Lithium-Ion Battery

Power your Gear Anywhere

SmallRig VB99 Pro mini V Mount Battery 4292 is about 70% the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / PPS etc.), bi-directional 100W (Max.) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Such interfaces as D-tap / USB-C / USB-A / 8V-OUT / 12V-OUT / BP electrode are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / LED video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and a TFT digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which is rechargeable and stable, and meets MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards. Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC and features durable, Scratch-resistant PC and acrylic cover on the front, with a TFT color screen displaying battery status clearly and accurately. Overall, this item is safe and powerful enough for you to capture every moment without burden!

  • BMS intelligent chip supports 100W (Max.) fast charging, fully charged in 2.5 hours
  • Imported top-class large-capacity LG battery cell endures repeated charging and discharging, safe and stable
  • Highly integrated design, about 70 percent the size of a normal V-mount battery, lighter and more portable
  • Interfaces: 2 USB-C, 1 D-Tap, 1 USB-A, 1 8V-OUT, 1 12V-OUT, each with a shunt design to allow simultaneous USB-C and USB-A fast charging
  • Aluminum alloy and fireproof PC, sturdy and drop-proof
  • Durable, Scratch-resistant PC and acrylic cover on the front
  • TFT color screen displays status clearly and accurately

Key Features

  • Power your camera with this SmallRig 212Wh V-Mount battery for extended shooting times.
  • Enjoy fast USB-C charging with this rechargeable lithium-ion battery, up to 140W input!
  • This high-capacity V-Mount battery is universally compatible with cameras, monitors & more.
  • Get reliable power for your professional video shoots with this SmallRig V-Mount battery.
  • The affordable SmallRig VB212 battery offers a compact design without sacrificing power.
  • This long-lasting lithium-ion battery supports multiple outputs, including D-Tap and USB-A.
