BNC Type x 4
Video: 1.0 Vp-p, 75 Ohm, Sync negative
DIN Type x 4
Y: 1.0 Vp-p, 75 Ohm, Sync negative
C: 0.286 Vp-p at burst, 75 Ohm (NTSC)
C: 0.3 Vp-p at burst, 75 Ohm (PAL)
D-Sub Shrink 15pin Type x2 (Female)
BNC Type x1
Video: 1.0 Vp-p, 75 Ohm, Sync negative
DIN Type x 1
Y: 1.0 Vp-p, 75 Ohm, Sync negative
C: 0.286 Vp-p at burst, 75 Ohm (NTSC)
C: 0.3 Vp-p at burst, 75 Ohm (PAL)
D-Sub Shrink 15pin Type x2 (Female)
BNC Type x 2
Sync: 0.286 Vp-p, 75 Ohm, Sync negative (NTSC)
Sync: 0.3 Vp-p, 75 Ohm, Sync negative (PAL)
C: 0.286 Vp-p at burst, 75 Ohm (NTSC)
C: 0.3 Vp-p at burst, 75 Ohm (PAL)
IEEE 1394 6pinx4
IEC 61883-2 equiv.
(SD Video) 8 bit
Y: 13.5MHz
R-Y/B-Y: 6.75MHz
NTSC: 0 to 4.2MHz +1dB - 3dB
PAL: 0 to 4.8MHz +1dB - 3dB
50 dB or more (Composite Y)
Less than 50ns
Within 50 ppm
XGA 60Hz (VESA DMT1024x768 60Hz)
XGA 75Hz (VESA DMT1024x768 75Hz)
WXGA 60 Hz (VESA DMT1280x768 60Hz)
SXGA 60Hz (VESA DMT1280x1024 60Hz)
SXGA 75Hz (VESA DMT1280x1024 75Hz) Input Only
IEEE 1394 S400 6pin Type x 2
HDD IF: SBP2
DV
AVI (DV-AVI)
Video: SD Video Inputs / PGM
Audio: Inputs(Stereo) / PGM Audio(Stereo)
XLR/TRS Combo Type x 2
Ref. Level: +4 dBu, -20 dBu, -44 dBu / Mic. Power: +48 V
TRS Type (Balanced) x 4
Ref. Level: +4 dBu, -20 dBu, -44 dBu
Pin x 2, Ref. Level: -10 dBu
TRS Type x 2, Ref.: +4 dBu, Impedance: 150 Ohm
Pin Type x 2, Ref.: -10 dBu, Impedance: 470 Ohm
TRS Type x 2, Ref.: +4 dBu, Impedance: 150 Ohm
TRS Type x 2, Ref.: +4 dBu, Impedance: 150 Ohm
1/4" Stereo Phone Jack Type x 1
70mW x 2, Impedance: 47 Ohm
D-Sub 9-pin Type (Female) / Original Parallel I/O
48kHz x128 over sampling (A/D)48kHz/32kHz(DV IN)
24 bit (A/D, D/A), 32/40bit (DSP)
20Hz to 20kHz +0.5dB to - 2dB
0.1% or less
90 dB or more
RJ-45 Type x 1, 10 base-T/100 base-TX
USB A Type x 2, USB equiv.
D-Sub Shrink 15 pin (Female), 1280 x 800 60 Hz
D-Sub 9 pin (Male), RS-232C
D-Sub 15 pin (Male), Original Parallel I/O
Memory Stick Slot
DIN 8pin Type x 1 / Sony VISCA camera commands are supported.
15.4" (viewable area, measured diagonally)
High Brightness LCD, 1280 x 800 60 Hz
Built-In Speaker x 2 Size: 20x40(mm)
Real Video 9, Real Audio 8
Helix DNA Server
rtsp (Streaming), UDP, TCP, HTTP (Transport)
44.1kHz
AWS-G500:160x120, 240x180, 320x240
AWS-G500HD:212x120, 320x180, 428x240
Compression Scheme: Variable Bit Rate
Preference: Average (Max. Bit Rate) 34kbps (56kbps) / 50kbps (64kbps) / 150kbps (180kbps) /
225kbps (256kbps) / 350kbps (700kbps) / 450kbps (900kbps) / 700kbps (1400kbps)
15fps (Typical)
10 seconds or more (inc. player's minimum buffering delay)
34, 50, 150kbps: Up to 20 / 225, 350kbps: Up to 10 / 450, 700kbps: Up to 5
AC 100-240 V, 50/60 Hz
AC 90-260 V, 47/63 Hz
160 W
42 to 104 °F (5 to 40 °C)
16-3/4 x 4-1/2 x 14 inches (424 x 114 x 354 mm)
Approximately 17 lbs 10 oz (8.0 kg)
Sony 1 year parts & 90 day labor warranty

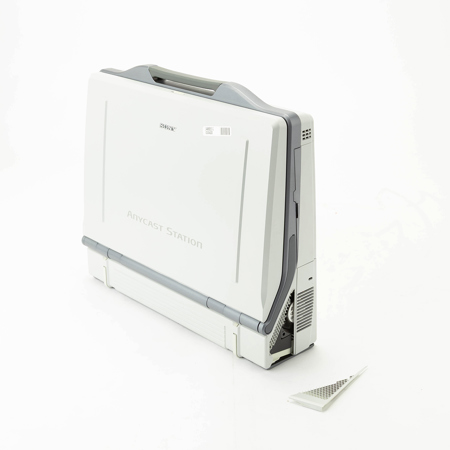

The Sony AWSG500 is a powerful content creation tool for live event programming. Comprises a high-quality video switcher, an audio mixer, a large LCD display and a streaming encoder and server. The AWS-G500 provides a comprehensive set of AV and IT inputs, both Standard and High Definition, which include analog composite, S-video, SDI (optional), HD Analog Component (optional) including 1080i and 720p, DV input and balanced audio as well as computer RGB inputs. The unique processing of the Anycast Station system allows live switching between these video and computer sources without the use of external line converters or degradation in picture quality.
The unit is delivered in a standard configuration which includes two (2) BKAW-570 SD Video Interface module and one (1) BKAW-550 PC RGB Video Interface module. These modules, as well as the BKAW-580 Serial Digital Interface Module and the BKAW-560 HD Analog Component Interface Module, are also available separately as optional accessories, allowing the user to reconfigue the unit to suit their particular application.
