Sony BRC-H900 Specifications

  • Tilt Angle

    -30 to +90 degrees

  • Tilt Speed

    0.22 to 60 degrees/sec

  • Analog Output

    RGB / Y/Pb/P(D-sub 15-pin), Y/C, Composite

  • Angle of View (H)

    59.6 degrees (Wide End)

  • Backlight Compensation

    On/Off

  • Built-In Video Output

    SDI (HD/SD Selectable)
    D-sub 15 pin: HD video out
    Y/Pb/Pr or RGB, HD, VD or SYNC
    Y/C
    Composite

  • CCD Effective Pixels

    Approx. 2.07 mega pixels (CMOS)

  • Camera Control Interface

    Mini DIN 8 pin: RS-232C (VISCA In/Out), Connector plug 9 pin: RS-422 (VISCA In/Out)

  • Effective Pixels

    Approx. 2 Megapixels

  • Focal Length

    f=5.8 to 81.2 mm (F1.9 to F2.8)

  • Focus System

    Auto/Manual

  • Gain

    Auto/Manual (-3 to 24 dB)

  • Horizontal Resolution

    1000 TV lines

  • Image Device

    1/2-type Exmor 3CMOS image sensor

  • Image Flip

    On/Off

  • Minimum Illumination

    4 lx (50 IRE, F1.9, +24 dB)

  • Minimum Object Distance

    300 mm (Wide), 800 mm (Tele)

  • ND Filter

    N/A

  • Operating Temperature

    32 to 104 ½F (0 to 40 ½C)

  • Optical Image Stabilizer

    On / Off

  • Pan Angle

    -170 to + 170 degrees

  • Pan/Tilt Angle

    -170 to +170 degrees (Pan), -30 to +90 degrees (Tilt)

  • Pan/Tilt Speed

    0.22 to 60 degrees (Pan/Tilt)

  • Panel Display Resolution

    14x Optical Zoom

  • Power Consumption

    Max 28.8W (without optional cord)
    Max 34.2W (with optional cord)

  • Power Requirements

    DC: 10.8V to 13.2V

  • Preset Positions

    16 Positions

  • S/N Ratio

    50 dB

  • Shutter Speed

    1/8000 to 1/60 s or 1/8000 to 1/50 s

  • Signal System

    1080/59.94i, 720/59.94p, NTSC
    1080/50i, 720/50p, PAL

  • Storage Temperature

    -20 degrees to 60½C (-4½F to 104½F)

  • Synchronization

    Internal/External

  • Video Output

    HD: SDI (HD/SD Switchable) + D-Sub 15 pin: Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
    SD: Composite, Y/C

  • White Balance

    Auto/Indoor/Outdoor/One-push/Manual

  • Dimensions (W x H x D)

    7.8 x 10.2 x 9.4" (198 x 260 x 238mm)

  • Weight

    11 lbs (5kg)

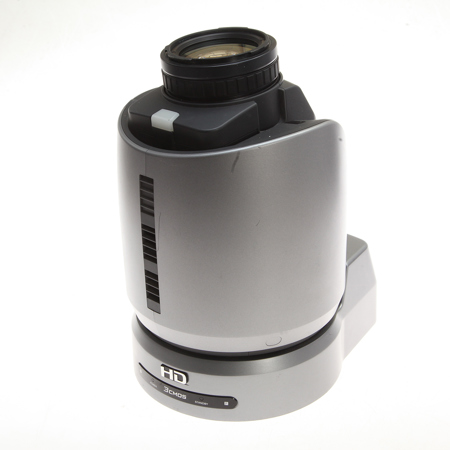

About Sony BRC-H900 HD 1/2 Type 3CMOSs P/T/Z Color Video Camera - SKU#1410538

The BRC-H900 is the top of the line, flagship model in reputable Sony's BRC series remote cameras. The adoption of both 1/2-type 'Exmor' 3CMOS sensor & 14x optical zoom lens delivers exceptionally high quality images and flexibility in operation. In addition, the feature rich color adjustment functions allow fine tuning to meet demanding needs. Besides picture quality, ceiling mountability and tally lamps on front and rear offer flexible installation and conveniences in various shooting environments. Furthermore, the HD/SD-SDI out as standard and compatibility with BRC-Z330's accessories help create a low cost solution.

Sony BRC-H900 HD 1/2 Type 3CMOSs P/T/Z Color Video Camera - SKU#1410538 Features

  • 1/2-type Exmor Full HD 3CMOS Image Sensor
  • Approximately 2 Megapixels of Effective Picture Elements
  • 1080/59.58i, 720/59.98p, NTSC / 1080/50i, 720/50p, PAL
  • 4 lx (F1.9 +24dB) Minimum illumination
  • 50dB Video S/N Ratio
  • 14x Optical Zoom
  • HD Video Output; Analog RGB/Component, SDI (HD/SD switchable)
  • SD Video Output; Composite, Y/C
  • External sync input
  • 16 position presets
  • RS-232C/RS-422 serial control (VISCA protocol)
  • Daisy chain capability (up to 7 units)
  • Image stabilization function that reduce vibration
  • Multi-function IR Remote Commander unit
  • OSD (On-Screen Display)
  • 1/2 inch Exmor: The BRC-H900 delivers greatest sensitivity (F10) and horizontal resolution (more than 1,000 TV lines in HD-SDI output) to meet the needs of high quality conscious applications. These advanced remote capabilities allow for a reduction in manned operation.
  • Superb Picture Quality: Thanks to Sony's reputable image sensor technology, the BRC-H900 remote camera delivers exceptionally high picture quality to meet demanding live production requirements. The F10 high sensibility and 50dB S/N Ratio is an advantage in low light situations.
  • Flexible Installation In addition to a typical desktop installation, all of the BRC Series cameras can be mounted to the ceiling. Also with the use of a tripod and tripod screw, these cameras are also suitable for mobile applications, such as live events.
  • Advanced Color Adjustment: The BRC-H900 is equipped with a variety of picture adjustment features, including color, gamma, black, and knee settings. These feature-rich color adjustment functions allow fine tuning to meet professional demands.
  • 14x Optical Zoom: By incorporating a 14x optical zoom lens, the BRC-H900 enables users to zoom in on small and distant objects with a high degree of accuracy.
  • 1080i, 720p, and SD Output: The BRC-H900 simultaneously delivers stunning HD images (1080i or 720p) and SD analog images. This dual-output capability allows the camera to be integrated into both an HD and SD system, which is good for users who want to upgrade to complete HD.

What's in the box:

  • Sony BRC-H900 HD PTZ Color Video Camera
  • IR Remote Commander Unit
  • AC Power Adapter
  • AC Power Cord
  • RS-422 Connector Plug
  • Item Note: Missing DC Cord Secure Connection Attachment; Ceiling Bracket A; Ceiling Bracket B; Wire Rope; 7x Screws (M3 x 8); Screws (M4 x 8)
