Sony BRC-Z330 High Definition 1/3 1CMOS PTZ Color Remote Video Camera SKU1389349

Picture does not represent the actual item
See what's in the box

See all Sony items

Used Sony BRC-Z330 High Definition 1/3 1CMOS PTZ Color Remote Video Camera

SKU: US1389349
(1)

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Sony HDC1700L Multiformat Camera System, 2/3" CCD, 1080p Resolution
undefined undefined: Picture 1 regular
Used Sony PDW700 XDCAM HD 2/3" 3CCD Camera
undefined undefined: Picture 1 regular
Used Sony HXR-NX80 Compact 1" NXCAM 4K Camcorder
undefined undefined: Picture 1 regular
Used Sony PMW-100 One 1/2.9" Exmor CMOS XDCAM HD422 Handy Camcorder
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2013-04-27T21:00:00

Rated 5 out of 5

Great condition, lens looks amazing

Except that Adorama was closed for 1.5 weeks over the Easter break, I had a great experience with them. It just feels a bit long to be closed over a holiday season, especially for all of the churches that are in need of last minute gear.

Daniel H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sony BRC-Z330 Specifications

  • Signal System

    NTSC/PAL

  • Image Sensor

    1/3" Color CMOS

  • Number of Pixels

    2 Megapixels

  • Resolution

    1080/59.94i, 1080/50i, 720/59.94p, 720/50p NTSC, PAL

  • Lens

    18x Optical Zoom
    Focal Length: 4.6-82.8mm
    F1.6-2.2

  • Horizontal Angle of View

    3.3-55.1Deg.

  • Iris Operation

    No

  • Minimum Illumination

    6 Lux (50 IRE, +24dB Gain)

  • Signal to Noise Ratio

    50dB

  • Pan Angle

    +/-175Deg.

  • Pan Speed

    0.25-60Deg./s

  • Tilt Angle

    -30-90Deg.

  • Tilt Speed

    0.25-60Deg./s

  • Preset Positions

    16

  • Microphone

    No

  • Picture Control

    Gain
    White Balance
    Image Flip

  • Video Output

    Composite: BNC (x1 Output)
    Component/RGB: 15-Pin S-Sub (x1 Output)
    S-Video: 4-Pin Mini DIN (x1 Output)

  • Audio Output

    No

  • Motion Detection

    No

  • Sync System

    External: BNC

  • Control Port

    RS-232C: 8-Pin Mini DIN, VISCA (x1 Input, x1 Output)
    RS-422: 9-Pin Plug, VISCA (x1 Input, x1 Output)

  • Communication Protocol

    VISCA RS-232C, RS-422

  • Alarm I/O

    No

  • White Balance

    Auto1, Auto2, Indoor, Outdoor, One-Push, Manual

  • Power Requirements

    10.8-13.2VDC

  • Power Consumption

    18W

  • Operating Temperature

    32-104Deg.F (0-40Deg.C)

  • Storage Temperature

    -4-140Deg.F (-20-60Deg.C)

  • Dimensions (W x D x H)

    6.4 x 7.6 x 7.4" (16.1 x 19.3 x 18.6cm)

  • Weight

    4 lbs (1.9kg)

About Sony BRC-Z330 High Definition 1/3 1CMOS PTZ Color Remote Video Camera SKU1389349

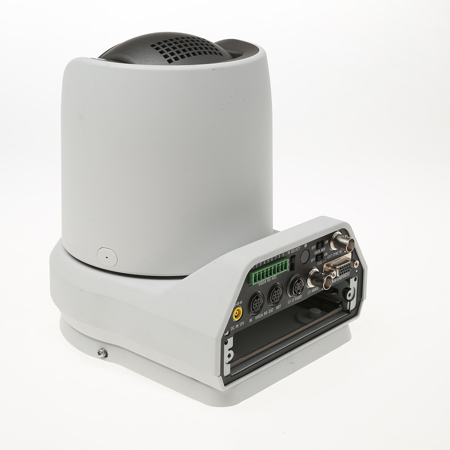

The Sony BRC-Z330 is a high definition PTZ camera featuring a 1/3" 2-MegaPixel CMOS image sensor and is designed for a wide variety of remote video applications. The unit answers today's growing demand for full HD images from robotic cameras. The camera's wide pan/tilt ranges and smooth pan/tilt/zoom capability make it perfect for deployment in locations such as houses of worship and auditoriums, as well as educational facilities, conferences and concerts halls.

Sony BRC-Z330 High Definition 1/3 1CMOS PTZ Color Remote Video Camera SKU1389349 Features

  • Compact Frame: The compact and light housing makes installation and operation quick and easy. Thanks to the adoption of a direct-drive pan/tilt mechanism, it has a quiet operation that minimizes interference with ongoing events, helping it blend in naturally with the surrounding environment
  • 18x Optical Zoom: By incorporating an 18x optical zoom lens, the BRC-Z330 enables users to zoom in on small or distant objects with a high degree of accuracy. The use of a 4x digital zoom in combination with the lens greater improves its zooming capability, up to 72x! Very Cool
  • 1080i, 720p and Standard Definition Output Capability: The camera simultaneously delivers stunning high definition images in 1080i and 720p, while still having capability for output standard definition

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony BRC-Z330 High Definition 1/3 1CMOS PTZ Color Video Camera
  • Item Note: Missing Power Supply and IR Remote Control
