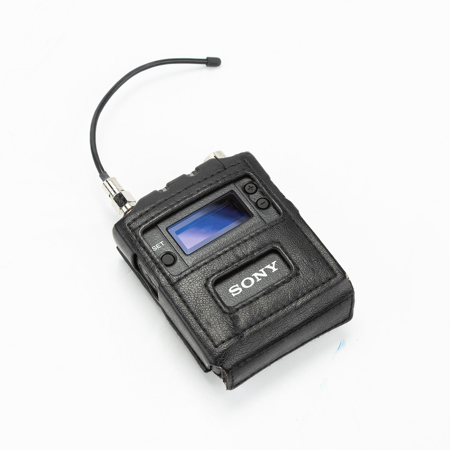

Used Sony DWT-B01/E3040 Digital Body-Pack Transmitter, 566 to 607 MHz Frequency Range
SKU: US2074262 MFR: DWTB01/E3040 B
Earn VIP Reward PointsWhat`s in the box:
- Sony DWT-B01/E3040 Digital Body-Pack Transmitter
- Softcase
See more
Key Features
- 12-1/2 hr battery life using two AA lithium batteries @ 10 mW power setting
- 5 hr battery life using two AA alkaline batteries @ 10 mW power setting
- 6-1/2 hr battery life using two AA nickel-metal hydride batteries @ 10 mW power setting
- Compact, lightweight and built with a sturdy die-cast magnesium body
- Requires use of ECM-77BC/9X lavalier microphone
- Selectable output power 1/10/50 mW
INCLUDES FREE WARRANTY
- This used item comes with a free 90-day warranty. ?
Need help? Ask our experts.
Overview
Compare
Specs
Protection
About Sony DWT-B01/E3040 Digital Body-Pack Transmitter, 566 to 607 MHz Frequency Range
The Sony DWT-B01 digital body-pack transmitter is compact, lightweight and built with a sturdy die-cast magnesium body. The E3040 model operates within a 66 MHz range, from 566 to 608 MHz and from 614 to 638 MHz. Audio input is selectable from either mic or line level. The DWT-B01 provides a choice of 1, 10 or 50 mW RF output. The transmitter operates for approximately 5 hours using two AA size alkaline batteries at 10 mW output power.
The DWT-B01 supports use of alkaline, lithium, or nickel-metal hydride batteries. Transmitter functions; including input attenuator, RF frequency selection, RF power output, Audio LCF frequency and a power sleep mode (in the transmitter) can be remotely controlled from the digital wireless receiver.
Sony DWT-B01/E3040 Digital Body-Pack Transmitter, 566 to 607 MHz Frequency Range Features
- Supports mic or line input
- Requires use of ECM-77BC/9X lavalier microphone
- Audio and metadata transmission operates on UHF-TV channels 30-40 (566 MHz to 607 MHz and from 615 MHz to 638 MHz)
- Transmitter settings can be remotely controlled from the digital wireless receiver (using 2.4 GHz IEEE802.15.4 communication technology)
- Compact, lightweight and built with a sturdy die-cast magnesium body
- 5 hr battery life using two AA alkaline batteries @ 10 mW power setting
- 6-1/2 hr battery life using two AA nickel-metal hydride batteries @ 10 mW power setting
- 12-1/2 hr battery life using two AA lithium batteries @ 10 mW power setting
- Selectable output power 1/10/50 mW
